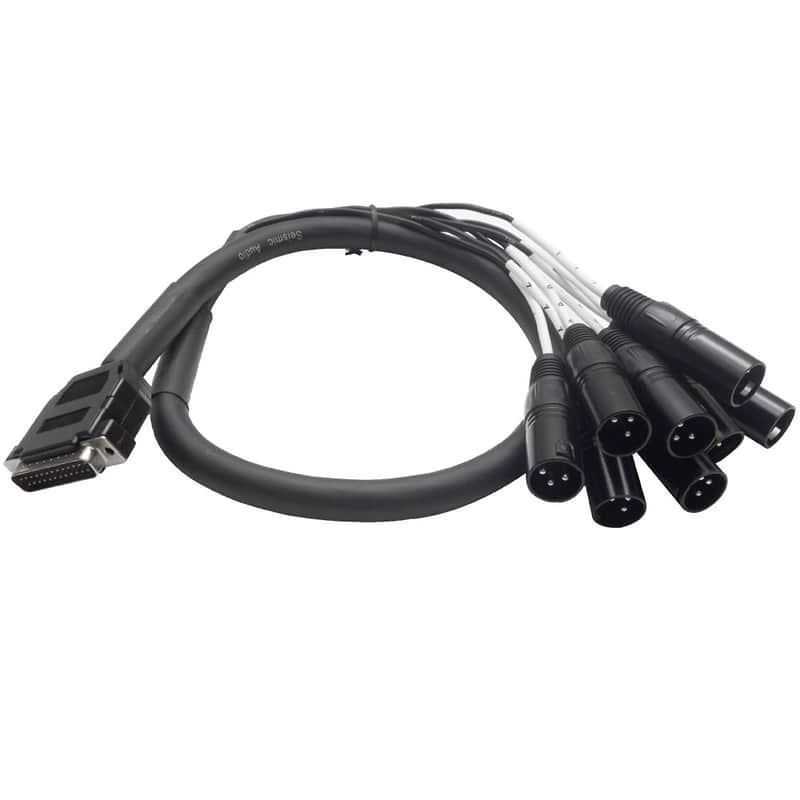

If you're dealing with rack gear that has DB25 outputs and need to get those signals to XLR inputs, the SA-DB8XM3 is exactly what you need. This is a straightforward breakout snake — one DB25 connector on one end, eight XLR male connectors on the other. No magic, no signal processing, just solid connections that do what they're supposed to do.

The 3-foot length with an 18-inch fantail gives you enough reach for typical rack-to-rack connections or getting from your patch bay to your console without creating a rat's nest of cables. You'll find this length works well in most studio setups and permanent installations where you need clean cable management. The fantail spread is sized right — not so long that you're coiling excess cable, not so short that you're fighting to make connections.

This snake follows standard audio industry DB25 pinouts, so it'll work with most professional gear from the usual suspects. However, don't assume compatibility — some manufacturers do their own thing with DB25 pinouts, especially on older or specialized equipment. Check your gear's documentation first, or you might find yourself with channels in unexpected places.

The build quality is what you'd expect from a utility cable — solid connectors, decent strain relief, and construction that'll handle regular use in a working environment. It's not going to win any beauty contests, but it'll get your signals where they need to go without adding noise or dropouts.

Bottom line: If you need to break out DB25 connections to individual XLR males for studio work or permanent installations, this snake does the job reliably at 3 feet with proper channel separation.

Technical Specifications

• Model Number: SA-DB8XM3
• Channels: 8
• Input Connector: DB25
• Output Connectors: XLR Male (8)
• Cable Length: 3 Feet
• Fantail Length: 18 Inches
• Warranty: One Year
• Recommended For: Studio patch bays, multi-track recording, modular snakes

Frequently Asked Questions

What gear does this connect to?

The DB25 end plugs into patch bays, multi-track recorders, DAW interfaces, or mixing consoles with DB25 outputs. The eight XLR males go into any equipment with XLR female inputs — mixing boards, audio interfaces, preamps, whatever you're routing to.

Will this work to get my audio interface outputs to my analog console?

Yes, if your interface has DB25 outputs. This gives you eight individual XLR connections to feed your console inputs — common setup when you're routing computer tracks through an analog board for mixing or monitoring.

Does the DB25 pinout match all equipment?

This follows standard industry DB25 pinouts, which works with most professional audio gear. But verify compatibility with your specific equipment first — some manufacturers use proprietary pinouts, especially on older or specialized gear. Better to check than discover your channels are scrambled.

Can I daisy-chain multiple snakes together?

No, these don't connect in series. Each snake needs its own DB25 output port on your source gear. But you can use multiple units to expand channel count if your equipment has multiple DB25 outputs — useful for modular setups where you need flexible routing across different racks.
