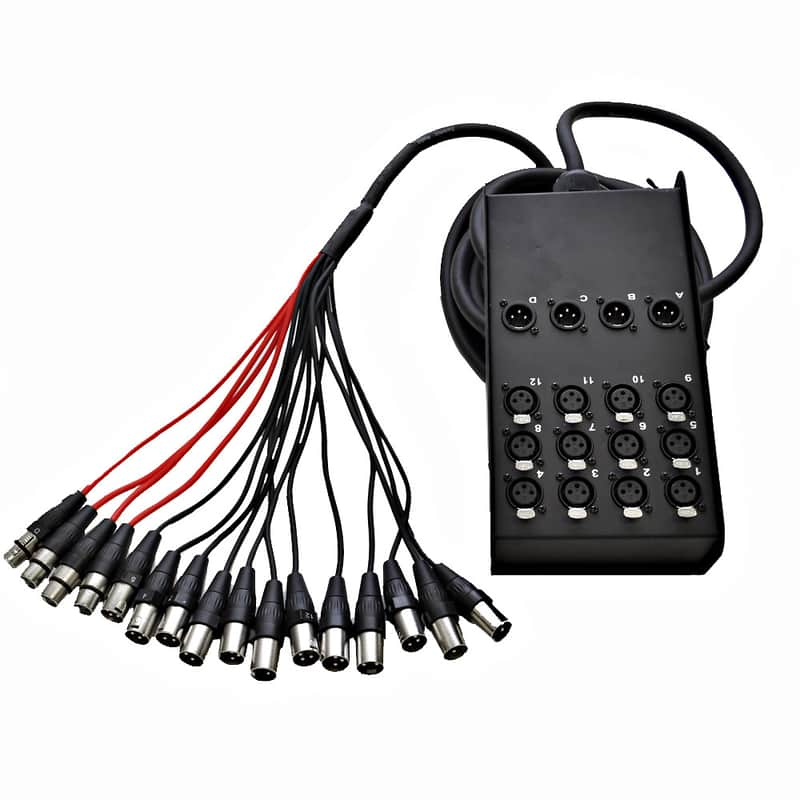

When you're setting up in a cramped venue with dim lighting and a 20-minute changeover window, the last thing you need is a tangle of individual XLR cables creating trip hazards and slowing down your load-in. This 12x4 snake eliminates that cable spaghetti problem — you run one multiccore from your stage box to FOH, and you're done.

The circuit board construction inside the steel stage box is the key difference here. Instead of hand-wired connections that can develop cold solder joints or loose connections after months of road abuse, you get factory-precision circuit board technology that maintains reliable connections show after show. The 100% individually shielded pairs reject the RF interference you'd get from cheaper alternatives, so you won't deal with buzz or hum when that radio station down the street kicks in.

Twelve XLR male sends handle your vocal mics, drum mics, and DI boxes, while four XLR female returns give you dedicated paths for stage monitors or effects sends without needing separate cables. Everything's numerically labeled and color-coded because nobody wants to play "guess the channel" in a dark venue during soundcheck. At 25 feet, it's the sweet spot for most club and small theater setups — long enough for reasonable stage depth without excess cable cluttering your performance area.

The stage box dimensions (10.75" x 5.5" x 2.75") keep it compact enough for tight stages but rugged enough to survive being stepped on during load-out. At 9 pounds, it's substantial enough to stay put but not so heavy it becomes a load-in nightmare.

**Bottom line:** If you're running 8-12 inputs regularly and need dedicated monitor sends, this snake solves the cable management problem while delivering clean, reliable signal transmission that won't let you down mid-gig.

Technical Specifications

• Model: SACB-12x4x25
• Sends: 12 XLR Male Connectors
• Returns: 4 XLR Female Connectors
• Length: 25 Feet
• Weight: 9 lbs
• Stage Box Dimensions: 10.75" L x 5.5" W x 2.75" D
• Construction: Circuit Board Technology
• Conductors: 25 gauge heavy duty
• Shielding: 100% individually shielded pairs
• Stage Box Material: Heavy duty steel
• Labeling: Numerically labeled stage box, color-coded fantail
• Warranty: One Year
• Recommended For: Bands, venues, churches needing 12+ mic channels

Frequently Asked Questions

Does this snake support phantom power for condenser mics?

Yes, all 12 send channels pass +48V phantom power without voltage drop or interference. The individually shielded conductors maintain proper phantom power delivery for condenser mics, active DI boxes, and other phantom-powered gear.

What's the real-world difference between circuit board vs. hand-wired construction?

Circuit board construction eliminates the cold solder joints and loose connections that plague hand-wired stage boxes after road abuse. You get factory-precision connections that stay reliable instead of developing intermittent problems that show up mid-gig.

Should I get this 12x4 or go with a straight 16-channel snake?

Get the 12x4 if you need dedicated returns for stage monitors or effects sends — it saves you from running separate cables. Go with a straight 16-channel if you need maximum input capacity and can handle monitor feeds separately.

Will 25 feet work for most venue setups?

This length covers most clubs, small theaters, and houses of worship without excess cable cluttering your stage. If you're regularly playing larger venues or outdoor festivals with significant throw distances, you'll want to step up to 50 or 100 feet.
