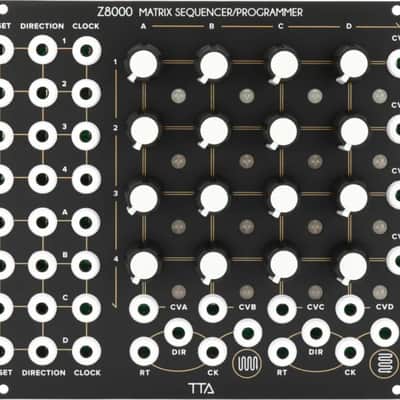

The Z8000 Matrix Sequencer is a modulation source like no other: The 16 knobs of the Z8000 are accessed by ten sequencers with their own clock, direction and reset inputs. The ten sequencers are as follows: Four 4 step CV sequencers on the horizontal.Four 4 step CV sequencers on the vertical.One 16 step CV sequencer on the horizontal.One 16 step CV sequencer on the vertical.The Z8000 can simultaneously modulate up to 10 CV parameters poly-rhythmically, with unprecedented motion complexity. One knob affects all 10 CV outputs! Imagine modifying 10 parameters from one knob. With its 30 gate and clock inputs and 10 CV outputs one can only imagine the possibilities, and all clock inputs can even be driven at audio rates! The Z8000 pairs well with the Trigger Riot and Circadian Rhythms and using it with the QuantiZer extends its capabilities as a high-precision 1V/Oct note sequencer.Introduced in 2017, a new version of the Z8000 maintains the original circuitry but adds output range adjustment switches on the back and Tiptop’s new colored look, which helps highlight the sections, on the front.

Product Features

• CV sequencer module for Eurorack
• Offers 8 x 4-step CV sequencers and 2 x 16-step CV sequencers
• 30 gate and clock inputs, 10 CV outputs
• All clock inputs can be driven at audio rates
• Output range adjustment switches on rear panel
• Depth: .59"
• Power Usage: +12V/70mA, -12V/10mA

Attributes

• Color: Black

Technical Specifications

• Type: Synth Module
• Power Supply: Requires Eurorack case and power supply
• Sequencer: 8 x 4-step CV, 2 x 16-step CV
• HP Size: 28HP
