The Delay Llama XTREME introduces new functionality and exciting features to our Delay Llama series, challenging preconceived notions of what an analog delay pedal can do. Featuring 3 x 3205 BBD chips and a thoughtful layout, the Delay Llama XTREME appeals to traditional delay users and sound explorers alike. It comes equipped with 4 presets, 800ms of max. delay time, tap tempo w/ subdivisions, hold function, kill-dry, trails (buffered) OR true bypass modes, delay time expression pedal / CV input, remote tap tempo input and remote preset selection input. It also features 4 trail effects you can get lost in for hours on end! These 4 XTREME modes (Vibrato, Tape-age, Random, Pitch-shift) are the result of us experimenting with the Delay Time and musically taming it to create inspiring trails effects. We sent the Delay Llama to the future and it finally made its way back with a taste for the XTREME! So strap in, get comfortable and ride this Llama into uncharted sonic fields.
Handcrafted analog delay with tap & presets from Jam Pedals

• Fully analog bucket chain delay with 4 presets and tap tempo
• 4 Sound Xtreme modes: Vibrato, Tape Age, Random, Pitch Shift
• Maximum delay time 800 ms
• Time (T): Sets the delay time
• Repeats (R): Sets the number of repeats
• Level (L): Sets the delay level on top of Dry signal
• Toggle switch TRLS: ON (buffered bypass) / OFF (true bypass)
• Toggle switch KD: Kill dry ON/OFF
• Toggle switch right: Tap Tempo Subdivisions (top to bottom: 8th, quarters, dotted 8th)
• Footswitch ON: Turns the pedal ON / OFF
• Footswitch Middle: MOMENTARY preset selector - LATCHING slightly prolonged press turns XTREME modes* ON / OFF
• Footswitch TAP: MOMENTARY minimum 2 consecutive stomps: Tap Tempo - LATCHING engages HOLD (oscillation) for as long as it is pressed
• Presets Recall and Save: Via the Footswitch Middle*

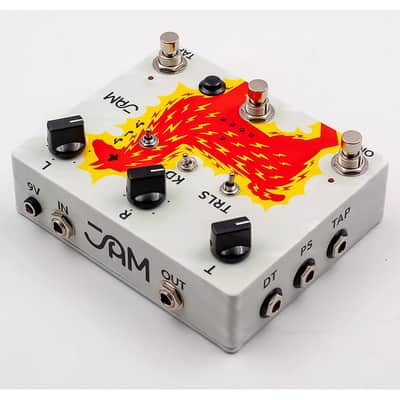

• Delay Time input (DT): Remotely control Delay Time via EXP pedal or CV controller
• PreSets input (PS): Remotely engage presets via external TRS controller
• TAP input: Remote tap-tempo device specs - TS mono Jack, Normally Open (NO) momentary switch. TRS can be used if one switching node is on Tip
• Internal trimmer (Blue rectangle) adjusts max. # of repeats
• Internal trimmer (The black one below) sets the buffered bypass’ max. trails decay
• Internal DIP switches: If both up: Expression pedal input mode is active - If both down: CV input control (mono jack) mode is active
• Output and input are in-phase
• Input impedance: 1M
• Output impedance: <1K
• True or buffered* bypass
• Power consumption: 130 mA
• Power supply: 9V DC power adapter (tip-negative)
• Dimensions: 14.9 x 12.4 x 5.6 cm
• Weight: 620 g
• Handwired in Greece

Note: Battery power is not supported

Artist Quotes:

"The Delay Llama XTREME is just ridiculously good; it's on everything I'm recording!"  David Torn
