Overview

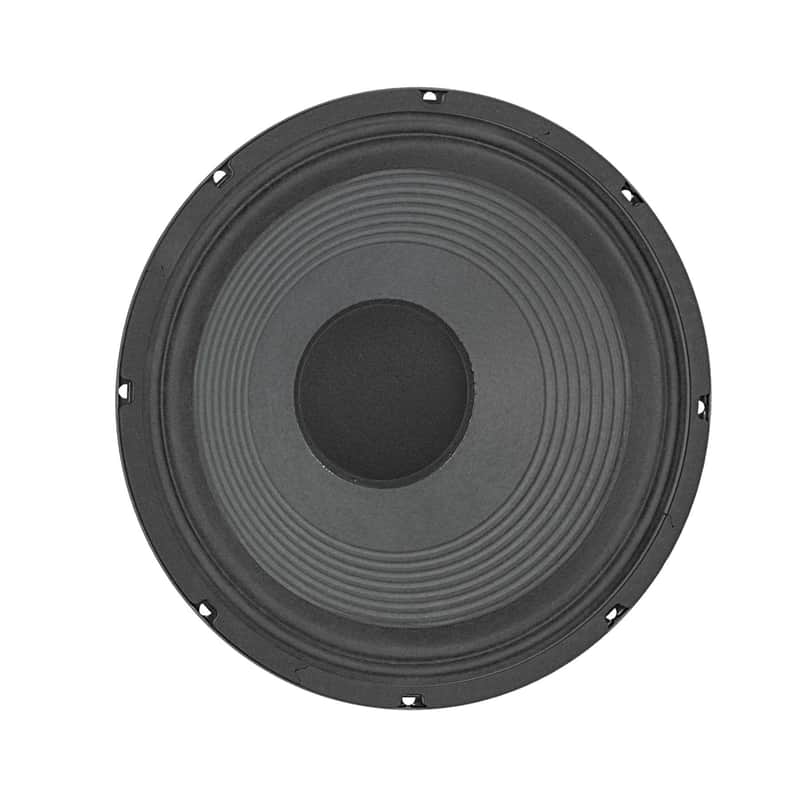

The Eminence Red White and Blues guitar speaker is the natural upgrade for the classic American amp. A versatile guitar speaker, great for southern rock or blues. Nice tight low-end, smooth midrange and top end sparkle. American cousin to The Governor.

SPECIFICATION

Nominal Basket Diameter

12", 305 mm

Nominal Impedance*

8 Ω

Power Rating*

Program Power

N/A

Watts

120 W

Resonance

110 Hz

Usable Frequency Range

80 Hz - 4.3 kHz

Sensitivity*

101 dB

Magnet Weight

38 oz.

Gap Height

0.312", 7.9 mm

Voice Coil Diameter

1.75", 44 mm

THIELE & SMALL PARAMETERS

Resonant Frequency (fs)

110 Hz

DC Resistance (Re)

6.42 Ω

Coil Inductance (Le)

0.43m H

Mechanical Q (Qms)

7.19

Electromagnetic Q (Qes)

0.89

Total Q (Qts)

0.79

Compliance Equivalent Volume (Vas)

30.8 liters / 1.09 cu.ft.

Peak Diaphragm Displacement Volume (Vd)

44.7 cc

Mechanical Compliance of Suspension (Cms)

0.07 mm/N

BL Product (BL)

12.3 T-M

Diaphragm Mass Inc. Airload (MMs)

30 grams

Efficiency Bandwidth Product (EBP)

124

Maximum Linear Excursion (Xmax)

0.8 mm

Surface Area of Cone (Sd)

532.4 cm2

Maximum Mechanical Limit (Xlim)

N/A

MOUNTING INFORMATION

Recommended Enclosure Volume

Sealed

Acceptable

Vented

Acceptable

Driver Volume Displaced

0.071 cu.ft. / 2 liters

Overall Diameter

12.03", 305.6 mm

Baffle Hole Diameter

11.07", 281.2 mm

Front Sealing Gasket

Yes

Rear Sealing Gasket

Yes

Mounting Holes Diameter

0.25", 6.4mm

Mounting Holes B.C.D.

11.59", 294.4mm

Depth

5.1", 129.5 mm

Net Weight

8.2 lbs, 3.72 kg

Shipping Weight

10.1 lbs, 4.58 kgs

MATERIALS OF CONSTRUCTION

Coil Construction

Copper voice coil

Coil Former

Polyimide former

Magnet Composition

Ferrite magnet

Core Details

Non-vented core

Basket Materials

Pressed steel basket

Cone Composition

Paper cone

Cone Edge Composition

Paper cone edge

Dust Cap Composition

Zurette dust cap
