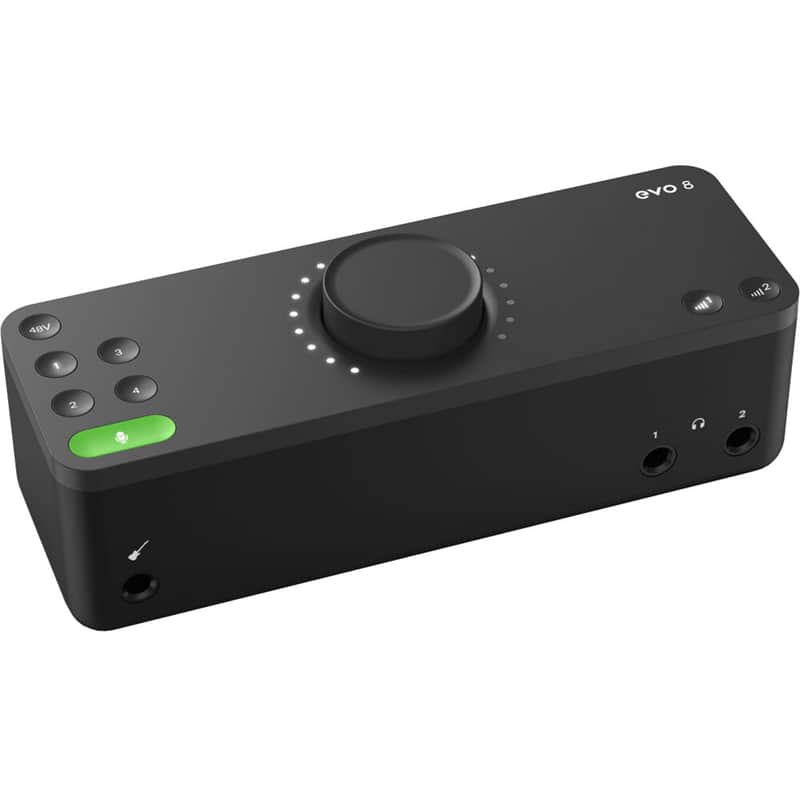

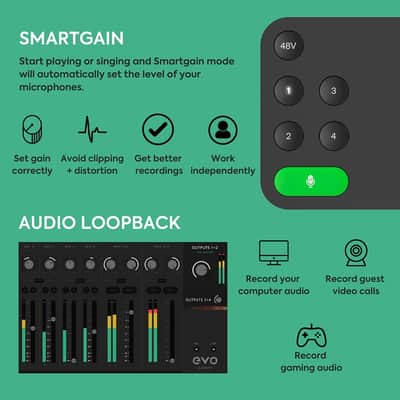

The EVO 8's large knob provides convenient control of levels for your monitors, headphones, and channels while the multifunction buttons enable easy muting of the inputs and headphone outs. The audio loopback function makes it possible to record computer audio at the same time as the inputs—a welcome feature for podcasters who need to capture remote guests via Skype or other VoIP apps.

DAW software, virtual instruments, samples, cabinet simulation, and more are included to get you started on your path toward achieving polished productions. Because the unit is bus-powered, you can power it straight from your computer; you never need to worry about accidentally forgetting or unplugging a power supply. It includes two USB cables (USB Type-C and USB Type-A) to allow proper connection to virtually any computer.

Building on Audient's 20+ years of audio design experience, the EVO 8 gives you premium audio quality—58 dB gain range, -128 dB mic pre EIN, and 113 dB dynamic range—on your desktop; something that benefits content creators, producers, and instrumentalists in home studios or on the go.

Record panel podcasts or several musicians through the warm, accurate EVO preamps and high-performance AKM converters. The EVO 8 features four XLR-1/4" combo mic/line inputs and a 1/4" Hi-Z JFET instrument input to handle a variety of sources from dynamic and condenser mics to electric guitars and outboard preamps.

Audient EVO 8 Specs

Form Factor
Tabletop

Display
1 x Multi-Segment LED Meter

Channels of I/O
Analog:4 Inputs / 4 Outputs at 96 kHz

Max Sample Rate/Resolution
96 kHz / 24-Bit

Number of Mic Preamps
4

Input Level Adjustment
4 x Automatic1 x Knob

Expansion Slots
None

Pad
None

Gain/Trim Range
Mic/Line/Hi-Z Inputs:58 dB

High-Pass Filter
None

Solo/Mute
Mute per Input Channel, Master

Connectivity

Analog Audio I/O
4 x Combo XLR-1/4" TRS Balanced Mic/Line Input (Pin 2 Hot)1 x 1/4" TS Unbalanced Hi-Z Input (Front Panel)4 x 1/4" TRS Balanced Line Output (Tip Hot)2 x 1/4" TRS Unbalanced Headphone Output

Phantom Power
48 V ± 4 V, Selectable On/Off (Selectable on Individual Inputs)

Phantom Power Current
10 mA per Channel

Digital Audio I/O
None

Host Connection / USB
1 x USB Type-C (USB 2.0)

USB (Non-Host)
None

Sync I/O
None

Network I/O
None

MIDI I/O
None

Wireless Connectivity
None

Performance

Frequency Response
Mic, Line Inputs:10 Hz to 40 kHz ±0.5 dBHi-Z Inputs:10 Hz to 20 kHz ±0.5 dBA/D Converters:10 Hz to fs/2 ±0.5 dBD/A Converters:10 Hz to fs/2 ±0.5 dBHeadphone Outputs:10 Hz to fs/2 ±0.5 dB

Max Input Level
Mic/Line Inputs:+16 dBuHi-Z Inputs:+10 dBu

Max Output Level
D/A Converters:+11 dBuHeadphone Outputs:+10.1 dBu (600-Ohm Load)

Headphone Output Power
45 mW into 30 Ohms (Max)52 mW into 60 Ohms (Max)20 mW into 600 Ohms (Max)

Impedance
Mic Inputs:> 3 Kilohms (Balanced)Line Inputs:> 10 Kilohms (Balanced)Hi-Z Inputs:1 Megohm (Unbalanced)Line Outputs:< 100 Ohms (Balanced)Headphone Outputs:< 50 Ohms (Unbalanced)

Dynamic Range
AD/DA Converters:113 dBAHeadphone Outputs:113 dBA

SNR
Mic/Line/Hi-Z Inputs:100 dB

THD+N
Mic/Line Inputs:< 0.0015% (1 kHz)Hi-Z Inputs:< 0.3% (1 kHz)D/A Converters:< 0.0015% (1 kHz, at -1 dBFS)Headphone Outputs:< 0.0015% (1 kHz, at -1 dBFS)

Crosstalk
Mic/Line Inputs:< -105 dBu (1 kHz)Line Outputs:< -110 dBu (1 kHz)Headphone Outputs:< -110 dBu (1 kHz)

EIN
Mic/Line Inputs:< -128 dBu

CMRR
Mic/Line Inputs:> 85 dB (1 kHz)

Digital Audio

Sample Rates
44.1 / 48 / 88.2 / 96 kHz

Sample Rate Conversion
None

Bit Depths
Up to 24-Bit

Latency

5 ms at 44.1 kHz (Dependent on Buffer Size, Input to Output)4.1 ms at 96 kHz (Dependent on Buffer Size, Input to Output)

Sync Sources
Internal

Memory Card Slot
None

Compatibility

OS Compatibility
macOS 10.7.5 or LaterWindows 7 or Later (32-Bit, 64-Bit)

Included Software
Cubase LE

Compatible Software (Not Included)
Any Core Audio (Mac) Compliant Software

Supported Drivers/API & Plug-Ins
Core Audio (Mac)ASIO

Processor Requirement
Mac:IntelPC:1.6 GHz Intel Core 2

RAM Requirements
1 GB

Mobile Device Compatibility
None

Required Hardware
Available USB 2.0 PortUSB Cable (Included)

Internet Connection
Required for Software/Driver Download

Power

Power Requirements
USB Bus Power
