Overview

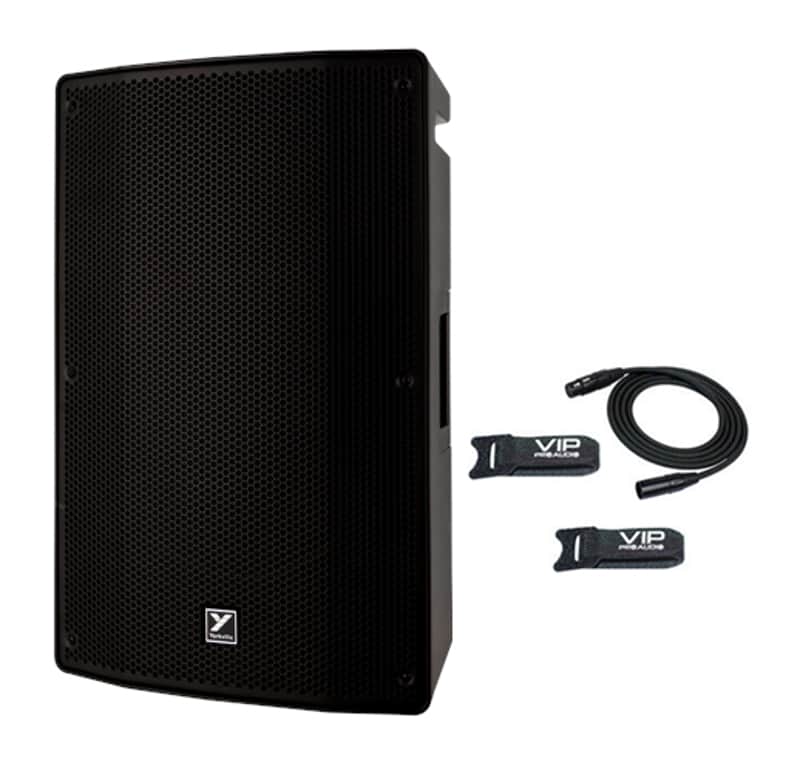

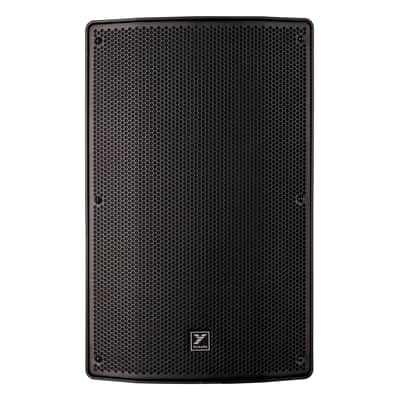

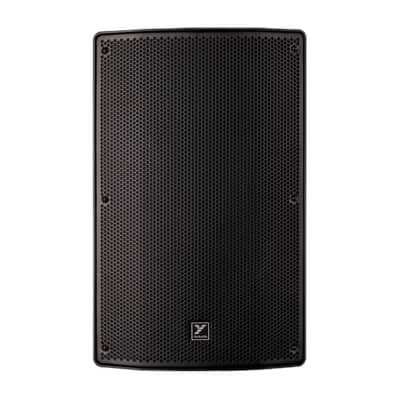

The YXL cabinets use a single driver and 90 x 60 degree horn with 1-inch throat and 1-inch compression driver. Constructed from strong Polypropylene, YXL is poised to uphold Yorkville's reputation for reliability and durability.

The cabinets can be positioned upright or used as a monitor wedge.Designed as an all-purpose speaker with the Musician & DJ in mind, each YXL cabinet features 3 channels.

The cabinet supports Bluetooth streaming and EQ pushbutton controls for Concert, Club & Monitor modes.

Features

• 1000 Watts (Peak) 500 Watts (Program)
• 15-inch woofer with 2.5-inch voice coil
• 3 Channels plus Master level
• 1-inch compression driver
• 90° x 40° HF dispersion
• Polypropelene cabinet construction
• Bluetooth streaming
• 3 performance modes (Concert, Club, Monitor)

Specifications

System Type

• Active Loudspeaker

Active or Passive

• Active

Power Rating (Watts)

• 500 Watts Program (1000 Watts Peak)

Max SPL (dB)

• 127dB Continuous

Frequency Response (Hz +/- 3dB)

• 45 - 16k (Hz +/-3dB)

Dispersion (°H x °V)

• 90 x 40

Crossover Frequency (Hz)

• 1.6kHz

HF Horn

• Integrated into Baffle

LF Driver(s)

• 15-inch (2.5-inch voice coil)

LF Power Rating(Watts)

• 450 Watts Program (900 Watts Peak)

HF Power Amplifier (Watts)

• 50 Watts Program (100 Watts Peak)

HF Amplifier Type

• Class A/B

LF Amplifier Type

• Class D

Cooling Scheme

• Speed controlled fan

Power Cable

• Yes

Power Switch

• Yes

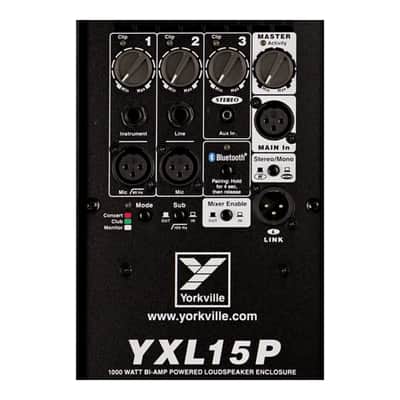

Mixer Controls

• 3 recessed dial controls

Level Controls

• x3 Chanels + Master

EQ Controls

• Push button select, Concert, Club, Monitor

Limiter

• Multiband excursion, RMS, rail

Other Controls / Features

• 100 Hz HP with Sub, Mixer IN/OUT, Stereo/Mono out, 3.5mm Aux in, BT streaming

Feet

• Rubber

Bar Handles

• 2 x Side / 1 x Back

Flying Hardware

• 2 (Top), 1 (Pullback)

Optional Flying Hardware

• Yes

Enclosure Materials

• Polypropelene, Metal grille

Baffle Material

• Polypropylene

Grille

• Powder Coated Steel with Grille Cloth

Other Details

• Rubber feet on bottom and side with the monitor Wedge

Dimensions (DWH xbackW, inches)

• 14.75 x 17 x 27.375

Dimensions (DWH xbackW, cm)

• 37.5 x 43.18 x 70.4

Weight (lbs/kg)

• 45 / 20.4

Specifications subject to change without notice
