Worng LRMSMSLR

LRMSMSLR converts stereo material with left and right channel into the mid-side format. – And vice versa. This is useful for modulating the stereo width of a signal via a VCA or for filtering center and side portions of audio material individually.

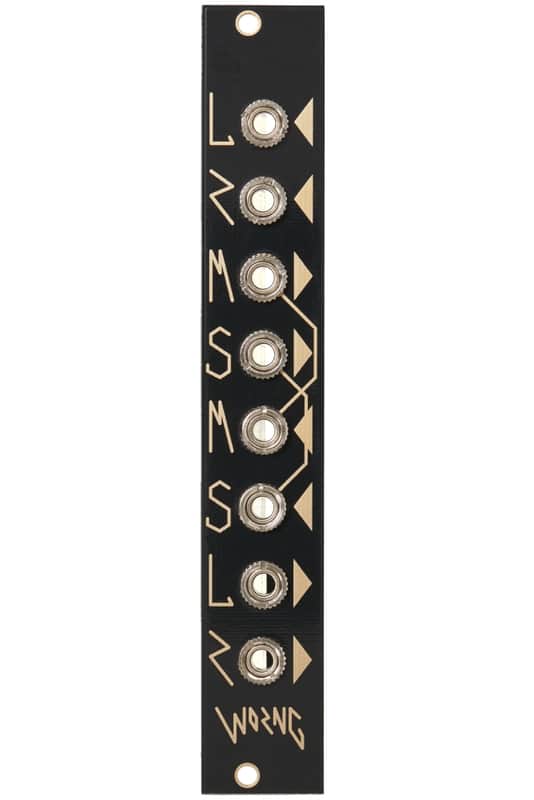

LRMSMSLR features two inputs for left and right channel. Internally, the module converts incoming signals into the mid-side format. Results are emitted via M and S outputs. The other way round, you can feed mid and side signals to the circuit and receive left and right stereo channel at the corresponding outputs.






HE: 3 TE: 4 Depth: 50 Power consumption +12V: 15 Power consumption -12V: 15
