ZETHUS-M115SM3X4 | ZETHUS Series Line Array System with One 15" Subwoofer, Four Compact 6 x 3" Full-Range PA Speakers, Black

The Sound Town ZETHUS Series ZETHUS-M115SM3X2 line array system includes:

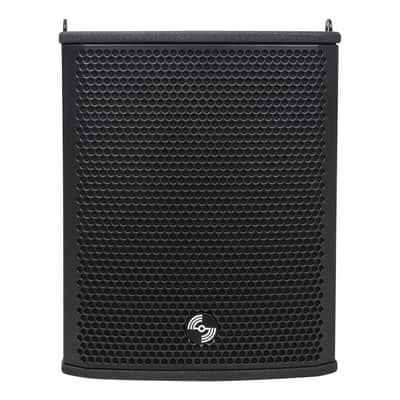

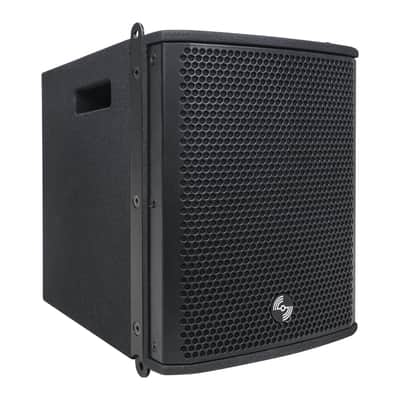

• (4) 6 x 3“ Full-Range Passive Line Array PA Speakers

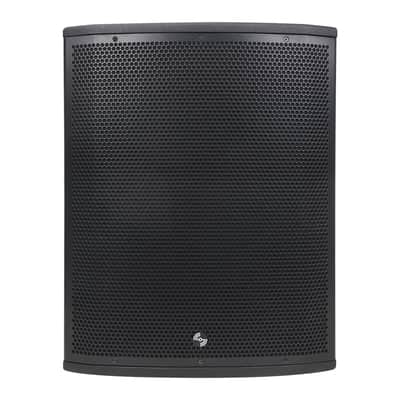

• (1) 15“ Passive Subwoofer

The ZETHUS-M115S is a 15“ subwoofer with extraordinary 700W RMS (8-ohm) power handling capability, delivering rich, solid low-frequency reinforcement. The line array PA speaker packs amazing sound and ample power handling into an ultra-compact cabinet. Each speaker comes with 6 x 3“ mid-low frequency drivers and 6 x 1” dome tweeters. Even better, with an innovative horn-free design cabinet, the line array speaker delivers outstanding sound in a wide dispersion angle without sacrificing sound pressure.

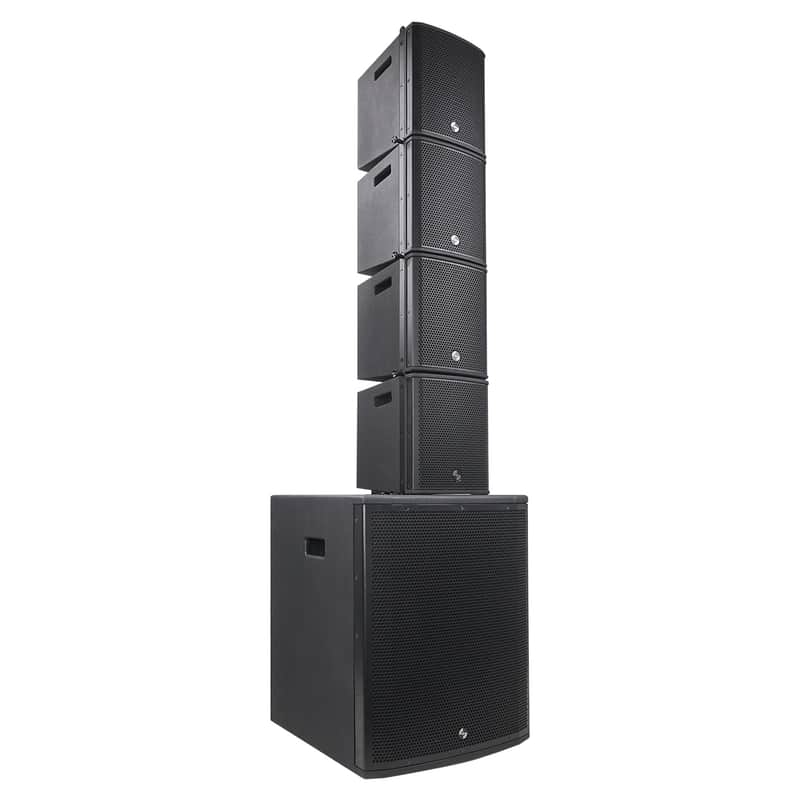

The four full range line array speakers can be quickly stacked and secured with safety handles and quick-release pins; with the mounting adaptor and sub speaker pole, they can be easily mounted on top of the ZETHUS-M115S subwoofer. Together, the line array system delivers accurate and immersive sound performance.

FEATURES

• This line array speaker system includes four 6 x 3“ full range passive line array PA speakers, one 15“ passive subwoofer (ZETHUS-M115S) and one subwoofer speaker pole and mounting adapter.
• The ZETHUS-M115S is a 15“ subwoofer with extraordinary 700W RMS (8-ohm) power handling capability, delivering rich, solid low-frequency reinforcement.
• The line array PA speaker packs amazing sound and ample power handling into an ultra-compact cabinet. Each speaker comes with 6 x 3“ mid-low frequency drivers and 6 x 1” dome tweeters. Even better, with an innovative horn-free design cabinet, the line array speaker delivers outstanding sound in a wide dispersion angle without sacrificing sound pressure.
• The four full range line array speakers can be quickly stacked and secured with safety handles and quick-release pins; with the mounting adaptor and sub speaker pole, they can be easily mounted on top of the ZETHUS-M115S subwoofer. Together, the line array system delivers accurate and immersive sound performance.
• The line array system is ideal for small to medium-sized applications including clubs, bars, restaurants, churches, schools and more.

SPECIFICATIONS

Specifications

Model   Active/Passive Passive Passive Frequency Range 110 Hz - 19 kHz 35 Hz - 180 Hz Frequency Response 100 Hz - 19 kHz 40 Hz - 180 Hz Sensitivity 98 dB 100 dB SPL Max 121 dB 127 dB Dispersion 120º x 15º (H x V) 360° x 360° Configuration 3" 2-way full-range line array 15" line array subwoofer Transducer MF: 6 x 3" driver
HF: 6 x 1" dome tweeter LF: 1 x 15" woofer Voice Coil --
--
Magnet --
--
Impedance 8Ω 8Ω Power Handling 300W RMS / 600W Peak 700W RMS / 1400W Program Input
4-Pin Speakon 4-Pin Speakon Output 4-Pin Speakon 4-Pin Speakon Cabinet Construction High-grade 100% birch plywood High-grade 100% birch plywood Flying/Mounting Bracket  (flying frame) or  (pole & adapter), compact line array hardware  (pole & adapter) compact line array hardware Finish Texture coating Texture coating Grill & Rigging Component Steel with anti-corrosion coat Steel with anti-corrosion coat Caster Board Model# , could be used but cannot be securely fastened to the subwoofer. --

Dimension & Weight

Model  (each)   Product Width (in.) 8.9" 18.1" Product Height (in.) 12.0" 22.8" Product Depth (in.) 12.8" 20.5" Product Weight (lb.) 15.7 lbs 81.5 lbs Package Width (in.) 14.6" 23.4" Package Height (in.) 11.8" 26.2" Package Depth (in.) 14.4" 21.1" Package Weight (lb.) 18.8 lbs 87.7 lbs

Warranty/Certifications

Manufacturer Warranty 1 Year
