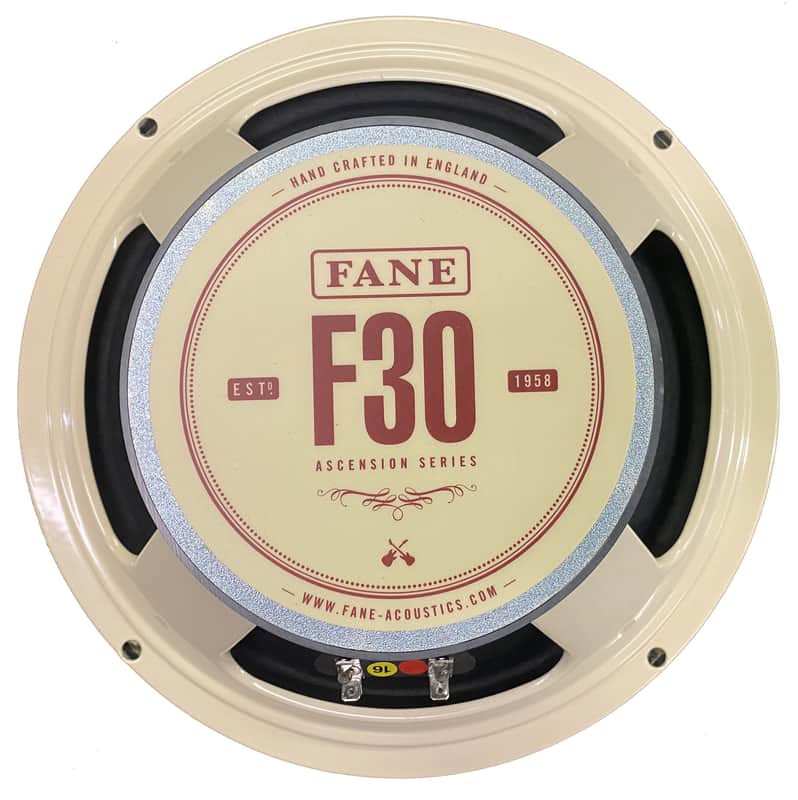

Fane Ascension F30, 8 or 16 ohm.

The Ascension F30 is a 30 watt, ceramic magnet, guitar speaker. Suitable for reproducing both American and British type sounds, it’s perfect for players seeking vintage rock tones in abundance. While remaining faithful to the Fane Ascension series tonal character, the F30 is voiced with a strong, tight crunch and low-end presence that offers powerful low-mid’s. Cutting through the mix with an attacking upper mid-range and a forward, rich and open, alnico-like, detailed top end. When played clean, tones are detailed and articulate.

The F30 can be used in 1x12 low-powered amps or in multiples for 2x12 or 4x12 medium to high-power, high gain amps.

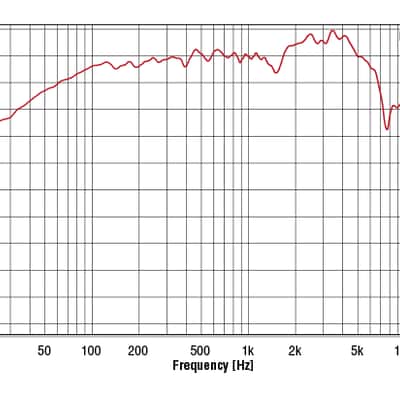

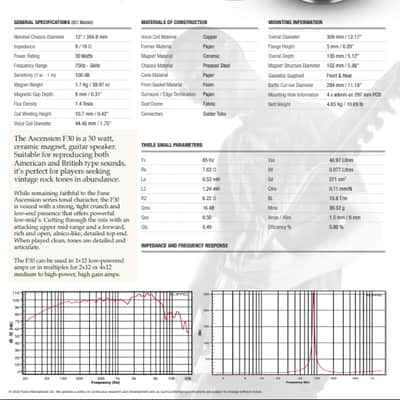

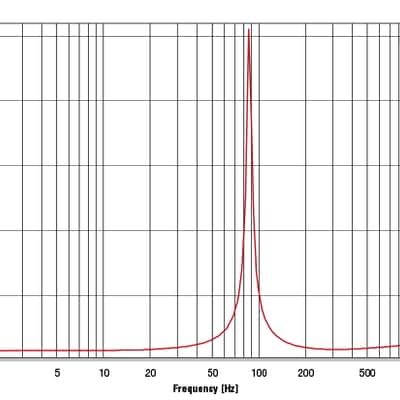

SPECIFICATIONSSeriesAscensionNominal Chassis Diameter12” / 304.8 mmPower Rating (AES)30 WattsFrequency Range75Hz - 5kHzImpedance8 / 16 ΩSensitivity100 dBMagnet Weight1.7 Kg / 59.97 ozMagnetic Gap Depth8 mm / 0.31”Flux Density1.4 TeslaCoil Winding Height10.7 mm / 0.42”Voice Coil Diameter44.45 mm / 1.75”Voice Coil MaterialCopperFormer MaterialPaperMagnet MaterialCeramicChassis MaterialPressed SteelCone MaterialPaperFront Gasket MaterialFoamSurround / Edge TerminationPaperDust DomeFabricConnectorsSolder TabsOverall Diameter309 mm / 12.17”Flange Height5 mm / 0.20”Overall Depth130 mm / 5.12”Magnet Structure Diameter152 mm / 5.98”Gasket(s) SuppliedFront & RearBaffle Cut-out Diameter284 mm / 11.18”Mounting Hole Information4 x ø8mm on 297 mm PCDNett Weight4.85 Kg / 10.69 lb
