Fane Ascension F25 8 or 16 ohm

Builders? Retailers? Message us for quantity pricing.

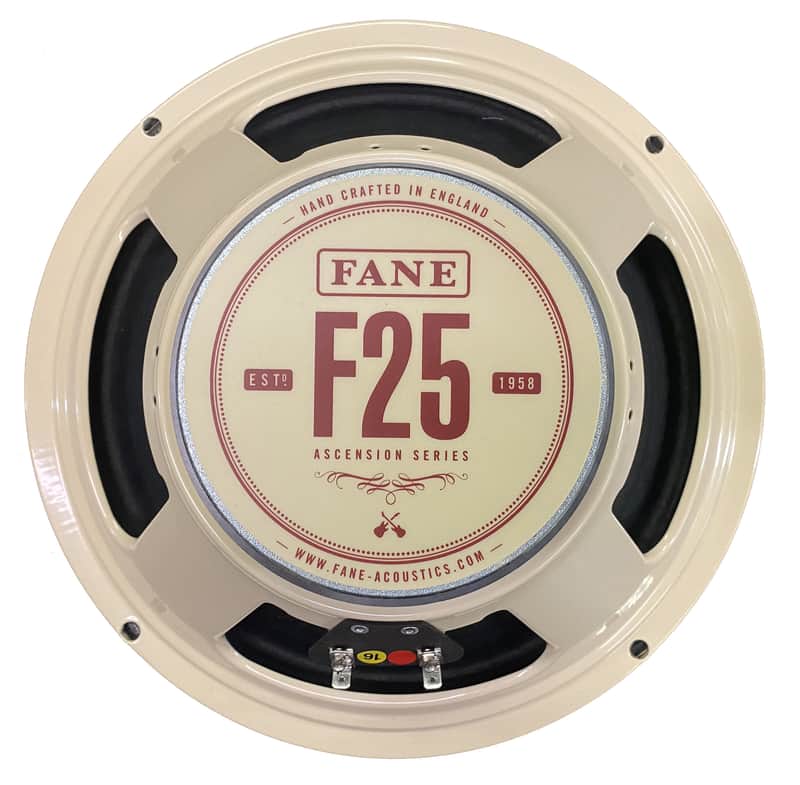

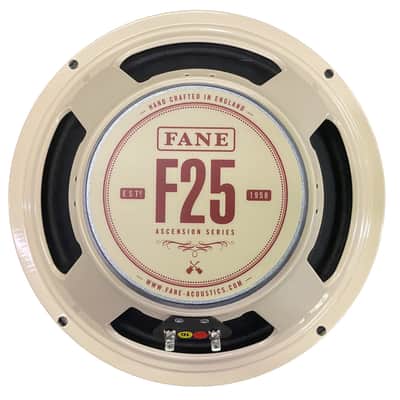

Fane Ascension F25, 8 or 16 ohm.

The Ascension F25 is a low wattage, 25 watt, ceramic magnet, guitar speaker with an emphasis on crunch and mid-range presence. A well-balanced driver, equally suited to classic rock sounds as it is jazz, heavy metal or punk.

The F25’s tonal character possesses a detailed, yet reduced, top-end that paves the way for a super-satisfying mid punch to chords and cut-through lead tones without being too sharp or shrill. Clean tones are warm, detailed and not overly bright.

The F25 is great for low powered amps but really comes alive when used with high powered amps in 4x12 configurations or valve amps pushed into overdrive. The unit is also lighter than our Ascension F70 or F90.

SPECIFICATIONSSeriesAscensionNominal Chassis Diameter12” / 304.8 mmPower Rating (AES)25 WattsFrequency Range75Hz - 5kHzImpedance8 / 16 ΩSensitivity98 dBMagnet Weight1 Kg / 35.27 ozMagnetic Gap Depth8 mm / 0.31”Flux Density1.3 TeslaCoil Winding Height10.7 mm / 0.42”Voice Coil Diameter44.45 mm / 1.75”Voice Coil MaterialCopperFormer MaterialPaperMagnet MaterialCeramicChassis MaterialPressed SteelCone MaterialPaperFront Gasket MaterialFoamSurround / Edge TerminationPaperDust DomeFabricConnectorsSolder TabsOverall Diameter309 mm / 12.17”Flange Height5 mm / 0.20”Overall Depth127.5 mm / 5.02”Magnet Structure Diameter133.5 mm / 5.26”Gasket(s) SuppliedFront & RearBaffle Cut-out Diameter284 mm / 11.18”Mounting Hole Information4 x ø8 mm on 297 mm PCDNett Weight3.55 Kg / 7.83 lb
