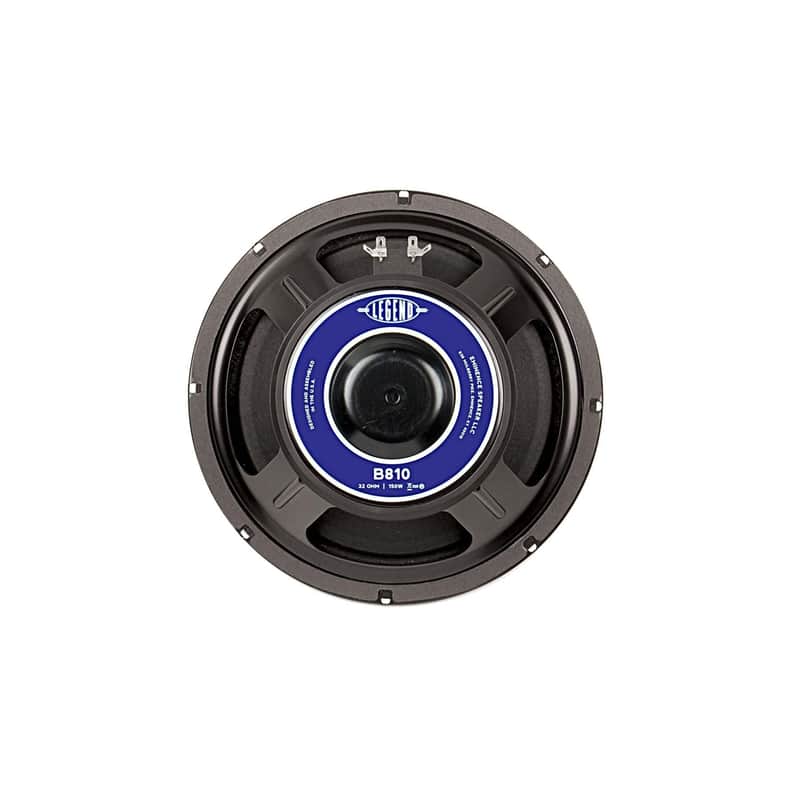

Eminence Legend B810 10" 32 Ohm Bass Guitar Speaker
This seller has not set a shipping cost for Poland. Please contact them to ask about shipping.
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
Overview
A 32 ohm, 10 inch bass guitar speaker offering classic sound with modern features. A perfect replacement for your 8x10 cabinet.
Specifications
Nominal Basket Diameter
10", 254 mm
Nominal Impedance*
32 Ω
Power Rating*
Program Power
300 W
Watts
150 W
Resonance
52 Hz
Usable Frequency Range
49 Hz - 5.1 kHz
Sensitivity*
92.7 dB
Magnet Weight
30 oz.
Gap Height
0.312", 7.9 mm
Voice Coil Diameter
2", 51 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)
52 Hz
DC Resistance (Re)
27.5 Ω
Coil Inductance (Le)
2.72m H
Mechanical Q (Qms)
13.91
Electromagnetic Q (Qes)
0.68
Total Q (Qts)
0.65
Compliance Equivalent Volume (Vas)
66.4 liters / 2.34 cu.ft.
Peak Diaphragm Displacement Volume (Vd)
165.2 cc
Mechanical Compliance of Suspension (Cms)
0.39 mm/N
BL Product (BL)
17.7 T-M
Diaphragm Mass Inc. Airload (MMs)
24 grams
Efficiency Bandwidth Product (EBP)
77
Maximum Linear Excursion (Xmax)
4.7 mm
Surface Area of Cone (Sd)
350.1 cm2
Maximum Mechanical Limit (Xlim)
9.5 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed
Acceptable
Vented
Acceptable
Driver Volume Displaced
0.039 cu.ft. / 1.1 liters
Overall Diameter
10.11", 256.8 mm
Baffle Hole Diameter
9.13", 231.9 mm
Front Sealing Gasket
Yes
Rear Sealing Gasket
Yes
Mounting Holes Diameter
0.23", 5.8mm
Mounting Holes B.C.D.
9.6", 243.8mm
Depth
4.08", 103.6 mm
Net Weight
6.7 lbs, 3.04 kg
Shipping Weight
7.9 lbs, 3.58 kgs
