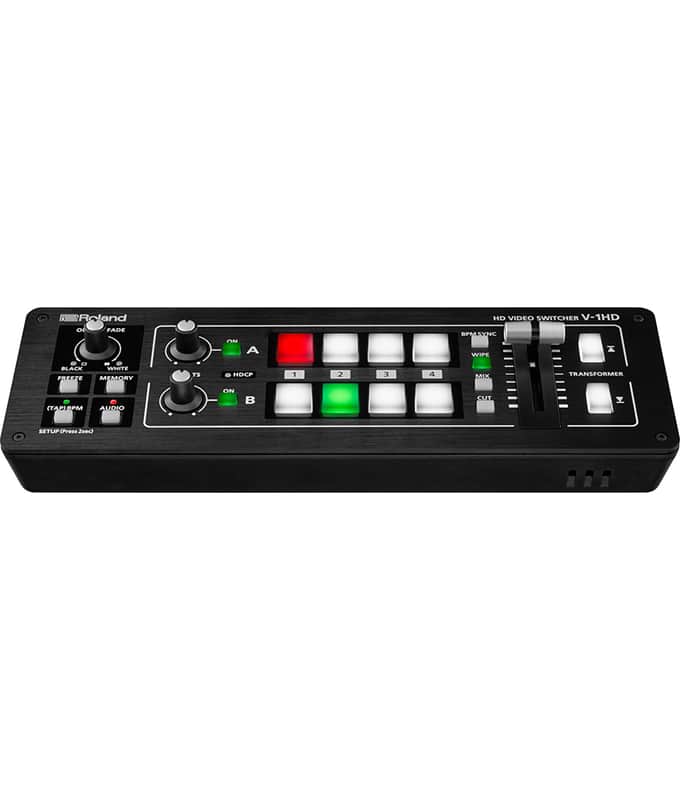

Pre-Owned Roland V-1HD - HD Video Switcher

The V-1HD Video Switcher makes it easy to connect and switch video cameras, smart phones, computers, tablets, blu-ray players and other HDMI video sources with a simple push of a button or slide of the T-fader.

• 4 HDMI inputs
• Supports up to Full HD 1080p
• Easy to Use Interface
• Full 12 Channel Audio Mixer Included
• Easy to Operate with Hardware Controls
• Two HDMI Outputs
• Support for video cameras, action cameras, smart phones, tablet computers and other HDMI devices.
• Picture-in-picture and split functions.
• Two EFFECTS knobs deliver genuine visual performance.
• Remote Control via USB or MIDI Connection.
• Software Control using V-1HD RCS Application for Mac, PC and iPad.


VIDEO:
Video Processing: 4:2:2(Y/Pb/Pr), 8-bit
Input Connectors: HDMI INPUT 1-4: Type A(19pins)x 4 *HDCP Supported
Output Connectors: HDMI OUTPUT: Type A(19pins) / HDMI PREVIEW: Type A(19pins) *HDCP Supported

Input Formats:
HDMI: 720/59.94p,720/50p(FORMAT switch = 720p)
HDMI: 1080/59.94i,1080/50i,1080/59.94p,
1080/50p(FORMAT switch = 1080i or 1080p)
*The input interlaced video signal is converted to progressive video signal by internal processing.
*The video signal frame rate is selected by SETUP parameters (59.94 or 50).

Output Formats:
HDMI: 720/59.94p,720/50p(FORMAT switch = 720p)
HDMI: 1080/59.94i,1080/50i(FORMAT switch = 1080i)
HDMI: 1080/59.94p,1080/50p(FORMAT switch = 1080p)
*The video signal frame rate is selected by SETUP parameters (59.94 or 50).

Video Effects: Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types),
TRANSFORMER(11 types)
EFFECTS: NEGATIVE, EMBOSS, COLORIZE, COLORPASS, POSTERIZE, SILHOUETTE,
MONOCOLOR, FINDEDGE, FLIP, WH-LUMIKEY@, BK-LUMIKEY@,
GR-CHROMAKEY@, BL-CHROMAKEY@, PinP(1/4)@, PinP(1/3)@, PinP(1/2)@,
SPLIT(H-STRETCH)@. SPLIT(H-CENTER)@, SPLIT(V-STRETCH)@,
SPLIT(V-CENTER)@
*@ marked Effects are effected common to A-BUS and B-BUS.

AUDIO:
Audio Processing: Sampling rate: 24bit/48kHz

Input Connectors:
Digital: HDMI INPUT 1-4 (19 pins) x 4
Analog: AUDIO IN (RCA pin type), MIC (Stereo mini type, plug-in power supported)

Output Connectors:
Digital: HDMI OUTPUT (HDMI Type A 19 pins), HDMI PREVIEW (HDMI Type A 19 pins)
Analog: AUDIO OUT (RCA pin type), PHONES (Stereo mini type)

Input Level: AUDIO IN: -10 dBu (Maximum : +8 dBu), MIC: -41 - -13dBu (Maximum : -1 dBu)
Input Impedance: AUDIO IN: 15 k ohms, MIC:10 k ohms
Output Level: AUDIO OUT: -10 dBu (Maximum : +8 dBu), PHONES: 72mW + 72mW (32 ohms)
Output Impedance: AUDIO OUT: 1k ohms, PHONES: 10 ohms

Audio Effects: EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect

OTHERS:
Other Connectors: USB: B Type (for remote control from PC), MIDI: IN, OUT/THRU

Other Functions:
MEMORY (8 types), FREEZE (input video captured),
BPM SYNC (auto transition synchronized to tempo), OUTPUT FADE (WHITE/BLACK/AUDIO)

Power Supply: AC adaptor
Current Draw: 1.5A
Power Consumption: 18W
Dimensions: 12-1/3 (W) x 4 (D) x 2-1/3 (H) inches
Weight: 2 lbs 10-2/5 oz

Accessories:
Owner's Manual, AC Adaptor, Power Cord, Cord Hook

*Pre-Owned items are sold as-is, sale is final*
