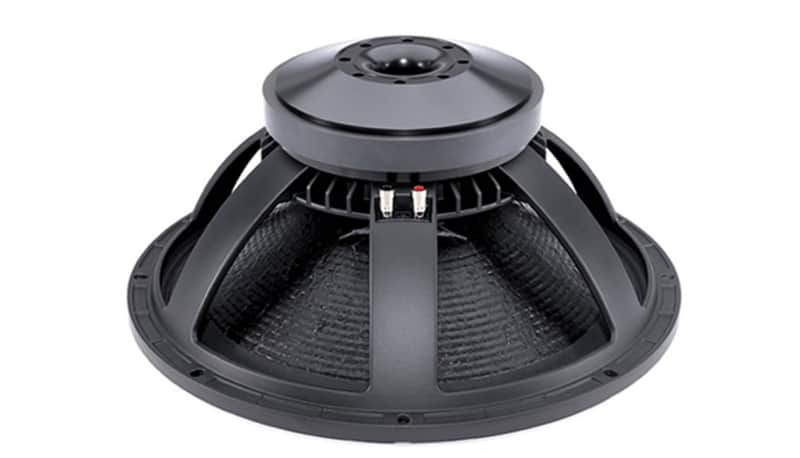

B&C 18" 8 Ohm 2400 Watt Super Powerful Woofer - 18TBX100-8

Overview

Features

• 2400 W continuous program power capacity
• 100 mm (4 in) copper voice coil
• 35 - 1000 Hz response
• 97 dB sensitivity
• Aluminum demodulating ring allows a very low distortion figure
• Double silicone spider with optimized compliance
• Ventilated voice coil gap for reduced power compression

Specifications

• Nominal Diameter: 460 mm (18.0 in)
• Nominal Impedance: 8 Ω
• Minimum Impedance: 6.2 Ω
• Nominal Power Handling: 1200 W
• Continuous Power Handling: 2400 W
• Sensitivity: 97.0 dB
• Frequency Range: 35 - 1000 Hz
• Voice Coil Diameter: 100 mm (4.0 in)
• Winding Material: Copper
• Former Material: Glass Fibre
• Winding Depth: 25.0 mm (1.0 in)
• Magnetic Gap Depth: 12.0 mm (0.5 in)
• Flux Density: 1.1 T

Mounting and Shipping Info

• Overall Diameter: 460 mm (18.0 in)
• Bolt Circle Diameter: 442 mm (17.4 in)
• Baffle Cutout Diameter: 422.0 mm (16.6 in)
• Depth: 241 mm (9.5 in)
• Flange and Gasket Thickness: 16 mm (0.63 in)
• Air Volume Occupied by Horn: 11.0 dm3 (0.39 ft3)
• Net Weight: 15.1 kg (33.3 lb)
• Shipping Weight: 16.7 kg (36.82 lb)
• Shipping Box: 500x495x275 mm (19.69x19.49x10.83 in)
