The Yamaha's CBR10 passive speaker delivers surprisingly full low end from a 10" woofer in a lightweight plastic cabinet that's perfect for touring. Unpowered. Requires separate power amplifier.

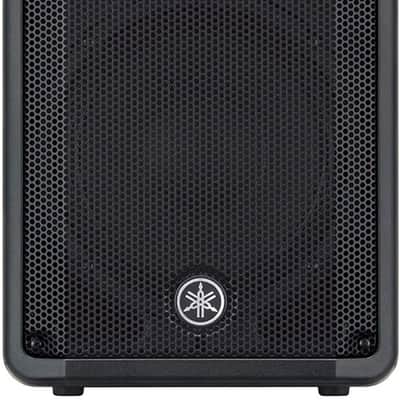

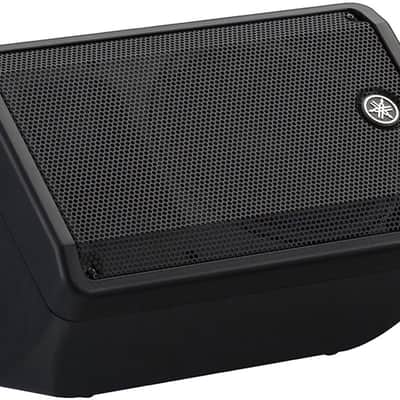

Yamaha CBR10 Passive Loudspeaker
The Yamaha CBR Series is a new lineup of passive loudspeakers developed by adopting the extensive knowledge of speaker design and acoustic technologies that Yamaha has accrued over a long and storied history of making speakers of every kind.

Combining a meticulous materials selection process, through customization of the audio components, and a fresh, innovative approach to speaker design, our engineering team's primary focus was to deliver high-power, high-definition sound in a highly portable and versatile design that is equally at home in front-of-house, floor monitoring, or rigged configurations.

The CBR10 is the most compact model in its series. While delivering astonishing power for its size and weight, the CBR10 is ideal for both portable and installed applications.

Note: Unpowered speaker, requires separate power amplifier.

Specs:
- Speaker type: 2-way Speaker, Bass-reflex Type
- Frequency range (-10dB) : 50 Hz - 20 kHz
- Components LF: 10" Cone, 2" Voice Coil (Ferrite Magnet)
- Components HF: 1" Voice Coil, Compression Driver (Ferrite Magnet)
- Crossover: 2.8 kHz
- Power rating: NOISE 175W
- Power rating PGM: 350W
- Power rating: PEAK 700W
- Nominal impedance: 8O
- SPL Sensitivity (1W; 1m on axis) : 94dB SPL
- SPL Peak (Calculated) : 123 dB SPL
- I/O connectors: 1/4" Phone x 1, speakON NL4MP x 1
- Cabinet material: Plastic
- Finish: Black
- Handle: Top x 1
- Flying and mounting hardware: Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
- Pole Socket Size: 1-3/8" (35 mm)
- Dimensions: (W x H x D) 308 x 493 x 289mm (12.1 x 19.4 x 11.4")
- Net weight: 9.4 kg (20.7 lbs)
