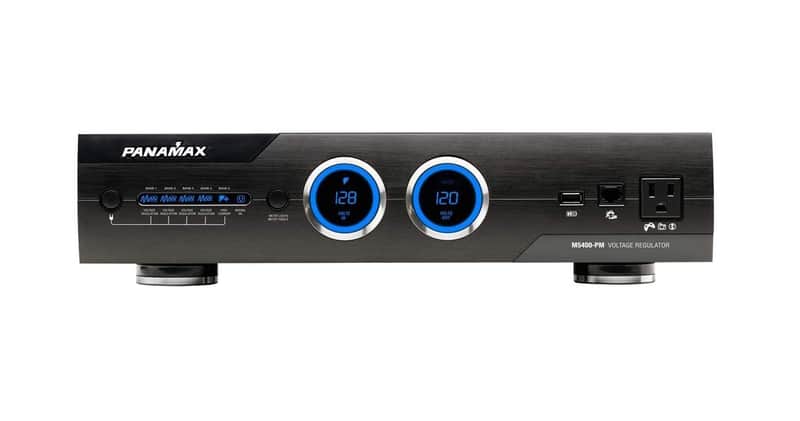

Panamax M5400-PM 11-Outlet Home Theater Power Conditioner.

Panamax M5400-PM 11-Outlet Home Theater Power Conditioner

PANAMAX U.S. AUTHORIZED DEALER, 3-YEAR WARRANTY

Voltage Regulation

Improve system performance and prolong equipment life by providing a consistent level of optimal power to your equipment.

Improves Picture and Sound Quality

Level 4+ Power Cleaning and Filtration eliminates common symptoms of contaminated power (including loss of detail, pops, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.

Monitors Incoming Line Voltage and Provides a Visual Indication of Power Level

Panamax’s patent pending AVM™ circuitry continuously monitors the incoming power as displayed on the digital voltmeter. In case of an undervoltage or an overvoltage, a flashing lightning bolt will be displayed in red in the voltmeter, and power to the connected equipment is automatically turned off if either of these conditions is detected. When voltage returns to a safe level, power to the equipment is automatically reconnected.

Reduces Cross-Contamination Between Components

The M5400-PM is designed to provide noise isolation between 5 isolated outlet banks including 2 high current outlets so that any noise created by an A/V component can not contaminate the power going to equipment plugged into another outlet bank.

General Weight20 lbs.Rack EarsIncludedDimensions17 in. W x 12.75 in. D x 3.5 in H, (4.1 in. Including feet) AC Power UL1449 Suppression Rating330VThermal FusingYesProtection ModesL-N, L-G, N-GPower Cord10 ft detachablePeak Impulse Current72,000 AMaximum Current Rating15 ALine Voltage120V, 60HzInitial Clamping Level200VEnergy Dissipation2125 JoulesCatastrophic Surge CircuitYesAuto-Resetting Under-voltage shutoff86V ± 6VAuto-Resetting Over-voltage shutoff142 VAC ± 8 VAC EMI/RFI Noise Filtration Banks 1, 2, 3, 480 db, 100 KHz − 2 MHzBank 5, High Current Outlets60 db, 100 KHz − 2 MHz Voltage Regulation (Banks 1-4) Power / Current1500 VA / 12AOutput Voltage Range120 VAC ± 6 VACInput Voltage Range100-136 VACBuck Stagereduces voltage in the 125-136 V rangeBoost Stage 2boosts voltage in the 100-109 V rangeBoost Stage 1boosts voltage in the 109-119 V range DC Trigger Input Voltage and Polarity3 - 24V DC, BidirectionalJacks3.5mm (1/8" mono mini-plug)Current Requirement4.6 mA @3V, 58 mA @24V DC Trigger Output Positive = Tip, Negative = Ring Pass throughno delay LAN Circuits Wires Protected8-WiresConnectorsRJ-45Compatibility10/100bTClamping Level52V USB Circuit Power Delivery500 mA @ 5VDCJacksUSB-A Telco Protection Wires Protected2-Wire, Pins 4 & 5Suppression ModesMetallic & LongitudinalFuseless/Auto-resettingYesConnectorsRJ-11Clamping Level260VCapacitance30pf (approx.) Universal Coax Protection ShieldedYesInsertion Loss< 0.5 dBHD 1080 i/p ReadyYesFrequency Range0 MHz - 2.2 GHzConnectionsFemale "F", Gold PlatedClamping Level75VBidirectionalYe

IN THE BOX:

Panamax M5400-pm, 3-Year Warranty
