The DL4™ MkII includes everything in the original DL4 Delay Modeler, while introducing 15 new MkII delays drawn from Line 6's HX® family of amp and effects processors and both 4-Switch and 1-Switch loopers with up to 240 seconds of record time (expandable to several hours using an optional microSD card). There's also an XLR microphone input, MIDI In and Out/Thru connectors, heavy duty footswitches, three bypass options, and a jack for connecting an optional expression pedal or two additional footswitches. The DL4 MkII is also smaller and lighter than the original, making it an even more appealing choice for modern musicians.

Product Features

• Constructed from cast aluminum to withstand the rigors of performance

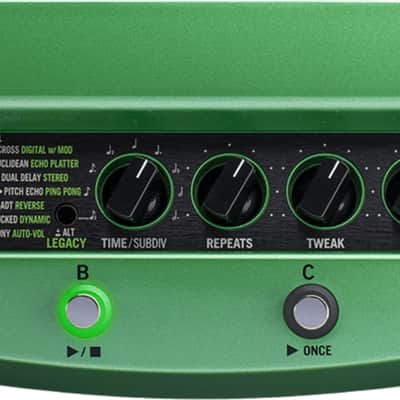

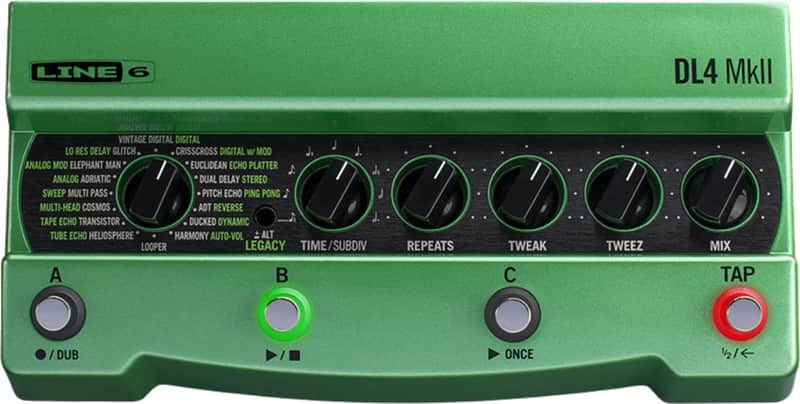

• Utilizes the same layout of knobs and footswitches as the original. Pressing the Legacy button converts DL4 MkII into a DL4
• 30 delays total: 15 new MkII delays drawn from the HX family of amp and effects processors, 14 original DL4 delays, and Echo Platter, taken from the rackmount Echo Pro
• The 4-Switch Classic Looper and the 1-Switch Looper operate in either mono or stereo and may be positioned before or after other effects
• Onboard memory provides up to 240 seconds of recording time, expandable to several hours using an optional microSD card, which also enables a loop to be stored in memory
• Connect a dynamic microphone to the XLR input for vocal (or acoustic instrument) processing and looping, and adjust the gain using the Trim control
• MIDI In and Out/Thru DIN connectors enable the DL4 MkII to receive continuous controller, program change, and other MIDI messages from external sources
• Bypass options include buffered, DSP, and true bypass. Buffered bypass and true bypass avoid A/D/A conversion by routing analog signals directly from the input(s) to the output(s)
• The footswitches select presets A, B, and C. When the Looper is active, they select the Record/Overdub, Play/Stop, and Play Once functions
• Connect an optional expression pedal (automatically assigned to relevant effects parameters), two assignable external footswitches, or one of each
• Connect up to two assignable external footswitches, an expression pedal, or one of each
• DL4 MkII may be powered using the included 9V DC center negative 500mA power supply or most third-party power supplies

Attributes

• Color: Green

Technical Specifications

• Features: Power Supply Included
• Dimensions: 2" H x 9.25" W x 4.5" D
• Weight: 2.07 lbs

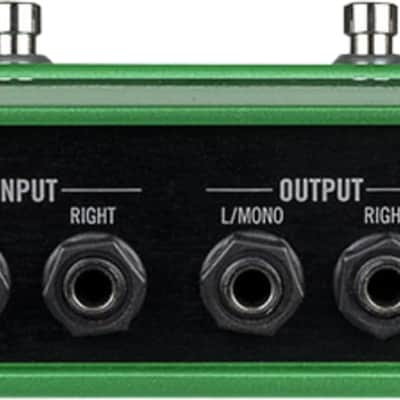

• Inputs: 2 x 1/4" (Mono/Stereo), 1 x 1/4" (Expression), 1 x XLR
• Outputs: 2 x 1/4"
• MIDI: In, Out, Thru, USB
• Power Source: 9V DC 500mA power supply (included)
• USB: 1 x USB-C
• Effects: Delay, Looper, Reverb
• Processing Type: Digital
• Presets: 6 x User, 128 via MIDI
• Looping Time: 2 minutes (stereo), 4 minutes (mono), Expandable to several hours with microSD card
