Electronics Components Corporation C9.263C RCA Vintage Power Transformer Tested 215-0-215 / 6.3 V Tu

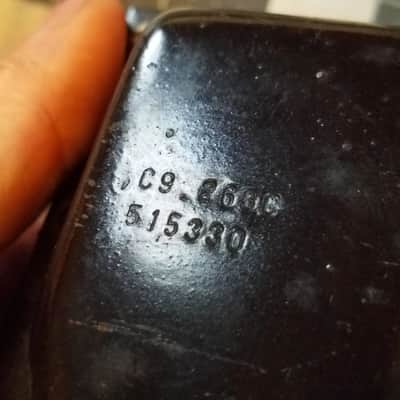

Fully 60 Hz AC tested and guaranteed vintage tube preamp transformer. AC testing using an oscilloscope allows us to find and reject transformers with noisy outputs, which a simple resistance or continuity test will not reveal. Made in USA in 1953. IEA date code 515330. Weighs 2 lbs 7 oz. Bolt spacings 47 mm by 51 mm. Quantity sometimes available - please enquire.

This transformer originally provided B+ and heater supply for these tubes: 12AX7, 5879, 6X4, 6AQ5

Please see the image of the original schematic for a full list of HV and low voltages available!

Here are the verified connections for this transformer:

Input: 117V

Outputs:
430 VAC center tapped
6.3 VAC

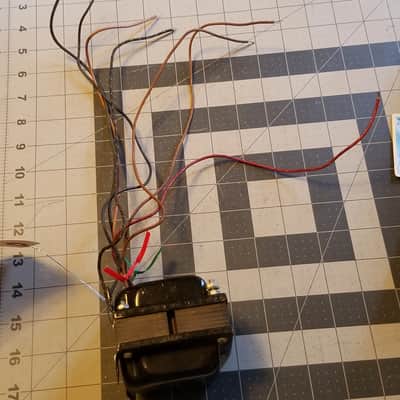

We use a standardized wire identification scheme featuring bright cable ties. In case of any ambiguity, 117V input will be wrapped with a black cable tie, red is high-voltage, yellow is 5V for rectifier, green is 6.3V, blue is 12.6V, white is 117V out for use as an isolation transformer or tubes with series heaters, purple is a second (or third!) 6.3V output. The voltages run a bit higher when run at modern AC levels instead of the 117 VAC that was specified in the 1950s and 1960s. Serial number T-033.
