Electronic Components Corporation Webcor 68P052-3 Power Transformer 560 V / 12.6 V 12X4 12AX7 Tube Preamp 1958
Our users rate Reverb

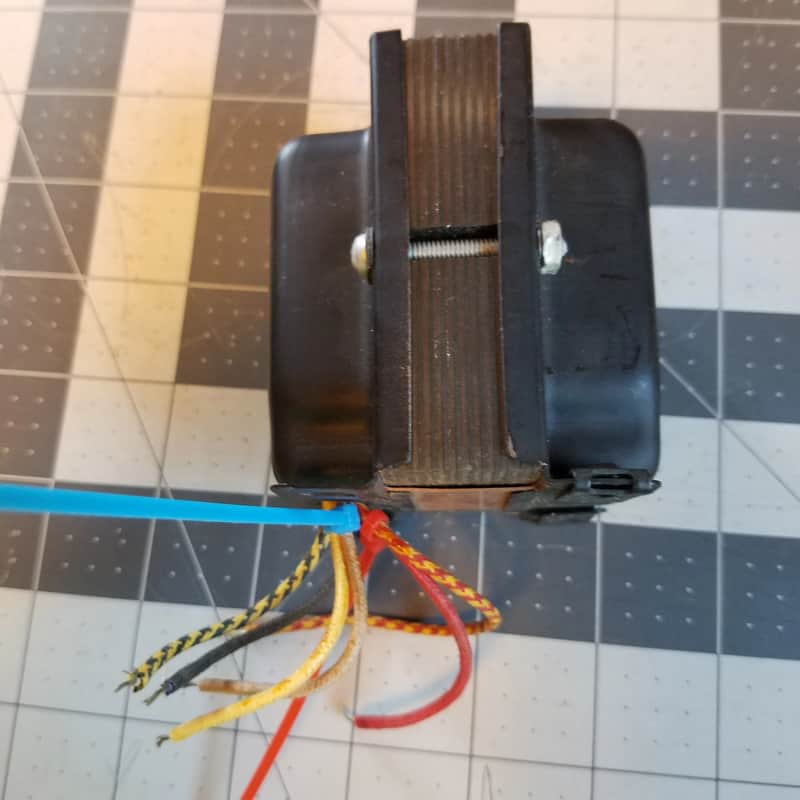

Fully 60 Hz AC tested and guaranteed vintage tube preamp transformer. AC testing using an oscilloscope allows us to find and reject transformers with noisy outputs, which a simple resistance or continuity test will not reveal. Made in USA in 1958. Weighs 2 lbs 6 oz. Bolt spacings 50 mm by 43 mm.
A list of Sound By Doc standardized color codes can be found below. Here are the verified connections for this transformer.
Input 117 VAC
outputs:
red to red/yellow pair 560 VAC
brown to yellow pair 12.6 VAC

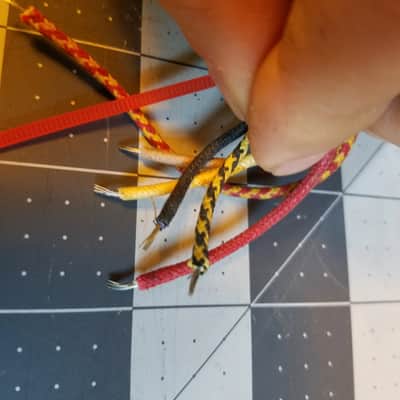

We use a standardized wire identification scheme featuring bright cable ties. In case of any ambiguity, 117V input will be wrapped with a black cable tie, red is high-voltage, yellow is 5V for rectifier, green is 6.3V, blue is 12.6V, white is 117V out for use as an isolation transformer or tubes with series heaters, purple is a second (or third!) 6.3V output.
The voltages run a bit higher when run at modern AC levels instead of the 117 VAC that was specified in the 1950s and 1960s.
