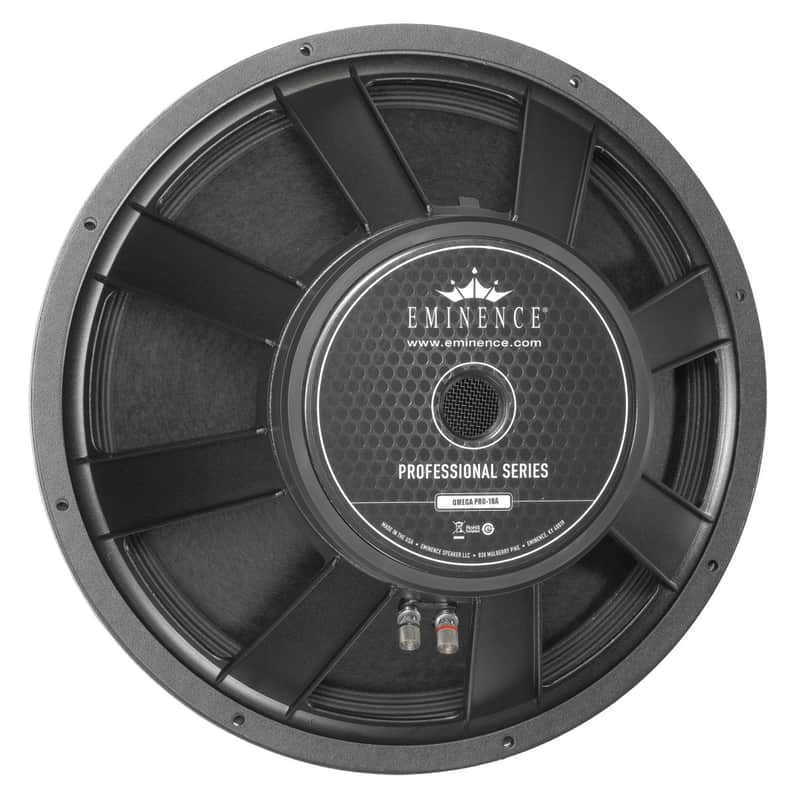

EMINENCE OMEGA PRO-18A Omega Pro-18A Professional 18" 800w 8 Ohm Replacement Speaker

Please message us with any questions!! We pride ourselves with providing the best customer service ever!!!

Description:

Recommended for professional audio as a woofer in vented enclosures. Also ideal for horn loading and scoops.

SPECIFICATION:
Nominal Basket Diameter 18", 457 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power 1600 W
Watts 800 W
Resonance 25 Hz
Usable Frequency Range 40 Hz - 0.8 kHz
Sensitivity* 97 dB
Magnet Weight 109 oz.
Gap Height 0.375", 9.5 mm
Voice Coil Diameter 4", 102 mm

THIELE & SMALL PARAMETERS:
Resonant Frequency (fs) 25 Hz
DC Resistance (Re) 5.2 Ω
Coil Inductance (Le) 1.67m H
Mechanical Q (Qms) 8.18
Electromagnetic Q (Qes) 0.32
Total Q (Qts) 0.31
Compliance Equivalent Volume (Vas) 548.7 liters / 19.38 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 556 cc
Mechanical Compliance of Suspension (Cms) 0.29 mm/N
BL Product (BL) 18.8 T-M
Diaphragm Mass Inc. Airload (MMs) 137 grams
Efficiency Bandwidth Product (EBP) 79
Maximum Linear Excursion (Xmax) 4.8 mm
Surface Area of Cone (Sd) 1159 cm2
Maximum Mechanical Limit (Xlim) 16 mm

MOUNTING INFORMATION:
Recommended Enclosure Volume
Sealed N/a
Vented 96-198 liters / 3.4-7 cu.ft.
Driver Volume Displaced 0.234 cu.ft. / 6.62 liters
Overall Diameter 18", 457.2 mm
Baffle Hole Diameter 16.56", 420.6 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.28", 7.1mm
Mounting Holes B.C.D. 17.25", 438.2mm
Depth 8.15", 207 mm
Net Weight 25.2 lbs, 11.43 kg
Shipping Weight 28.9 lbs, 13.11 kgs

MATERIALS OF CONSTRUCTION:
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented and extended core
Basket Materials Die-cast aluminum basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition paper dust cap
