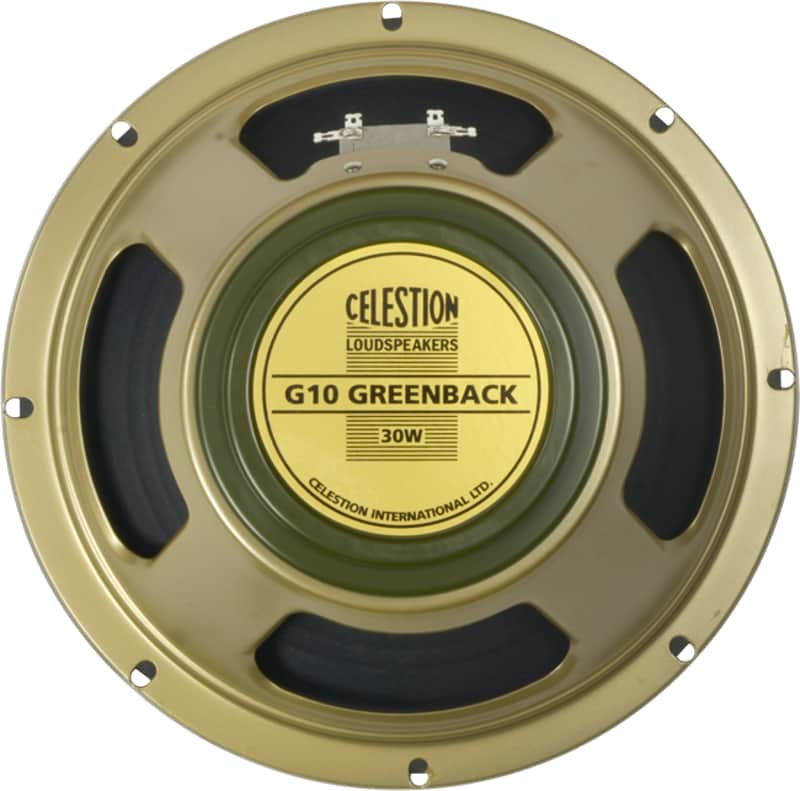

Celestion G10 Greenback 10" Speaker 8 Ohm 30W

PRODUCT DETAILS The 10" that thinks it's a 12". This speaker was developed to recapture the legendary sound of Celestion's 1970s 10s - a 10" speaker with a surprisingly meaty tone. Low in output but with the weighty low-end balance of a 12", the G10 Greenback features a complex, creamy mid-range and smooth, vintage top-end. In small combos this speaker adds real class, and when combined in a 4x10 gives rise to a raunchy, full-bodied tone, rich in low-end thump.

General Specifications

• Nominal diameter: 10", 254mm
• Power Rating: 30W
• Nominal impedance: 8Ω and 16Ω
• Sensitivity: 95dB
• Chassis type: Pressed steel
• Voice coil diameter: 1.75", 44.5mm
• Voice coil material: Round copper
• Magnet type: Ceramic
• Frequency range: 95-5500Hz
• Resonance frequency, Fs: 98Hz
• DC resistance, Re: 6.41Ω& 12.05Ω

Mounting Information

• Diameter: 10.0", 254mm
• Overall depth: 4.0", 102mm
• Magnet structure diameter: 4.9", 124mm
• Cut-out diameter: 9.0", 229mm
• Mounting slot dimensions: 0.25 x 0.43", 6.5 x 11mm Ø
• Number of mounting slots: 8
• Mounting slot PCD: 9.6", 245mm
• Unit weight: 3.5lb, 1.6kg
