PRODUCT DETAILS Following the great reviews we received for the Gold 12", we realised there was also a need for a speaker that conveyed the Alnico mellowness of the original Blue, with the speed and response of a 10" driver.

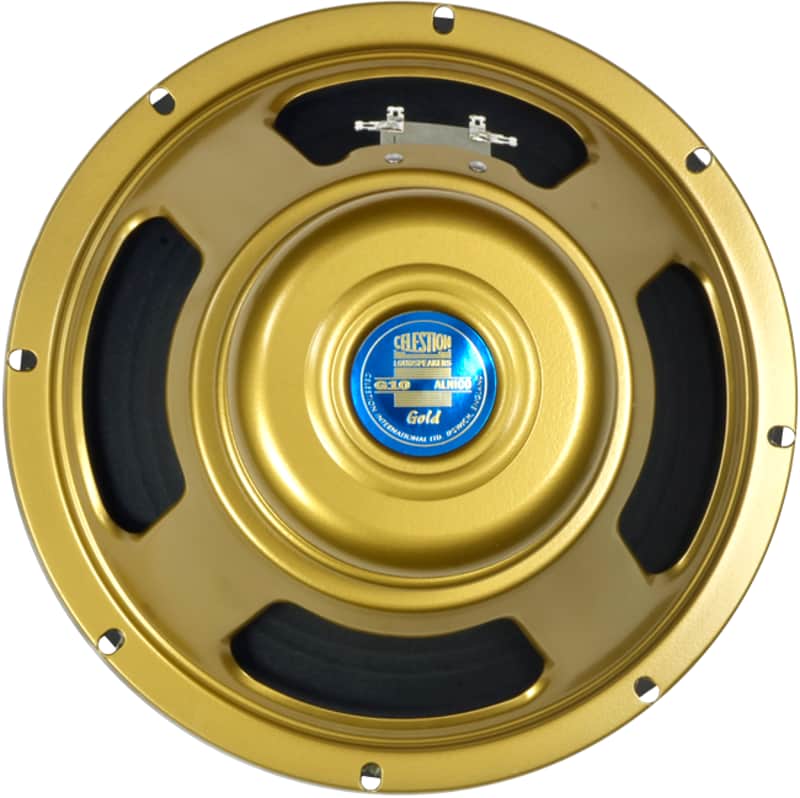

The G10 Gold is the ultimate 10" speaker, blending unmistakable Alnico class with a rich low-end, creamy midrange and vintage chiming top-end. Springy, warm, revealing and highly expressive, it can be used singly or in pairs to add a classy sheen to any amp, or in a 4x10 configuration for higher volume depth, warmth and shimmer, with less of the boom associated with 4x12 cabinets.

General Specifications

  • Power rating: 40Wrms
  • Nominal impedance Available: 8Ω or 15Ω
  • Sensitivity: 98dB
  • Frequency range: 80-6000Hz
  • Voice coil diameter: 1.75", 44.5mm
  • Chassis type: Pressed steel
  • Voice coil former material: Round copper
  • Magnet type: Alnico

Mounting Information

  • Cut-out diameter: 9.0", 229mm
  • Diameter: 5.3", 135mm
  • Magnet structure diameter: 4.7", 119mm
  • Mounting slot dimensions: 0.25", 6.5mm Ø
  • Mounting slot PCD: 9.6", 244mm
  • Number of mounting slots: 8
  • Overall depth: 5.3", 135mm
  • Unit weight: 6.0lb, 2.7kg
