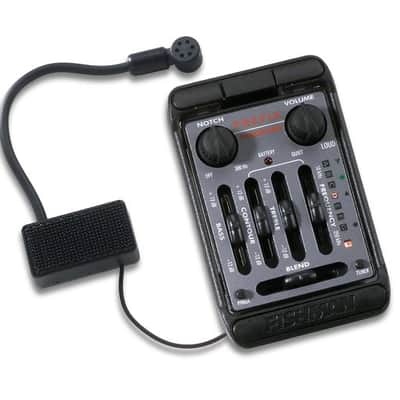

Fishman Prefix Premium Blend Guitar Preamp/Pickup .094"

• Dual Channel Preamp/EQ with Mic
• Includes Matrix Undersaddle Pickup (.094", 3/32", 2.3mm))
• Includes Mic Pickup on Gooseneck
• Bass, Treble, Contour and Frequency Controls
• Phase and Notch Filter
• Built-in Tuner

Fishman's latest addition to the Prefix Series includes many features from their Stereo Blender, including an onboard chromatic tuner, a gooseneck-style internal microphone, and a streamlined new look.

Standard on the Prefix Premium Blend is Fishman's acclaimed Acoustic Matrix undersaddle pickup. To complement and contrast this pickup, a miniature gooseneck microphone captures the guitar's elusive natural ambience and sound chamber resonance. Blend the pickup and the microphone together for a powerful and cohesive acoustic guitar tone that is deeper and more "filled out" than the sound of either the microphone or pickup alone.

The Premium Blend's preamp module incorporates a unique flip-top battery compartment for easy access. Levels are set by the master volume and blend controls. Traditional shelving-style bass and treble, plus a semi-parametric "Contour" EQ are included so you can shape your guitar's tone exactly to taste. With the flick of a switch, you can choose between stereo or mono signal paths for the system's pickup and microphone. This feature expands your options for routing both signals.

To complete the package, Fishman has included a phase switch and an adjustable notch filter, both essential for fighting feedback.

Specifications

Output Impedance (tip): Less than 3.5 k Ohms
Output Impedance (ring): Less than 6.6 k Ohms
Nominal Output Level (tip): -12 dBV
Output Level Range (ring): Max: -12 dBV Min: -16dBV
THD: Less than .04 %, -20 dBV input
Signal to Noise Ratio: 77 dB (A weighted referred to nominal -20 dBV input)
Power Supply: 9V alkaline battery
Battery Life: Preamp only, tuner off: 130 hrs. @ 3.8mA
Tuner on, no signal: 33 hrs. @ 15mA,
Tuner on, with signal: 20 hrs. @ 28mA,.
Notch Filter Range: 20Hz - 300 Hz (-15 dB)
Bass Control Range: ± 12 dB at 60 Hz
Treble Control Range: ± 12 dB at 10 kHz
Contour Control Range: ± 12dB
(adjustable from 250 Hz to 10 kHz), Q = 0.5
Overall dimensions: 4.00" L x 2.45" W x 1.80" D
Preamp hole size: 2.264" W x 3.130" L (includes 1" battery cutout notch)
Preamp screw spacing: 1.902" W x 3.422" L

All specifications subject to change without notice.
