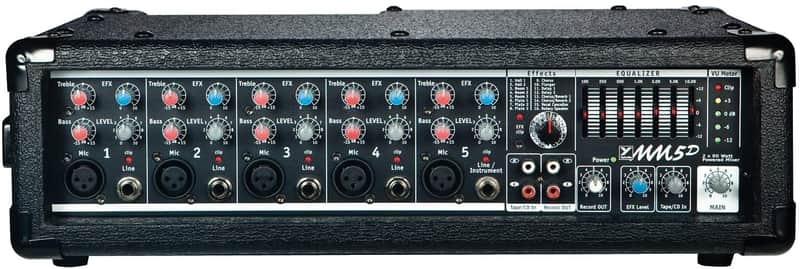

Yorkville MM5D Powered Mixer
This seller has not set a shipping cost for Austria. Please contact them to ask about shipping.
Our users rate Reverb
Total Entertainment
501 West International Speedway Blvd
Daytona Beach FL 32114
Yorkville MM5D Powered Mixer The Yorkville MM5D Powered Mixer is the ideal PA solution for most applications where 2 x 90 watts is enough power yet input flexibility is required. Balanced XLR mic, 1/4-inch phone and dual RCA line inputs, onboard user controlled digital effect unit and tape outs (with separate level controls) make the MM5D the perfect powered mixer for live PA, rehearsal, installation or announcement PA applications.
The Yorkville MM5D Powered Mixer is a rugged and reliable 2x 90-watt, 5-inputs Mixer/Amp featuring flexible outputs, a scratch resistant front panel, durable carpet covering and corner protectors. The MM5D Powered Mixer features high-efficiency stereo power amplifiers designed to deliver maximum power into a 4-ohm load. When speaker impedances lower than 4 ohms are connected, the amplifier will go into PROTECT for six seconds, then test the speaker load with the audio signal. If the speaker load is 4 ohms or higher the amplifier will return to normal operation. If the speaker load is still less than 4 ohms the amplifier will go into PROTECT again for six seconds, then test the speaker load with the audio signal.

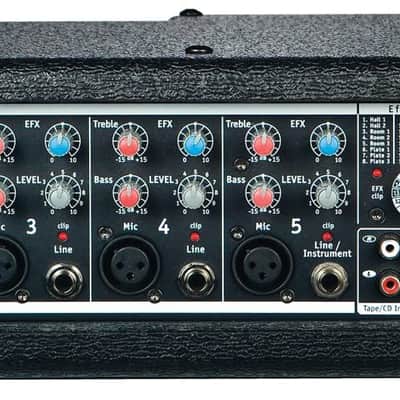

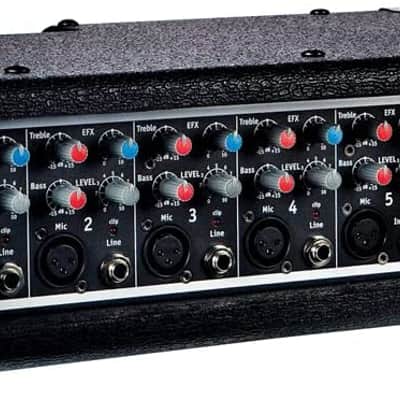

Yorkville MM5D Powered Mixer Features- 5 Input channels ( XLR & 1/4-inch in, 2-band EQ, level & effects send control per channel)
- Additional CD/Tape in with level control
- Separate Record out with level control
- Stereo 7-band master Graphic EQ
- 2 x 90-Watt powered out (stereo)

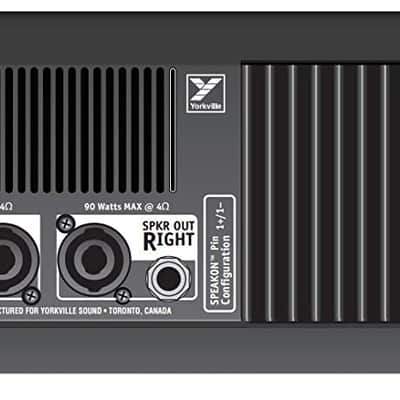

- 1/4-Inch & Speakon speaker output jacks
- On-board Digital effects
- Number of Channels: 5
- Mono Channel EQ: 2 band shelving
- Channel Effects: Yes
- Inputs - XLR (Bal): Ch. 1 - 5
- Inputs - 1/4": Ch. 1 - 5
- Inputs - RCA (Unbal): Tape/CD in
- Internal Effects: 16 Digital Effects (Reverb, Echo, Chorus, Flange)
- Effects Send: No
- Effects Return: No
- Effects Return to Main: Yes
- Effects Return to Monitor: No
- Record Outputs: Stereo RCA with Level Control
- Max Gain to Line Out -Mic Input (dB): 84dB
- Max Gain to Line Out -Line Input (dB): 70dB
- Main Outputs (Line Level): No
- Outputs - Amp A - 1/4" Jacks: 1
- Outputs - Amp A - Speakon 4-Pin: 1
- Mixer - Freq Resp (Tone and EQ Flat,±2dB): 40Hz - 20,000Hz
- Amp A-Power Output@8 Ohms (0.1 PER THD 1kHz): 2 x 60 Watts
- Amp A - Power Output @ 4 Ohms: 2 x 90 Watts
- THD - 1kHz (dB): Less than 0.1%
- Typical Crosstalk -1 kHz (dB-: Less than - 60dB
- Power Consumption (Typ/Max): 1.0 A @ 120VAC / 0.5 A @ 230VAC
- Protection: Clip Limiter, Thermal Shutdown
- Cooling: Passive Heatsink and Internal Fan
- Dimensions (DWH, inches): 9 x 17.75 x 6
- Dimensions (DWH, cm): 22.85 x 45 x 15.25
- Weight (lbs/kg): 19.2 / 9.7
- Yorkville MM5D Powered Mixer
- Power Cord
- Owners Manual
- 2 Year Warranty
