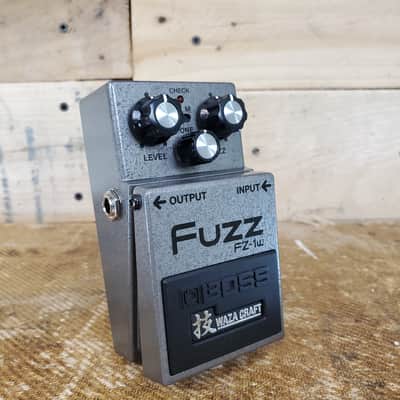

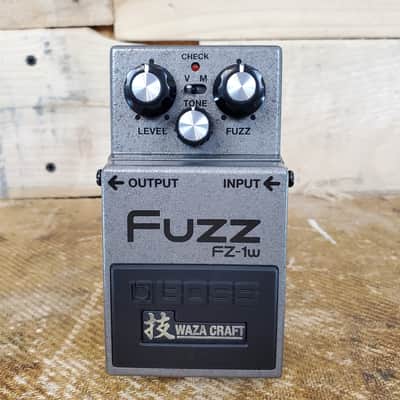

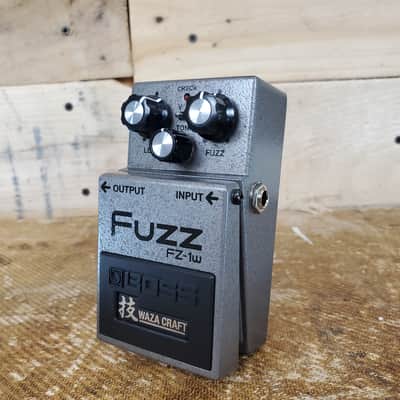

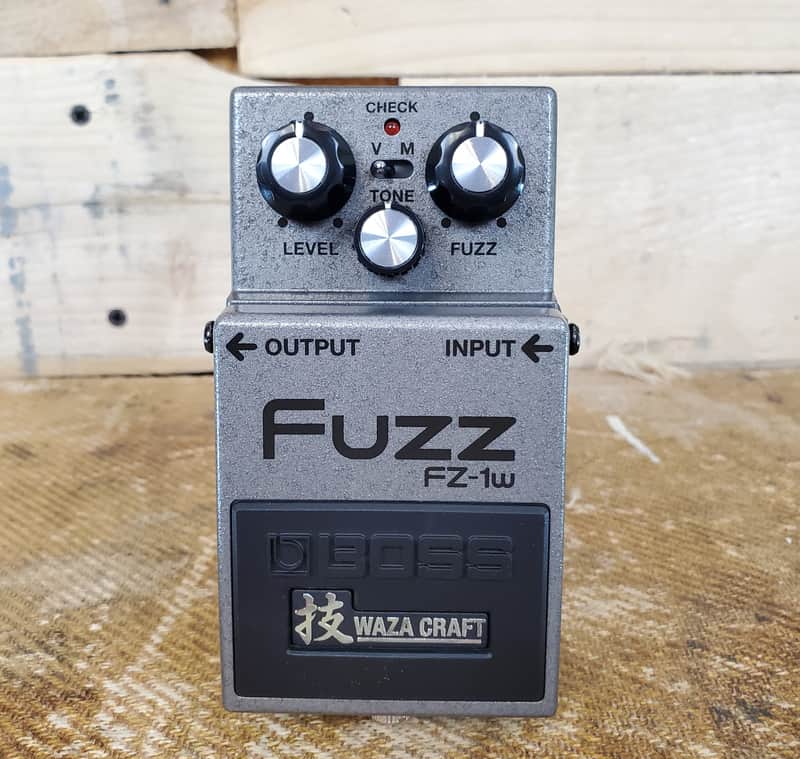

Fuzz was the first type of distortion pedal, and the retro sound of vintage units from the 1960s remains coveted by guitarists to this day. Realized through deep analysis of many legendary pedals and detailed Waza craftsmanship, the all-analog FZ-1W delivers the inspiring tone, feel, and vibe of classic fuzz in a reliable modern design. And like all Waza Craft pedals, the FZ-1W features premium components for top-quality performance and extended range for maximum tonal versatility.

Nominal Input Level -20 dBu Input Impedance Effect On: 1 Megohm
Effect Off: 22 Kilohms Nominal Output Level -20 dBu Output Impedance 1 Kilohm Recommended Load Impedance 10 Kilohms or Higher Controls Pedal Switch
Mode Switch
FUZZ Knob
TONE Knob
LEVEL Knob Indicator LEDs CHECK Indicator (Serves also as Battery Check Indicator) Connectors Input: 1/4" / 6.35 mm
Output: 1/4" / 6.35 mm
DC In Jack Power Supply Alkaline Battery (9 V, 6LR61) or Carbon-Zinc Battery (9 V, 6F22)
AC Adapter (PSA Series, Sold Separately) Battery Life Alkaline: Approximately 33 Hours
Carbon: Approximately 14 Hours Current Draw 16 mA Dimensions 2.9 x 5.13 x 2.4" / 7.3 x 12.9 x 5.9 cm Weight 1 lb / 0.5 kg
