Providing exceptional performance and smooth reproduction, the ALTEA-715A is a high-powered model from DAS Audio’s ALTEA Series. It´s equipped with a 1500 watt peak Class D two-channel amplifier that provides extended bandwidth, wide dynamic range and exceptionally low distortion. Digital Finite Impulse Response (FIR) filters are used in the signal processing of the ALTEA-715A systems.

D.A.S. Audio Altea-715A 15" 2-Way Powered Loudspeaker Features

• Multi-purpose system with monitor position
• Ultra lightweight Class D amplifier with SMPS
• Stereo music streaming in high definition
• User definable 24-bit DSP with LCD screen
• 5 voicing presets
• User-defineable memories
• Stackable 3-band EQ
• Standby Mode
• Rigging points
• Applications
  • Concerts and corporate A/V
  • Portable and live clubs
  • Theaters and auditoriums
  • Houses of worship

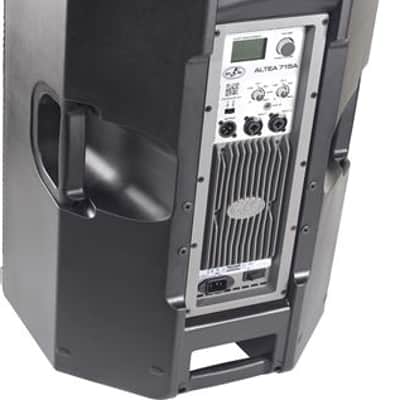

The DAScontrol interface allows users to configure voicing presets, input/output levels, EQ modes, delay and source mixing by way of a high-end 24-bit quality DSP and LCD screen on the rear of the cabinet. The remote control and monitoring APP DASlink of the ALTEA-700 series powered systems allows users to wirelessly stream music from mobile devices in high-definition stereo.

The high-performance transducers include the DAS 15FV4 loudspeaker, which provides accurate low frequency reproduction with a deep, powerful bass. High frequencies are handled by the brilliant M-28 FEM optimized compression driver with 1" exit providing extraordinary presentation and polished clarity.

D.A.S. Audio Altea-715A 15" 2-Way Powered Loudspeaker Specifications

• Frequency Range (-10 dB): 45 Hz – 20 kHz
• Horizontal Coverage (-6 dB): 90º
• Vertical Coverage: 60º
• Maximum Peak SPL at 1 m: 132 dB
• Nominal Amplifier Power (continuous): 750 W
• Nominal Amplifier Power (peak): 1500 W
• Input Type: Balanced
• Input Impeadance: 20 kohms
• Input Sensitivity: 1.95 V (+8 dBu)
• Audio Signal Input Connector: 2 x Female XLR
• AUX Input: 1 x 3.5 mm Mini Jack
• Audio Signal Loop Thru Connector: 1 x Male XLR
• Control:
• DASlink
• DAScontrol
• Current Draw: 230 V 1.5 A
• Enclosure: Construction Polypropylene
• Enclosure: Geometry Trapezoidal
• Rigging: M8 Rigging Points
• Color: Black
• Dimensions (H x W x D): 710 x 440 x 380 mm (28,0 x 17,3 x 15,0 in)
• Net Weight: 19.5 kg (43.0 lb)
