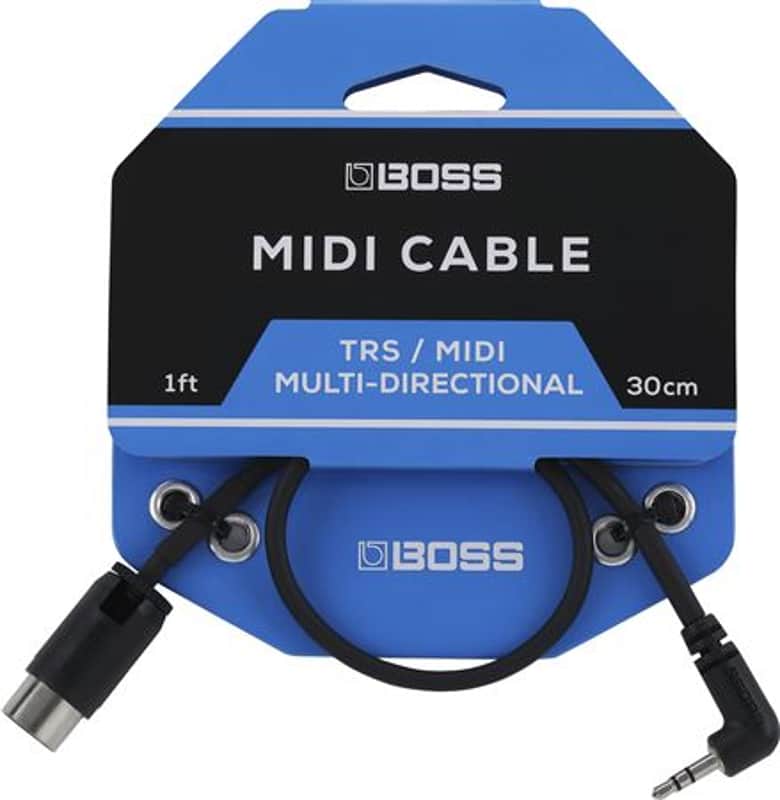

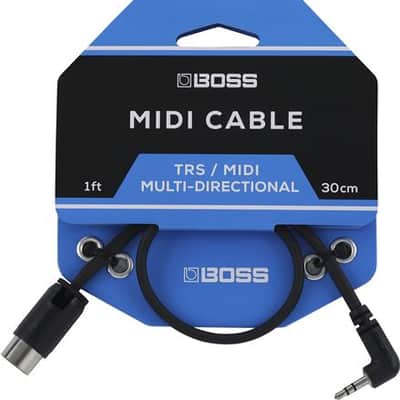

BOSS TRS to MIDI Cable 1 Foot

The BMIDI-1-35 and BMIDI-2-35 cables provide premium connectivity for the expanding lineup of BOSS pedals with space-saving 3.5 mm TRS MIDI jacks. These rugged and reliable cables feature 3.5 mm TRS and 5-pin DIN connectors, allowing you to connect products such as the BOSS 200 series, EV-1-WL, and others to gear equipped with traditional MIDI jacks, from pedals, loop switchers, and multi-effects units to keyboards and MIDI interfaces for computers. The low-profile plugs fit into tight spaces on your pedalboard, with a slim right-angle plug housing on the TRS side and three-way cable adjustment on the 5-pin DIN connector.

Application Example—BOSS 200 Series with an ES Switching System:
The BOSS ES-8 and ES-5 are go-to pedalboard command centers for guitarists everywhere, offering top-quality loop switching, deep MIDI capabilities, and advanced preset control. BOSS 200 series pedals have also become extremely popular, thanks to their great sound, user presets, and low-profile designs. Connecting a 200 series pedal to an ES unit via MIDI opens up a range of external control options from the switcher, including recall of 128 presets and much more.

Application Example—BOSS 200 and 500 Series Together:
Connecting 200 and 500 series pedals via MIDI unlocks a world of possibilities to increase your sonic palette and call up complex sound combinations with a single press. The 200 series supports MIDI preset and sync control, while the 500 series goes even further with real-time control of many parameters at once.

Application Example—EV-1WL Wired Connection:
The EV-1WL Wireless MIDI Expression Pedal is a powerful cable-free solution for wireless MIDI control of all types of gear. But this versatile pedal also supports wired MIDI control of equipment with traditional 5-pin MIDI inputs. Use the short BMIDI-1-35 or BMIDI-2-35 cables for pedalboard applications, or grab the 5 ft./1.5 m BMIDI-5-35 to extend your reach to keyboards and other desktop devices.

BOSS TRS to MIDI Cable Features

• MIDI cable with right-angle 3.5 mm TRS and 5-pin DIN* connectors *The BMIDI-1-35 and BMIDI-2-35 are three-conductor cables. Pins 1 and 3 on the 5-pin DIN are unconnected.
• Compatible with all BOSS products with 3.5 mm TRS MIDI jacks
• Designed to fit in tight spaces with a slim right-angle housing on the TRS plug and three-way cable exit direction on the 5-pin connector
• Rugged and robust design
• Oxygen-free copper wire and shielding
• Flexible and durable PVC outer jacket
• Available in two lengths: 1 ft./30 cm (BMIDI-1-35) and 2 ft./60 cm (BMIDI-2-35)
• For applications where you need a longer cable, check out the 5 ft./1.5 m BMIDI-5-35

BOSS TRS to MIDI Cable Specifications

• Cable Length: 30 cm (12 inches)
• Plug:
  • TRS: 3.5 mm Stereo Mini Plug Angled (Nickel Plated)
  • MIDI: DIN 5 - pin (Nickel Plated)
• Plug Dimensions:
  • TRS: 29.7 (W) x 14 (D) x 9 (H) mm (1-3/16 (W) x 9/16 (D) x 3/8 (H) inches
  • MIDI:16 (W) x 16 (D) x 36.6 (H) mm (11/16 (W) x 11/16 (D) x 1-1/2 (H) inches)
