The ELX200-15 sets a new standard for toughness - both acoustically and physically. The ELX200-15 provides maximum efficiency with maximum toughness that outperforms other brands in its category.

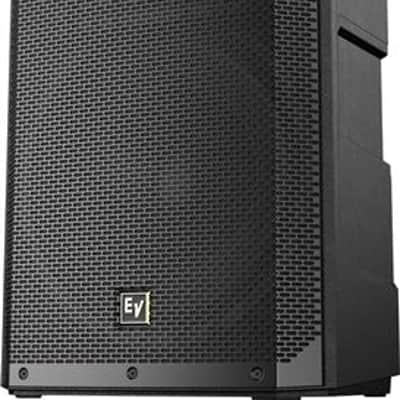

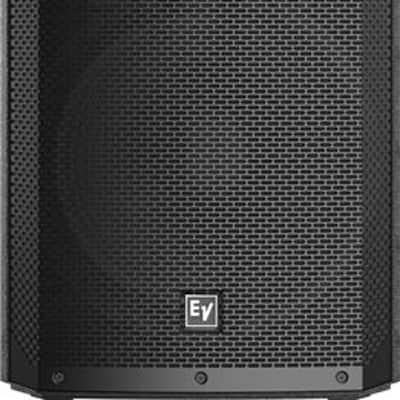

Electro Voice ELX200-15 15" 2-Way Full Range Passive Loudspeaker Features

• 1200 W (peak), 130 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
• 1.4 inch DH-1C (1 inch exit) titanium compression driver for extended transparent high-frequency response.
• High-output EVS-15M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
• EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
• Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting.

All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.

Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.

EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV.

CALIFORNIA PROPOSITION 65 WARNING
WARNING: Cancer and Reproductive Harm -

Electro Voice ELX200-15 Passive Loudspeaker Specifications

• Coverage (Nominal -6 dB) H: 90°
• Coverage (Nominal -6 dB) V: 60°
• Crossover Frequency: 1.6 kHz
• Depth: 384 mm (15.12")
• Enclosure Material: Polypropylene composite
• Family: ELX200
• Frequency Range (-10 dB): 52 Hz - 19 kHz
• Frequency Response (-3 dB): 77 Hz - 16 kHz
• Grille: 18 AWG steel with powdercoat
• Height: 710 mm (27.95")
• HF Transducer: DH-1C 1-inch titanium compression driver
• LF Transducer: EVS-15M 381 mm (15 in)
• Max. SPL/1m (calc): 130 dB
• Minimum Impedance: 7.0Ω
• Nominal Impedance: 8Ω
• Power Handling (Continuous / Peak): 300W/1200W
• Power Rating: 1200 watts
• Recommended High-Pass Frequency: 42 Hz
• Shipping Weight: 21.4 kg (47.18 lbs)
• Speaker Type: Full-Range
• Suspension: (3) M10 suspension points
• Weight Net: 18.7 kg (41.23 lbs)
• Width: 423 mm (16.65")
• Woofer Size: 15 inch
