Building upon the legacy of the incredibly popular EVH 5150III amps, the EVH 5150 Iconic 80-watt tube head will exceed the demands of discerning players! A powerful feature-set makes this the perfect choice for gigging and recording guitarists who crave that pure, powerful and versatile EVH tube tone. The Iconic Series delivers the searing sound and growling gain that the late-Eddie Van Halen made famous throughout his groundbreaking career.

Designed by renowned amp engineer, James Brown, the 5150 Iconic Series 80W Head is powered by four JJ 6L6 power tubes and voiced with two JJ ECC83S preamp tubes, providing all the firepower the modern guitarist needs.

This head features two channels with an extra voicing on each for even more versatility. The Green channel boasts an overdrive button to run from lush clean tones to increased gain, while the Red channel’s burn button adds fiery crunch that’s ideal for blistering leads.

Each channel houses its own gain and volume controls, allowing for level-matching the volume when switching between the clean and high gain channels. The channel two noise gate’s quick attack suppresses any hiss while ensuring all staccato riffing is articulate and crisp, not choked and choppy. The Boost control on Channel 2 allows you to add another 10Db of foot-switchable volume to your tone — perfect for ensuring your solos cut through the mix. The control panel also includes shared EQ (Low, Mid and High), global resonance and presence knobs to adjust the low- and high-end aspects of your tone, and a global reverb control to add the perfect amount of bounce and decay for any room.

Other features include a two-button footswitch, effects loop, dual parallel speaker output jacks, 1/4 power switch to reduce wattage—allowing you to crank the amp and still preserve tone but without destroying your neighbor’s solitude, and a speaker-emulated DI XLR with power amp mute for accurate all-tube EVH tone for recording direct or using through any PA system.

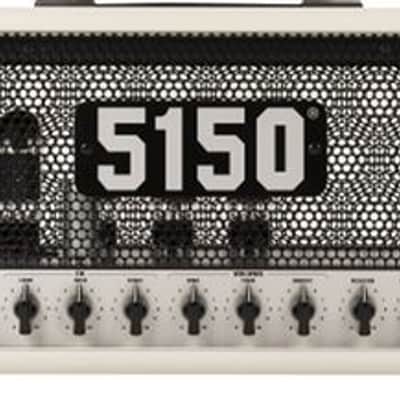

Sporting sophisticated and distinctive EVH style, the 5150 Iconic Series 80-watt head is wrapped in either Black or Ivory textured vinyl with a brushed aluminum front panel and black steel grille featuring silver and black 5150 and EVH logo badges. This head is finished off with vintage-style chicken-head knobs, red LED jewel indicator and molded black plastic top handle. A high-quality fitted cover is available as an EVH Accessory.

EVH 5150 Iconic Series 80W Tube Head Specifications

• Series: EVH 5150 Iconic
• Amplifier Type: Tube
• Inputs: One - 1/4 inch
• Channels: Two - Clean/Overdrive and Lead/Burn
• Controls: Channel 1: Gain w/ Overdrive Switch; Channel 2 Gain w/ Burn Switch; Noise Gate Channel 2: Low, Mid, High EQ; Channel 1/ Channel 2 Volume, Master Boost, Global Reverb, Resonance, and Presence
• Effects: Reverb
• Effects Loop: 1/4 inch (Send/Return)
• Line Out: Two - (One XLR and One 1/4”)
• Headphone Jack: None
• Speaker Jack: Two - 1/4 inch Parallel
• Wattage: 80 Watts
• Preamp Tubes: 2 x JJ ECC83S (12AX7)
• Power Tubes: 4 x JJ 6L6
• Rectifier: Solid State
• Grill: Black
• Amplifier Covering: Black or Ivory Textured Vinyl
• Front Panel: Brushed Aluminum
• Handle: Molded Plastic Strap with Black Powder Coated Caps
• Knobs: Black Chicken-Head Style Pointer
• Power Cable: IEC
• Footswitch: 2-Button Footswitch Included (1/4”)
• Other Features: 1/4 Power Level Switch
