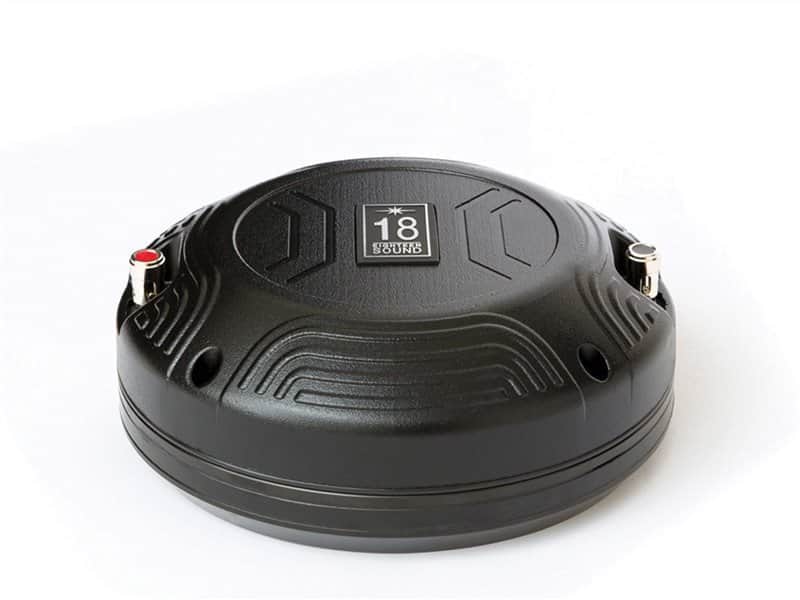

18 Sound 320 Watt 8 Ohm Neo 2" Speaker Driver - ND4015TI2

Overview

NSD4015Ti2 is a 2 inch exit neodymium compression driver designed for extremely high quality, high output sound system applications. Featuring a four inch copper-clad aluminum voice-coil and dome, the pure titanium membrane with integral surround has been optimized for high sensitivity and efficiency and an extended high frequency region. While maintaining a broad piston band and low distortion the results are maximum sound output with natural sound character and exceptional clarity up to the highest end of the frequency spectrum.

Features

• 113 dB 1W / 1m average sensitivity
• 2 inch throat exit
• 4 inch edgewound aluminium voice coil
• 320W max. program power handling
• HF copper sleeve for reduced distortion and increased output
• BEM optimized 4-slot metal alloy phase plug
• Available also in 1.4” and 2” exit version

Specifications

• Throat Diameter: 40 mm (1.5 in)
• Nominal Impedance: 8 Ω
• Minimum Impedance: 6.9 Ω
• Nominal Power Handling: 160 W
• Continuous Power Handling: 320 W
• Sensitivity: 113.0 dB
• Frequency Range: 0.8 - 20.0 kHz
• Recommended Crossover: 0.8 kHz
• Voice Coil Diameter: 100 mm (4.0 in)
• Winding Material: Aluminum
• Diaphragm Material: Titanium
• Flux Density: 2.0 T
• Magnet Material: Neodymium
• Overall Diameter: 150 mm (5.91 in)
• Depth: 57 mm (2.24 in)
• Net Weight: 3.2 kg (7.05 lb)
• Shipping Weight: 3.35 kg (7.39 lb)
• Shipping Box: 170 x 170 x 80 mm (6.69x6.69x3.15 in)
