From Jackson.Audio:

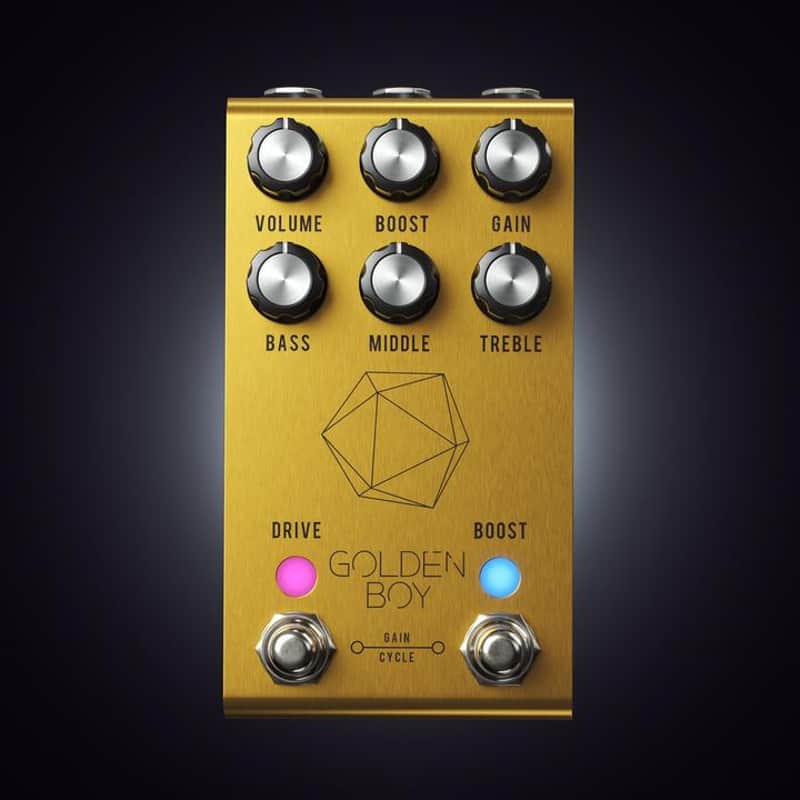

The GOLDEN BOY is a very flexible overdrive with 4 presets for clipping options, an innovative gain adjustment feature that we call GAIN CYCLE, and a 3 band active EQ for maximum tonal flexibility. To top it off, we added a boost circuit which is the same type of MOSFET boost circuit found on our top selling  Preamp pedal.

FEATURES: GAIN CYCLE

The most exciting feature of the GOLDEN BOY is the new feature that we developed called GAIN CYCLE. GAIN CYCLE takes the GAIN knob setting, which selects your maximum gain, and divides that level of gain into 4 equal parts. Say for instance you have your GAIN knob set at the maximum setting or in other words, 100% gain. Every time you press both footswitches simultaneously, the gain of the pedal will jump up 25% until you get to 100%. The following press after 100% will cause the gain cycle to start again at 25%.

3-BAND ACTIVE EQ

To top it off, the DRIVE circuit of the GOLDEN BOY has a 3 band active EQ. The EQ circuit features a studio grade EQ that gives tremendous tonal flexibility to the GOLDEN BOY. Based on the legendary Baxandall EQ that is featured in countless studio EQ’s, the GOLDEN BOY EQ takes this circuit and tailors it for guitarists! We spent tons of time on this EQ dialing it in so it would hit all the frequencies that guitarists need to adjust, and then sweetened it by removing the ear fatiguing highs and lows that can appear at extreme settings.

EQUALIZER CIRCUIT FEATURES:

Studio-grade EQ with High Bandwidth and Flat Response at 12:00
+/- 12dB Boost/Cut per control
Center Detents on the pots that make it easier to get back to a neutral or flat response.

MIDI FEATURES

It's 2020 and it's time to expect more from an analog overdrive pedal! Since the BROKEN ARROW came out in 2019, all of our overdrive pedals have featured MIDI control over clipping options, gain cycle options, boost eq options as well as ON/OFF of the overdrive and boost circuits and the GOLDEN BOY is no exception.

We always want to make sure that our pedals are as easy to integrate into complex rigs as they are into simple rigs and MIDI makes that happen!

CABLE INFORMATION: In order to use MIDI on the GOLDEN BOY, you will need a cable that converts a MIDI (DIN-5) connector to a TRS cable. This is the cable that we have used with great success and can't recommend it enough.



For those building their own cables, the GOLDEN BOY receives MIDI information via the RING connection on a TRS (Tip, Ring, and Sleeve) connector.

Check out this link for some detailed wiring:  .

MIDI CHANNEL

By default, the GOLDEN BOY ships with MIDI Channel 1 being the selected channel. This can be changed by pressing and holding the DRIVE footswitch while applying power to the GOLDEN BOY. Press the BOOST footswitch to increment the MIDI channel number.

You’ll notice that as you continue to hold the DRIVE footswitch, the BOOST LED will flash to indicate which MIDI channel you have selected. IE – 7 flashes = MIDI Channel 7. After the LED flashes, we inserted a 2-second pause so you could tell when the LED was finished flashing. The LED will continue flashing as long as you are holding down the DRIVE footswitch. Once you have selected the MIDI channel you want and have verified it by counting the flashes, simply release the DRIVE footswitch and the pedal will save this MIDI Channel to the internal EEPROM on the microprocessor and reboot.

SPECS

• Input Impedance: 1M
• Output Impedance: 100k
• Power Supply: DC
• Voltage Input: 9V MAX
• Polarity: Center Negative
• Min Current Required: 150mA
• Dimensions: 2.7” x 4.875″
