Description

The Peluso 22 47 SE 'Standard Edition' is styled after the legendary Neumann U 47. Manufactured in the 1950s and 60s, the revolutionary sensitivity of the U 47 brought extraordinary detail to recorded sound.

Remembered for its use by artists from Frank Sinatra to the Beatles, it is perhaps the most well known microphone of all time. This mic is an excellent choice for wide range of applications, from rock drums and guitar amps, to brass instruments and vocals. The SE is built with the highest quality modern components and designed to perform as the U 47 did when it was new. The U 47 was designed around its Telefunken steel-covered tube, and the SE employs the steel 6SJ7 tube, a modern sonic equivalent to the vintage VF14. The SE brings all of the subtlety of tone, detail, and character of a vintage  U 47 combined with the reliability and quiet noise floor required in the modern recording environment.

• Large Diaphragm Condenser
• Center Terminated Capsule
• Steel 6SJ7 Vacuum Tube Amplifier Stage
• Custom Wound Output Transformer
• 9-Polar Patterns

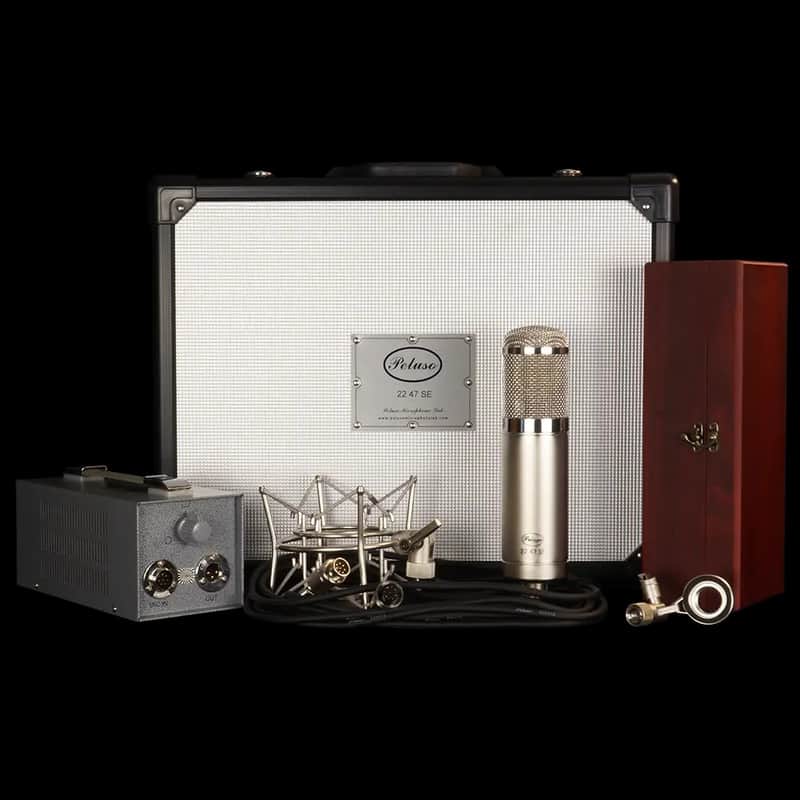

Microphone kit comes as a complete system including:

• 22 47 SE Microphone
• Wood Microphone Box
• Power Supply
• 8-Pin Screw-on Cable Assembly
• Shock Mount
• Locking Padded Flight Case

22 47 SE Technical Data

• Capsule Type: Condenser Pressure Gradient w/ 34mm, center terminated
• Frequency Range: 20Hz/22Khz
• Polar Pattern: 9 - Switchable from omni- to bi-directional
• Sensitivity: 12 mv/pa
• Impedance: 200 ohms
• SPL: 140 dB
• Equivalent Noise: 16 dB(A)
• Tube Type: 6SJ7 (Steel Tube)
• Power Requirements: Dedicated Power Supply, 115V or 230V AC
• Size: 59.5mm x 235mm
• Weight: 855g
