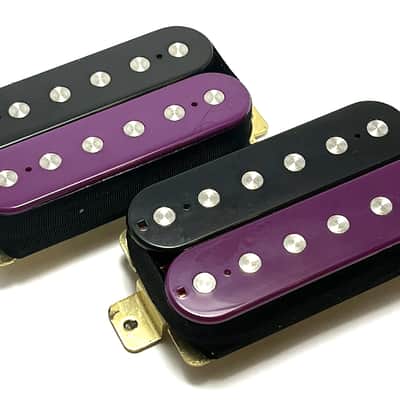

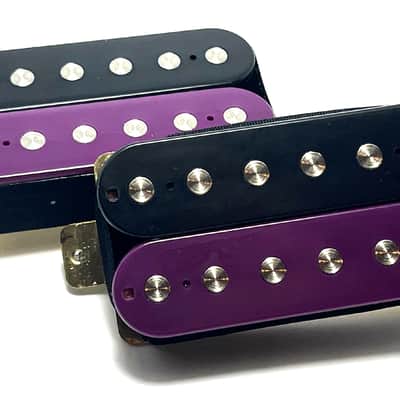

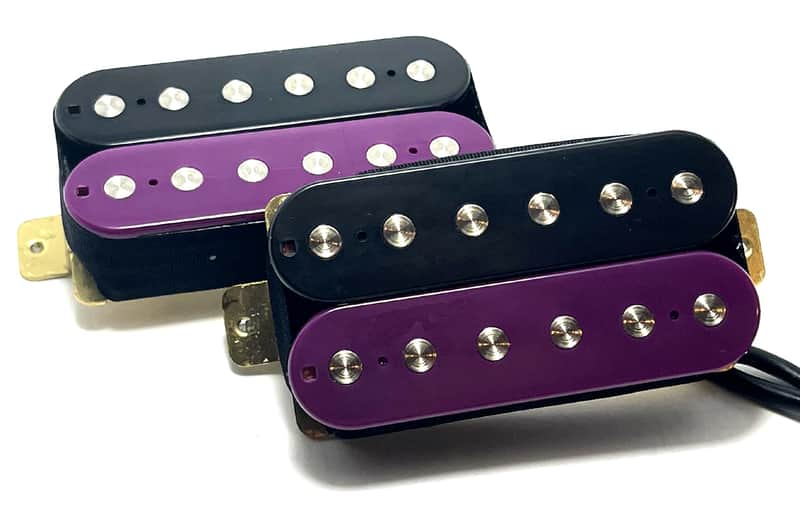

Dragonfire Zebra Screamers HH Set, Bridge + Neck Humbucker Pickups ~ Zebra Purple Black Set Style #4

Dragonfire Zebra Screamers ~ Passive Humbucker Pickups ~ Humbucker Pickup Set (Bridge + Neck)
Collaborative HH Set Style ~ Purple Black Zebra Set Style #4 (see images provided)

Dragonfire Screamers are the ultimate humbucker for high output and clarity in a straightforward style with flat top slug style polepieces. These humbuckers provide crisp, clean tone and are great for a wide variety of styles.

Screamers are hot wound with outstanding output and modern ceramic magnet performance. Help your playing come to life with these humbuckers that can provide you with the ability to cut through the mix and be heard. They’ll help give you output without the mud, allowing for power and articulation.

Each Zebra Screamer color style comes in different zebra combinations. Be sure to check the images provided to see the zebra color style offered in this listing. Check our store for other Screamer style options and contact us if you have any questions.

~~Product Highlights~~
*6 String Passive Humbucker Pickups
*Flat Top, Slug Style Exposed Polepieces
*Uncovered Open Coil Bobbin Style
*Ceramic Magnet Style
*4 Conductor Wiring (4 Wire Pickups)
*Coil Split (aka Coil Tap) & Phase Reversible Pickups
*Hot Wound, High Output, Crisp & Clean Tone
*Great All-Around Performance
*Wax Potted for Squeal Reduction
*52/50 Spacing (Standard F-Spacing)
*Standard Style Short Mounting Legs
*Standard Insulated Lead Wire (Modern Stranded Style)
*Pickup Mounting Screws & Springs Included
*500K Pots & 0.047 Tone Caps Recommended

~~Approximate Measurements~~
*Bridge Polepiece Spacing: 52mm
*Neck Polepiece Spacing: 50mm
*Approximate Bridge Output: Wound to ~16.9K
*Approximate Neck Output: Wound to ~8.3K
*Pickup Length: 68mm (84mm including mounting flanges)
*Pickup Width: 37mm
*Pickup Depth: 16mm (22mm including mounting flanges)
*Mounting Screw Spacing: 78mm

~~Installation Information~~
The included pickup wire color codes will let you know the hot, ground, and coil split wire colors for these 4-wire pickups. Purchases include basic instructions for a sample standard installation. Due to the vast and varied nature of possible components and set-up styles, we do not provide specific information or diagrams for installation. You should be able to use the basic information we provide to match up with any diagram or instructions you choose to use. Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.

~~Purchase Notes~~
Please ask any questions prior to purchase.

Buyers assume all risk of use; sales are only offered to those competent to safely and lawfully purchase and use items. Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material. Ask any questions regarding options, measurements, installation requirements, special requests, or anything else prior to purchase.

Detailed instructions for installation are not included. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice. Take your time for installation; do not use power tools and do not over-tighten or apply too much pressure on components.

Inspect your order upon receipt. We will address any issues PRIOR to installation. If everything is in order, simply install carefully to enjoy.
