Korg D-1600 MkII 16-Track Digital Recorder USED

Korg D-1600 MkII 16-Track Digital Recorder USED

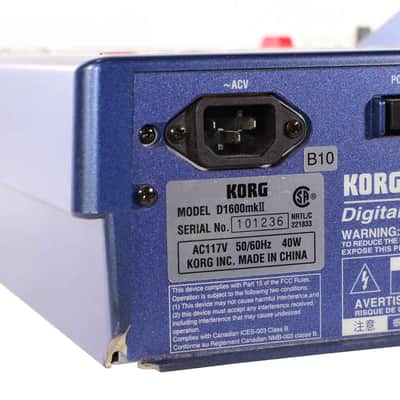

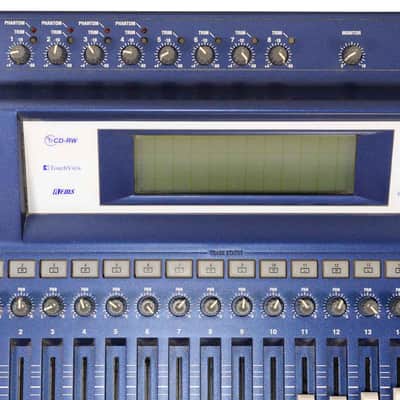

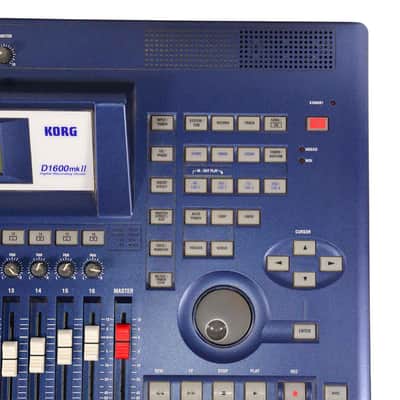

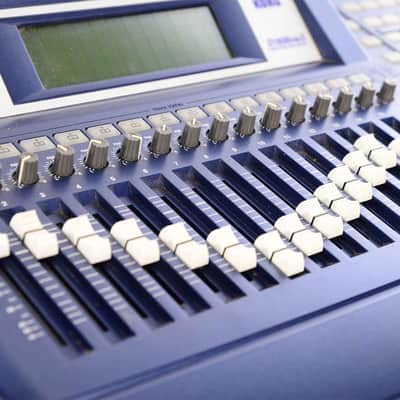

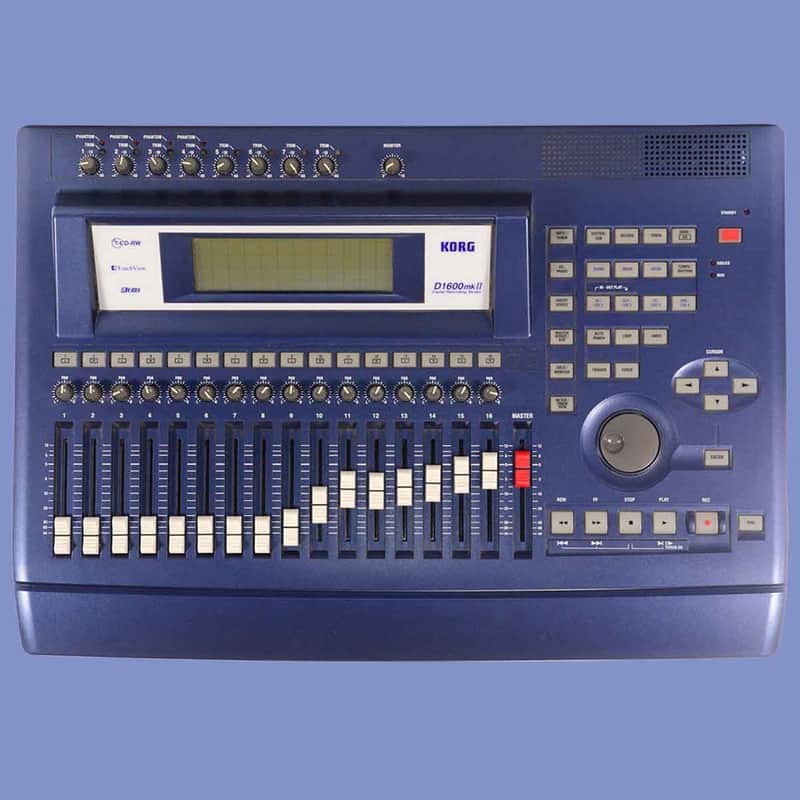

This unit is USED. It has been checked over and is functioning properly. It shows cosmetic wear from normal use, please see pictures for appearance.

Now you can go from first inspiration to finished audio CD, all inside the easy-to-use D1600mkII. This affordable and portable 16-track digital studio is a complete package, combining state-of-the-art technology, USB connectivity, a 40 GB hard drive and a new 32x CD-RW burner featuring 'Disk At Once.'

Recorder Section:
Tracks:
128 tracks (including virtual tracks),
16 tracks simultaneous playback,
8 tracks simultaneous recording @16bits,
8 tracks simultaneous playback,
4 tracks simultaneous recording @24bits

Recording Format: 24bit/16bit uncompressed, 44.1kHz

Recording Time: 16 bit recording 120 hours maximum/24bit recording 60 hours maximum (one track, when 40 Gbyte hard disk is used)

Maximum Storage Capacity: Internal + External 1,000 Gbytes x 7 drives

Songs: 100 per drive

Locate Points: 4 per song

Mark Points: 100 per song (marks can be named)

Metronome/Rhythm Patterns: 96/215 patterns

Synchronization: MTC transmission / reception, MIDI Clock transmission, MMC transmission / reception, Tempo map (200 points per song), Sync track (1 track per song), Tempo rec

MIDI Functionality: Mixer control, effect control, MIDI In/Out

CD-R/RW Functionality: Create audio CD, backup/restore, import WAV file (ISO 9660)

Track editing: Copy, insert, erase, delete, swap, reverse, time expansion/compression, fade, normalize, optimize (tracks can be copied between songs)

Song editing: Copy, move, delete, rename, protect

Counter/Locator Format: Min / Sec / mSec, Meas / Beat / Tick, Min / Sec / Frame (30 NDF only)

Mixer Section:
Structure: 16 channel input, 4 bus, 1 AUX, 1 MASTER
Signal Processing: 32-bit 44.1kHz
Scene Memory: 100 per song

Multi-Effect Section:
Structure:
Insert x 8 (max.),
Master send x 2,
Final x 1
Signal Processing: 44-bit 44.1kHz

EQ:
High (f:10kHz G: +/-15dB),
MID (f:100Hz - 20kHz G: +/-15dB),
LOW(f:100Hz G: +/-15dB)

Programs: Insert (128 preset, 128 user), Master (32 preset, 32 user), Final (32 preset, 32 user)

Algorithms: 98 types Effects: 106 types

Display: 240 x 64 pixel, TouchView LCD with backlight

Power Supply: Local Voltage

Power Consumption: 35W

Dimensions:
20.08"(W) x 14.29"(D) x 5.43"(H),
510(W) x 363(D) x 138(H)mm
(including protrusions)

Weight: 7.8kg / 17.20 lbs.

Audio Specifications:
Frequency Response: 10Hz - 20kHz +/-1dB @+4dBu, 10k-ohm load
S/N: 98dB (Typical) @IHF-A
Dynamic Range: 98dB (Typical) @IHF-A
THD+N: 0.02%, 20Hz - 20kHz @+16dBu, 10k-ohm load
A/D Conversion: 24 bit, 64 times oversampling
D/A Conversion: 24 bit, 128 times oversampling
Sampling Frequency: 44.1kHz

Inputs 1,2,3 and 4:
Connectors: XLR-3-31 type(+48V phantom power, SW), 1/4 in. TRS phone jack (balanced)
Input Impedance: 10k-ohm
Nominal Level: -60dBu @TRIM=max., +4dBu @TRIM=min.
Maximum Level: -48dBu @TRIM=max., +16dBu @TRIM=min.
Source Impedance: 600ohm

Inputs 5,6,7 and 8:
Connectors: 1/4 in. TRS phone jack (balanced)
Input Impedance: 10k-ohm
Nominal Level: -60dBu @TRIM=max., +4dBu @TRIM=min.
Maximum Level: -48dBu @TRIM=max., +16dBu @TRIM=min.
Source Impedance: 600ohm

Guitar Input:
Connector: 1/4 in. phone jack (unbalanced)
Input Impedance: 1M-ohm
Nominal Level: -60dBu @TRIM=max., +4dBu @TRIM=min.
Maximum Level: -48dBu @TRIM=max., +16dBu @TRIM=min.
Source Impedance: 600ohm

Master Output L/R:
Connector: 1/4 in. phone jack (unbalanced)
Output Impedance: 150ohm
Nominal Level: -10dBu
Maximum Level: +2dBu
Load Impedance: 10k-ohm or greater

Monitor Output L/R:
Connector: 1/4 in. phone jack (unbalanced)
Output Impedance: 150ohm or more
Nominal Level: -10dBu
Maximum Level: +2dBu
Load Impedance: 10k-ohm or more

Aux Output:
Connector: 1/4 in. phone jack (unbalanced)
Output Impedance: 150ohm
Nominal Level: -10dBu
Maximum Level: +2dBu
Load Impedance: 10k-ohm or more

Headphone Output:
Connector: 1/4 in. stereo phone jack
Output Impedance: 100ohm
Maximum Level: 50mW @32ohm

S/P DIF Input/Output:
Connector: Optical
Format: 24 bit S/P DIF (IEC60958, EIAJ CP-1201)

External Pedals:
Footswitch: 1/4 in. phone jack (use separately sold PS-1
Expression Pedal: 1/4 in. stereo phone jack (use separately sold XVP-10 or EXP-2)

General:
Dimensions:
20.08 in.(W) x 15.07 in.(D) x 5.43 in.(H),
510(W) x 383(D) x 138(H)mm
(including protrusions)
