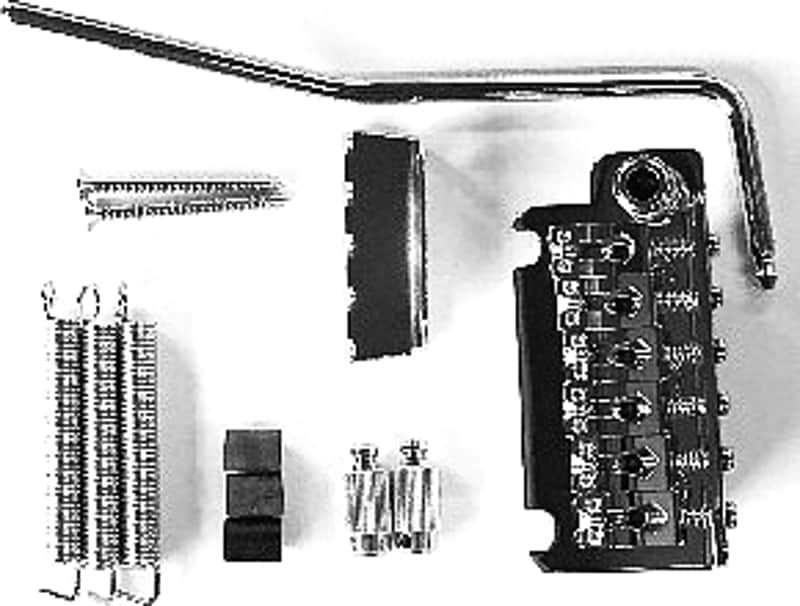

Ibanez Tremolo unit T1502 - chrome

The T1502 is a type of bridge produced for Ibanez by Gotoh. It was introduced in 2018 along with the .

The T1502 is a dual-point tremolo with a pair of studs mounted in the guitar body upon which a knife edge rests forming the fulcrum on which the tremolo pivots. The height of the bridge can be adjusted by turning the mounting studs in or out; the studs are non-locking.

The bridge has six independent steel saddles the height of which can be adjusted using two small allen screws in the leading edge. Intonation of each string is adjusted with a screw through the back of the tremolo plate into the saddle. The string spacing is 10.5mm for an E-to-E spread of 2-1/8" (54mm). The studs are spaced at 56mm. A 42mm deep die-cast zinc sustain block extends beneath the bridge.

The 5.5mm diameter removable stainless steel arm is retained by a nylon collar which allows for tension adjustment.

The design of the T1502 is based on the venerable Gotoh 510T tremolo. The T1502 is used on the among other models.
