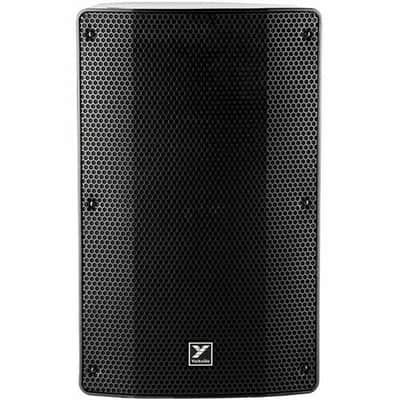

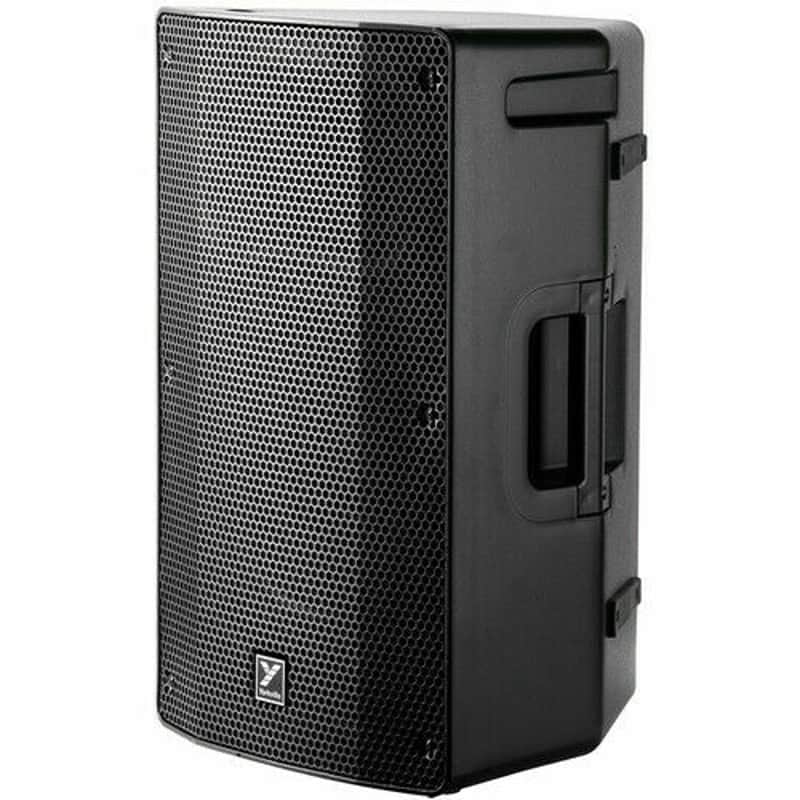

Yorkville Sound YXL12P 2-Way 10" Powered Portable PA Speaker w/ Bluetooth 1000W

Introducing Yorkville Sound's new line of high quality & affordable powered cabinets. The YXL Series is poised to uphold Yorkville's reputation for great sound, reliability and durability.

Overview

The YXL cabinets use a single driver and 90 x 60 degree horn with 1-inch throat and 1-inch compression driver. Constructed from strong Polypropylene, YXL is poised to uphold Yorkville's reputation for reliability and durability. The cabinets can be positioned upright or used as a monitor wedge. Designed as an all-purpose speaker with the Musician & DJ in mind, each YXL cabinet features 3 channels. The cabinet supports Bluetooth streaming and EQ pushbutton controls for Concert, Club & Monitor modes.

Features

• 1000 Watts (Peak) 500 Watts (Program)

• 12-inch woofer with 2-inch voice coil

• 3 Channels plus Master level

• 1-inch compression driver

• 90° x 60° HF dispersion

• Polypropelene cabinet construction

• Integrated 3 channel mixer with 2X 1/4", 2X XLR and 1/8" inputs

• Bluetooth streaming

• 3 performance modes (Concert, Club, Monitor)

Specifications

System Type

• Active Loudspeaker

Active or Passive

• Active

Power Rating (Watts)

• 500 Watts Program (1000 Watts Peak)

Max SPL (dB)

• 126dB Peak

Frequency Response (Hz +/- 3dB)

• 47 - 16k (Hz +/-3dB)

Dispersion (°H x °V)

• 90 x 40

Crossover Frequency (Hz)

• 1.6kHz

HF Horn

• Integrated into Baffle

LF Driver(s)

• 12-inch (2-inch voice coil)

LF Power Rating(Watts)

• 450 Watts Program (900 Watts Peak)

HF Power Amplifier (Watts)

• 50

HF Amplifier Type

• Class A/B

LF Amplifier Type

• Class D

Cooling Scheme

• Speed controlled fan

Power Cable

• Yes

Power Switch

• Yes

Inputs

• 2 x XLR, 2 x 1/4", 1/8", Bluetooth and Main in (XLR)

Level Controls

• x3 Chanels + Master

EQ Controls

• Push button select, Concert, Club, Monitor

Limiter

• Multiband excursion, RMS, rail

Other Controls / Features

• 100 Hz HP with Sub, Mixer IN/OUT, Stereo/Mono out, 3.5mm Aux in, BT streaming

Feet

• Rubber

Bar Handles

• 1 x Side / 1 x Back

Flying Hardware

• 2 (Top), 1 (Pullback)

Optional Flying Hardware

• Yes

Enclosure Materials

• Polypropelene, Metal grille

Baffle Material

• Polypropylene

Grille

• Powder Coated Steel with Grille Cloth

Other Details

• Rubber feet on bottom and side with the monitor Wedge

Dimensions (DWH xbackW, inches)

• 13.5 x 14 x 23

Dimensions (DWH xbackW, cm)

• 34 x 35.5 x 58.5

Weight (lbs/kg)

• 35 / 15.9
