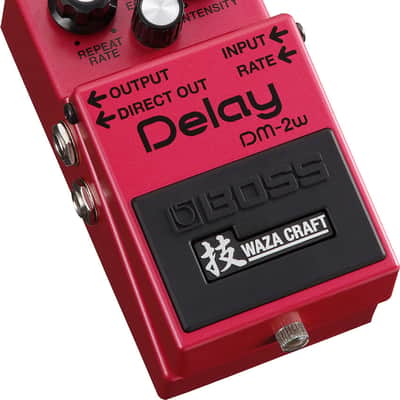

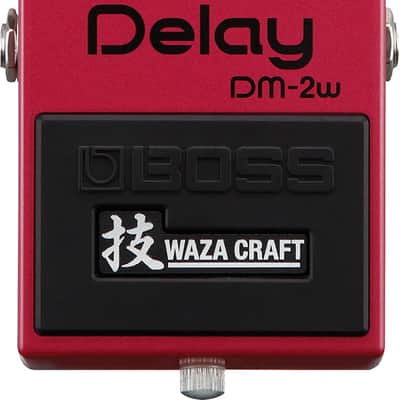

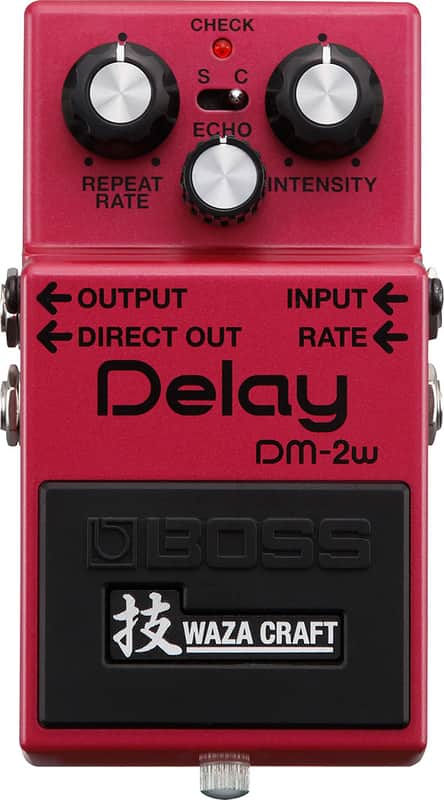

Ever since being discontinued way back in 1984, the BOSS DM-2 Delay pedal has remained highly sought after by players everywhere for its warm, “bucket brigade” analog delay tone. Now, the DM is back! With the Waza Craft DM-2W, the coveted stomp has been reborn with switchable sound modes and greater versatility for today’s music styles. Using 100-percent analog circuitry, the DM-2W’s Standard mode nails the lush sound and 20-300 ms delay range of the original DM-2. Flipping into Custom mode instantly changes the sound character to a cleaner analog tone with over twice the available delay time.

Features

  • Special edition Waza Craft pedal delivers the ultimate BOSS tone experience
  • True reproduction of the vintage DM-2 Delay sound
  • Premium all-analog circuit with BBD (bucket brigade) delay line
  • Standard mode for authentic DM-2 tone with 20-300 ms delay time
  • Custom mode provides warm-yet-clear delay sound and maximum 800 ms delay time
  • Expression pedal input for foot control of delay time
  • Two output jacks allow separate output of delay and direct sounds
  • BOSS five-year warranty

Specifications

  • Weight (including battery): 460 g 1 lb 1 oz
  • Height: 59 mm 2-3/8 inches
  • Depth: 129 mm 5-1/8 inches
  • Width: 73 mm 2-7/8 inches
  • Options (sold separately): AC adaptor: PSA series Expression pedal: Roland EV-5
  • Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Alkaline battery (9 V, 6LR61)
  • Expected battery life under continuous use: Alkaline: Approx. 15 hours Carbon: Approx. 5 hours
  • Current Draw: 35 mA
  • Power Supply: Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22) AC adaptor (PSA series: sold separately)
  • Connectors: INPUT jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type DIRECT OUT jack: 1/4-inch phone type RATE jack: 1/4-inch TRS phone type DC IN jack
  • Indicator: CHECK indicator (Serves also as battery check indicator)
  • Controls: Pedal switch REPEAT RATE knob INTENSITY knob ECHO knob Mode switch
  • Recommended Load Impedance: 10 k ohms or greater
  • Output Impedance: 1 k ohm
  • Nominal Output Level: -20 dBu
  • Input Impedance: 1 M ohm
  • Nominal Input Level: -20 dBu
  • ConditionBrand New (New)
    Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more
    Brand
    Model
    • DM-2W Delay Waza Craft
    Finish
    • Red
    Categories
    Year
    • 2018
    Made In
    • Japan
    Pedal Format
    • Standard
