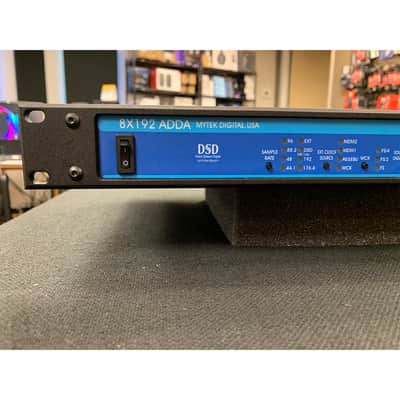

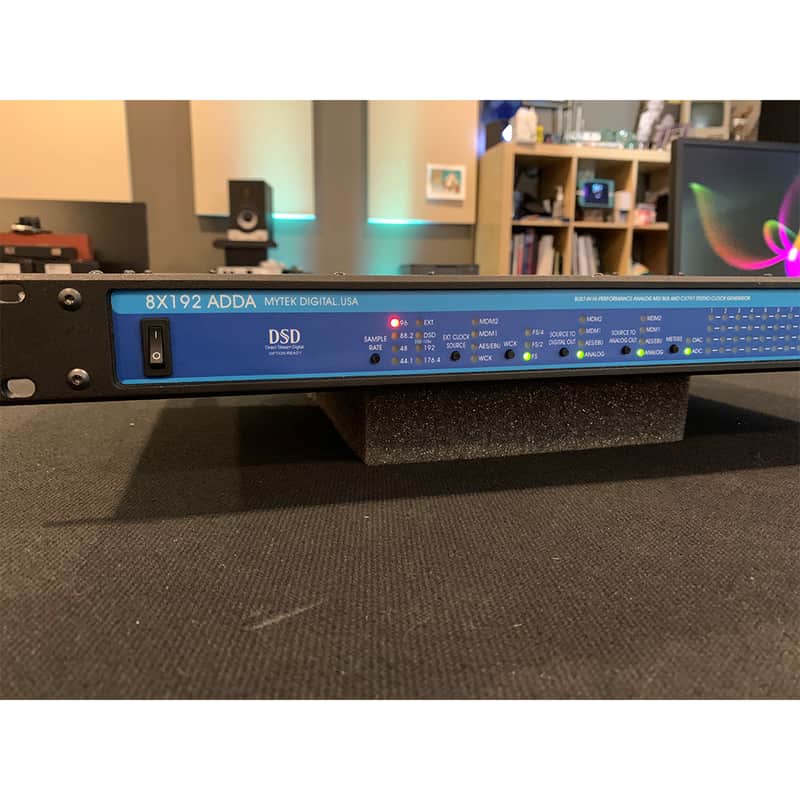

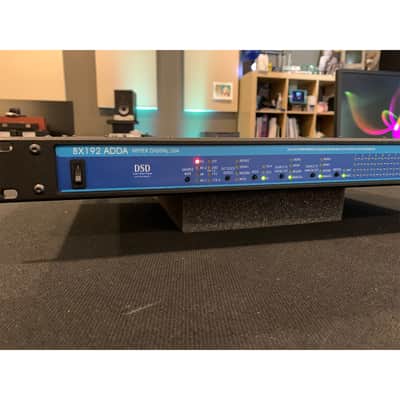

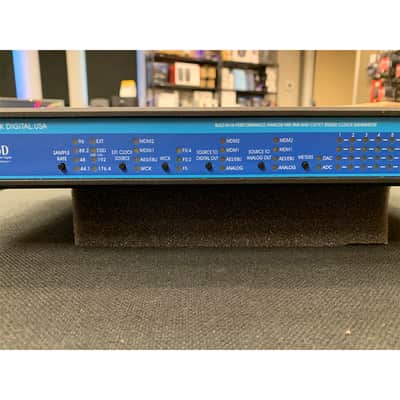

Mytek Digital 8X192, 8 Channel AD/DA Converter
This gear has sold
See similar gear from other Reverb sellers
Our users rate Reverb

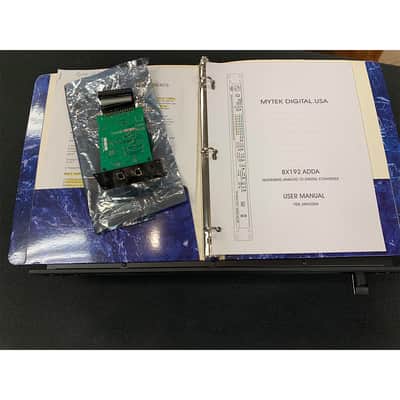

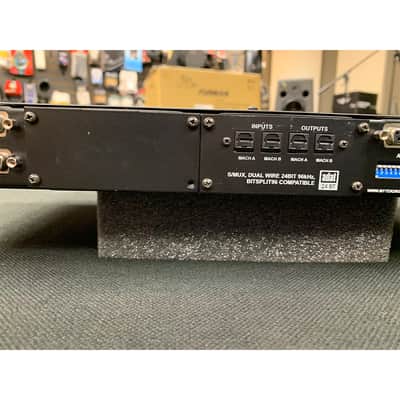

Mytek has been making high quality audio interfaces for years. This is an incredible sound AD/DA. It includes the firewire option card and the ADAT option card. It's really in excellent condition. However, the headphone output isn't functioning so I knocked it down to very good.
Features
8×192 ADDA features
The 8×192 ADDA features digital format conversion between AES and any of two optional DIO Cards installed. True precision mastering grade is obtained by using 1dB per step stepped attenuator. The analog mix buss is assignable to 4 pairs of stereo channels or 8 mono channels. Additionally you can get up to 8 analog outputs, 2 XLR outputs which can be assigned to any pair of channels or Mix Buss output. The 8×192 ADDA offers a hi-current (500mA), hi-speed, low distortion transparent headphone amplifier for easy monitoring.
Specifications:Internal clock jitter
- <10picoseconds
Conversion
- Linear 24 bit PCM
- 128x oversampling at 44.1/48k
- 64x oversampling at 88.2/96/176.4/192k
Optional
- 64xDSD, 128xDSD
External sync
- Wordclock in and out. Wordlock Out can be used as house clock: 15 LS TTL loads max.

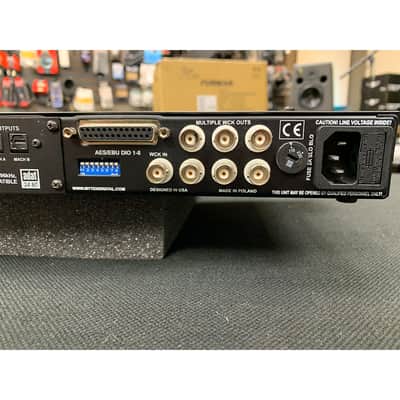

Wordclock outputs
- 6 separate Wordlock Outs to be used as house clock: 15 LS TTL loads max.
Can be terminated.
Dynamic range
- ADC: 120dB (A weighted)
- DAC: 123dB (A weighted)
Analog inputs
- +4dBm balanced or unbalanced, 10kOhm, D25

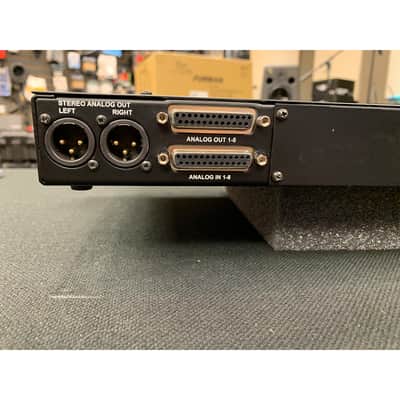

Analog outputs
- +4dBm balanced or unbalanced, D25 plus 2 XLR
Digital inputs
- AES/EBU 8 Hi-speed (25-200kHz)
- S/PDIF
- D25
Digital outputs
- AES/EBU 8 Hi-speed (25-200kHz)
- S/PDIF
- D25
The pinouts of D25 I/O
- connectors are compatible with Protools HD™ Digisnakes™
THD + Noise ADC
- ADC: -106dB (<0.0004%) DAC: -110dB (<0.0003%)
Dimensions
- 1 rack space wide x 1U high x 229mm deep
Weight
- 5kg
Mains
- 100/115V-220/240V 50/60Hz switchable

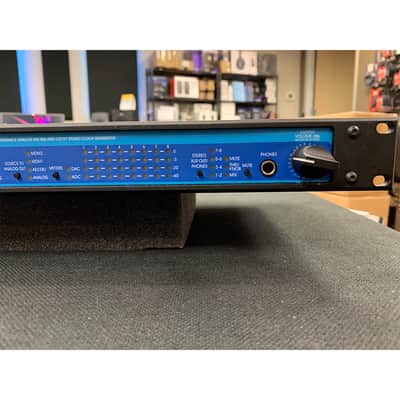

Headphone output
- Hi-current (500mA), hi-speed, stereo
Stepped attenuator
- 24 steps assignable to phones and XLR outs
Mix buss
- 2×4 pairs or 8 mono, true analog mix buss
This item is sold As-Described
