Maker: Fender

Model: Channel Bound Stratocaster Neck

Condition: New

Description:

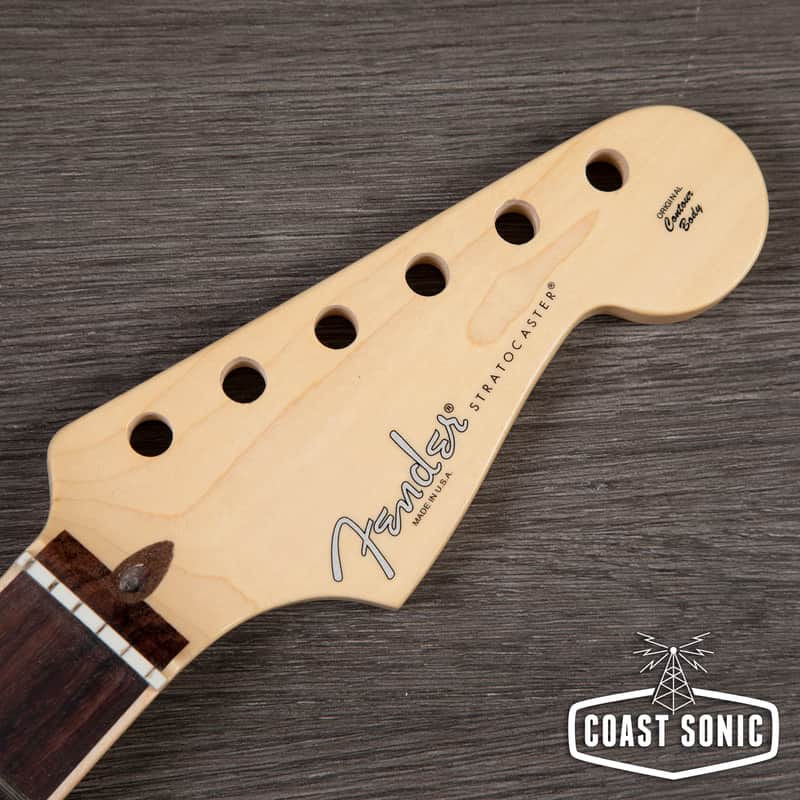

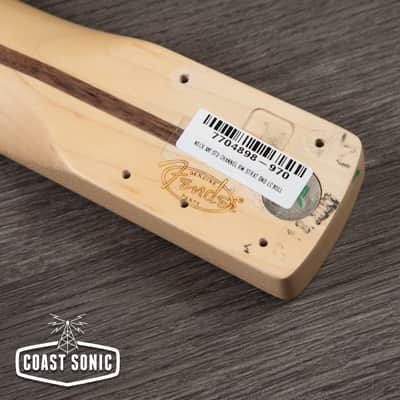

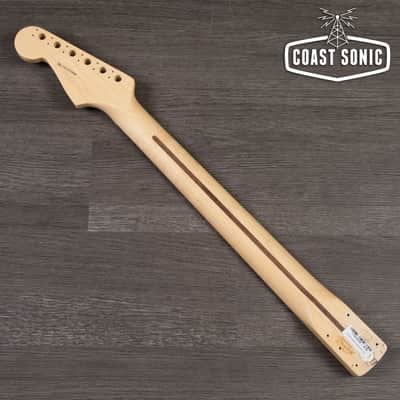

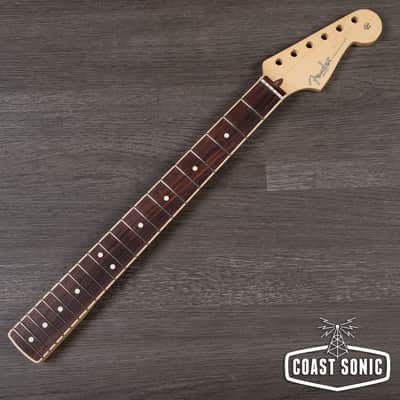

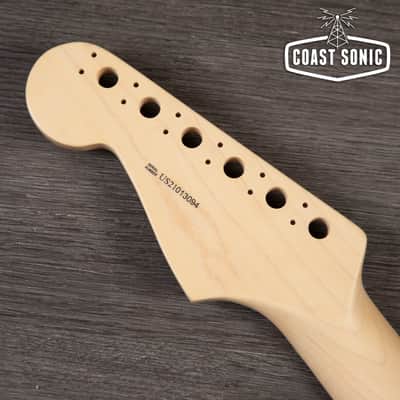

*Note: Stock photo- Grain pattern may vary. Please message us if you would like photos of the neck that would be shipped to you.*

Coast Sonic is an authorized Fender dealer.

ADD A TOUCH OF ELEGANCE

Crafted in the same facility as our U.S.-made instruments, the Channel-Bound Stratocaster® Neck combines a uniquely elegant aesthetic with a distinctively smooth fret-hand feel. The "channel-bound" fingerboard is a unique Fender innovation whereby the fingerboard is directly inlaid into the neck, eliminating the side seams while combining slick style with astounding fret-hand feel. The 9.5"-14" compound-radius rosewood fingerboard is more rounded towards the nut for easy chording, while the flatter radius in the upper register allows wide bends without fretting out. The comfortably rounded fingerboard edges and "Modern C"-shaped profile are ideal for any playing style.

This replacement neck is for a Fender or Squier® by Fender guitar.

Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the “Support” section of fender.com.

FEATURES

• Maple Stratocaster neck with walnut stripe
• Channel-bound 9.5”-14” compound-radius fingerboard
• 21 medium jumbo frets; vintage ivory inlays
• Hand-rubbed polyurethane finish with gloss headstock
• Pre-slotted synthetic bone nut; Bi-Flex™ truss rod
• Six two-guide-pin tuning machine holes; requires 4-bolt neck plate
• FEATURES GENERAL MATERIALS MEASUREMENTS
• • Maple Stratocaster neck with walnut stripe
  • Channel-bound 9.5”-14” compound-radius fingerboard
  • 21 medium jumbo frets; vintage ivory inlays
  • Hand-rubbed polyurethane finish with gloss headstock
  • Pre-slotted synthetic bone nut; Bi-Flex™ truss rod
  • Six two-guide-pin tuning machine holes; requires 4-bolt neck plate
• • Neck Shape Modern "C"
  • Tuner Mounting Config Dual Guide Pin
  • Where Used American Professional Series
• • Fingerboard Material Rosewood
  • Neck Material Maple
  • Nut Material Synthetic Bone
  • Position Inlays Vintage Ivory Dots
  • Neck Finish Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
  • Truss Rod Nut 1/8" Hex Adjustment
  • Truss Rod Bi-Flex™
• • Fingerboard Radius 9.5" to 14" Compound Radius (241 mm-355.6 mm)
  • Scale Length 25.5" (648 mm)
  • Nut Width 1.6875" (42.86 mm)
  • Number of Frets 21
  • Fret Size Medium Jumbo
  • Headstock Thickness .540" (13.71 mm)
  • Neck Thickness 1st Fret - .820" (20.82 mm), 12th Fret - .870" (22.09 mm)
  • Peg Hole Diameter .404” (10.26 mm)

Coast Sonic is an authorized Fender dealer.
