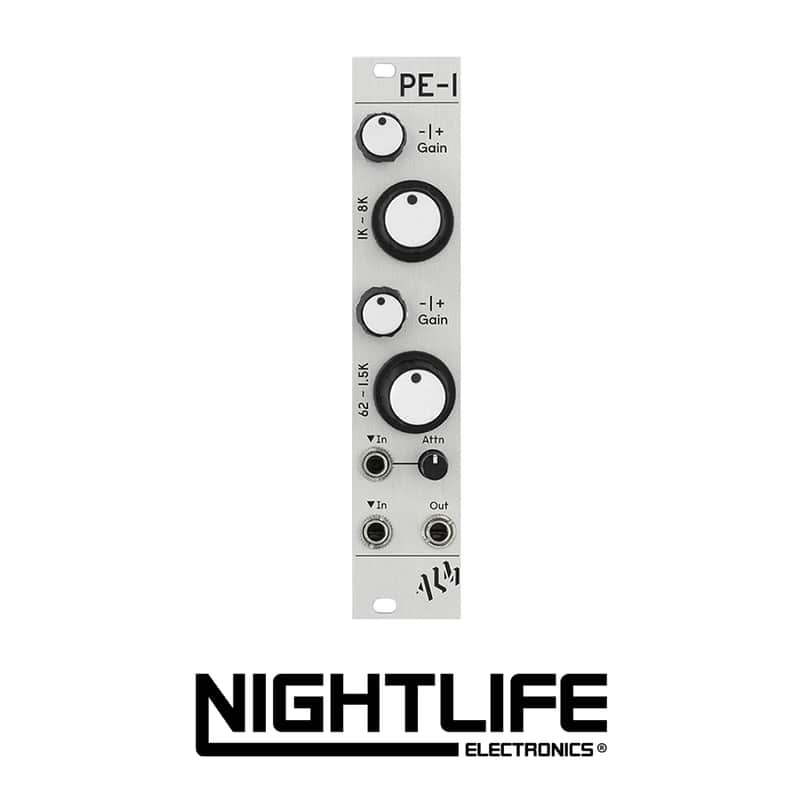

ALM/Busy Circuits PE-1 Silver

‘PE-1’ is a dual band parametric EQ and simple two channel mixer. Two control sections provide a sweepable cut or boost to a selectable upper and lower frequency band. The module has two ac-coupled audio inputs, one of which has an attenuation control for basic mixing, and a single audio output.

The ‘PE-1’ is inspired by the EQ circuits used in early ‘Portastudio’ type 4 track tape mixers. Warm up a digital source, fine control a live performance, extend a mixer, tweak a feedback loop – there are many uses for this great sounding EQ.

• Width: 5HP
• Depth: 32mm
• Power: 10mA @+12V / 10mA @-12V

Features

• Provides +/-12db of boost and cut across 2 selected frequency bands
• Dual input with single attenuation control
• Reverse polarity protection.
• Skiff friendly.
• Designed and Made in the UK.
