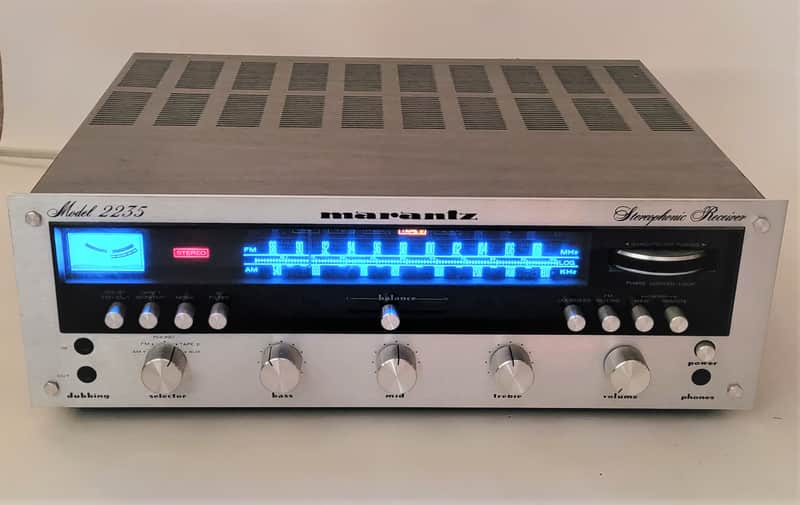

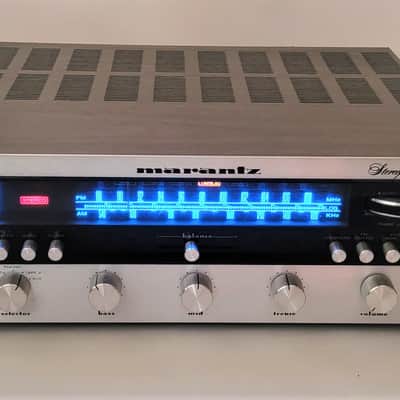

Professionally refurbished and upgraded Marantz 2235 Stereophonic receiver / integrated amplifier, originally available 1975-77. Fully recapped, upgraded with LED panel lights. All functions tested and passed, expected to reliably meet or exceed original specs. See service details, below.

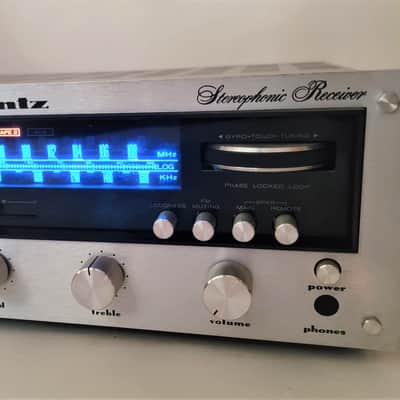

With LED upgrade and complete cleaning, unit is visually striking, looking as extraordinary as it sounds.
Ships worldwide, or local pickup can be arranged. Package will be large, heavy, and fully insured for the declared value under Reverb Safe Shipping, so please be aware that the shipping cost may be substantial. Estimated cost of international shipping is based on shipping to Australia, the furthest distance from my location. Please inquire for an estimate to your specific location outside of the USA.
Notes from the technician -
Marantz 2235 service
Date finished: 12/5/21
Initial assessment:
-Intermittent output
-Hum at output
-Fm does not go into stereo
-Loose volume pot
-Several cracked solder joints on amp board and power supply
-Multiple display bulbs need replacement
Service:
-Resoldered 10-15 suspect solder joints (input jacks, grounds, regulators)
-Inspect amp board for burning or corrosion: good
-Cleaned fuses and tightened fuse holders
-Junction tested all amp board transistors and bias diodes: good
-Checked all P.S voltages

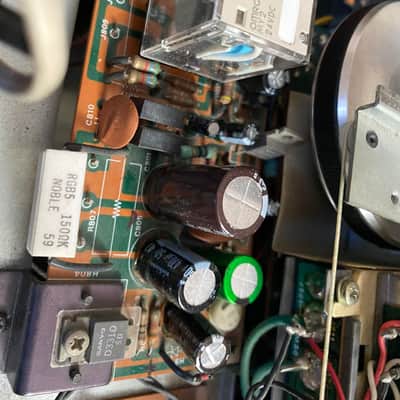

-Replaced output relay with high amp contact Omeron MY2 relay

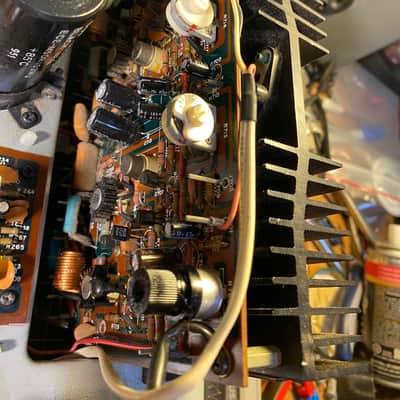

-Completely recapped (all electrolytic caps) on amp board with nichicon low esr
-Recapped all secondary and third order P.S filtration capacitors

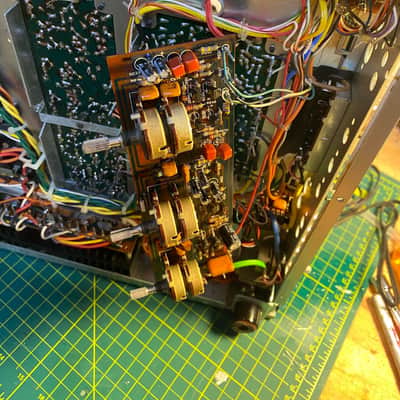

-Recapped phono board and tone amp board
-Cleaned all controls and switches with Deoxit, and finished by applying R100 to prevent future oxidation
-Calibrated bias and dc offset
-FM alignment

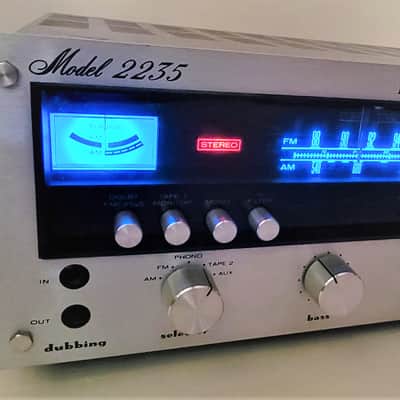

-Replaced all front panel incandescent bulbs with “Soft blue” LEDs, and replaced all failed indicator bulbs.
-Tightened nuts on all controls

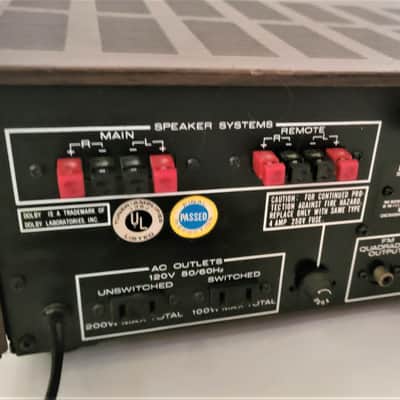

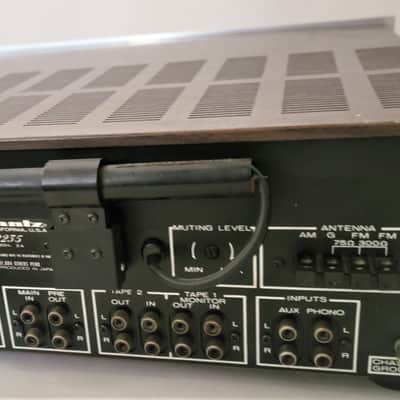

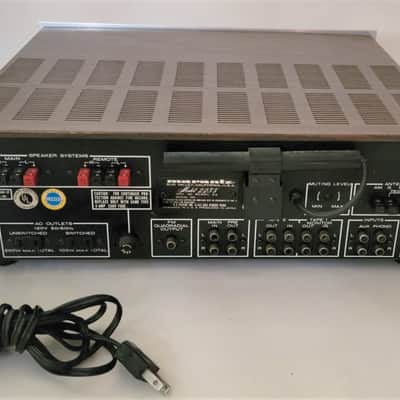

-Cosmetic cleaning of face and back panel connectors

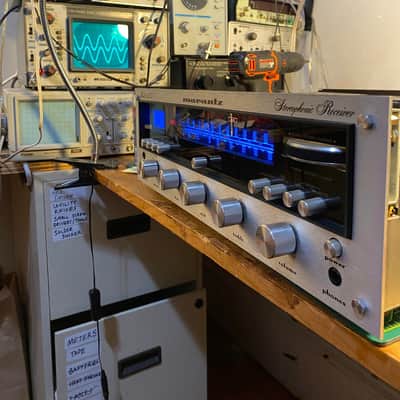

-Final bench test: ran unit with speakers for 3 hours
From the owner's manual -
Tuning range: FM, AM
Power output: 35 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.25%
Damping factor: 45
Input sensitivity: 1.8mV (MM), 180mV (line)
Signal to noise ratio: 65dB (MM), 80dB (line)
Output: 775mV (line)
