10-Channel Analog Mixer with USB Interface Yamaha MG10XU combines professional mixing capabilities with a high-resolution USB audio interface and studio-grade effects. With 10 inputs, onboard compression, and Cubase AI software included, it’s a perfect fit for live performances, studio recording, streaming, and hybrid workflows. Yamaha MG10XU Competitive Differences

• Built-in USB audio interface with 24-bit / 192kHz resolution
• SPX effects engine with 24 programs and 1-knob compression

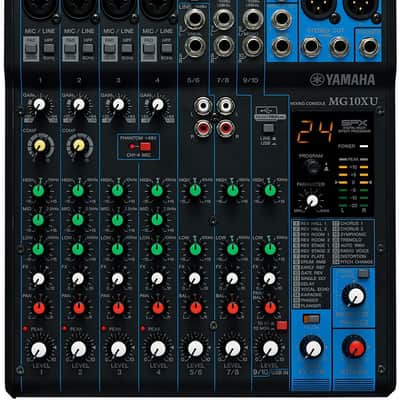

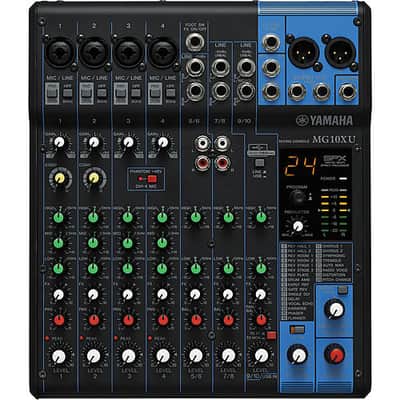

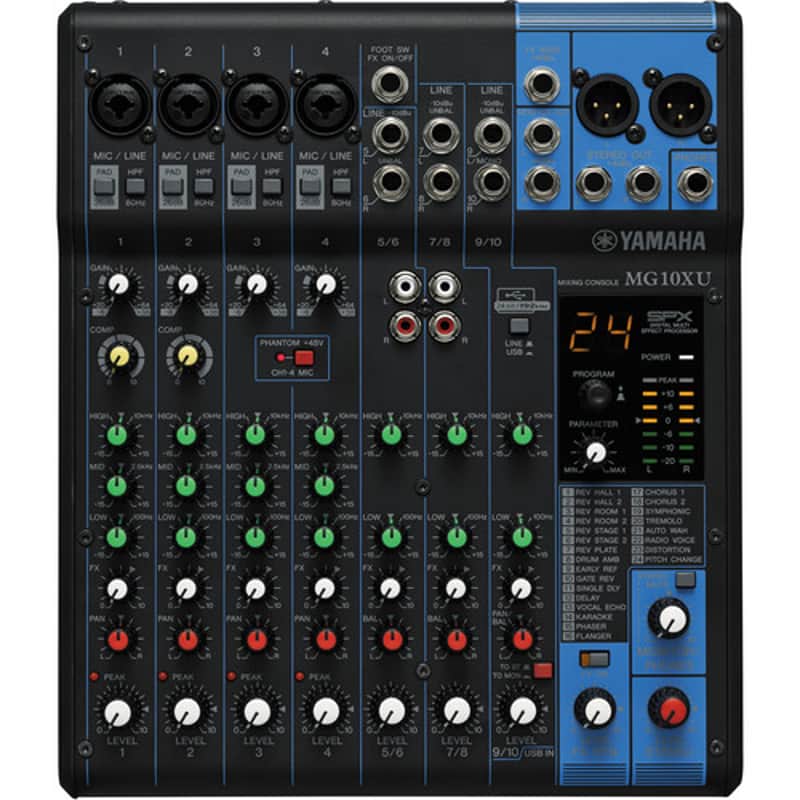

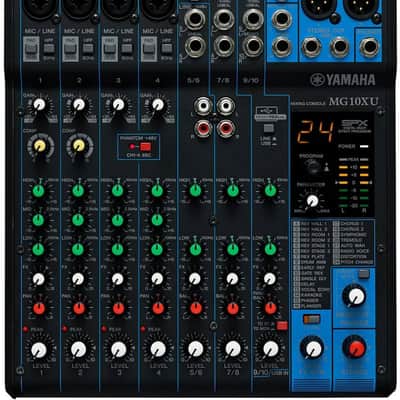

Yamaha MG10XU Description The Yamaha MG10XU is engineered for versatile sound reinforcement and digital audio integration. Its 10 input channels support a wide range of sources, including four mic/line inputs and three stereo line inputs. The acclaimed D-PRE mic preamps ensure low-noise, natural sound with outstanding detail across all sources. Ideal for both live and studio environments, the MG10XU features a 2-in/2-out USB audio interface capable of 24-bit / 192kHz recording, making it a solid choice for podcasters, streamers, and musicians who want to capture or broadcast clean audio directly to their computer or iPad. The SPX effects engine provides 24 editable digital effects, including reverb, delay, chorus, and modulation—perfect for enhancing vocals and instruments in real time. Mono channels include Yamaha’s simple yet effective 1-knob compressors for quick dynamic control, plus PAD switches for handling high-level inputs. Housed in a rugged metal chassis and offering phantom power, XLR outputs, and AUX send/return capability, the MG10XU balances portability and professional functionality. Model Features

• 10 input channels: 4 mono mic/line + 3 stereo line
• D-PRE mic preamps with inverted Darlington circuit
• 1-knob compressors on mono channels
• SPX effects processor with 24 programs
• USB audio interface (24-bit / 192kHz, 2-in/2-out)
• Compatible with iPad (via Camera Connection Kit)
• Includes Cubase AI DAW software (download version)
• +48V phantom power and PAD switches on mono inputs
• XLR balanced main outputs and AUX send
• Durable metal construction

Model Specifications

• Input Channels: 4 Mic / 10 Line (4 mono + 3 stereo)
• Bus: 1 Stereo
• AUX: 1 (with FX send)
• Phantom Power: +48V
• USB Audio: 2-in / 2-out, 24-bit / 192kHz
• Effects: 24 SPX programs
• Dimensions: 9.6 x 2.8 x 11.6 in (244 x 71 x 294 mm)
• Weight: 4.63 lb (2.1 kg)

What's In The Box

• Yamaha MG10XU mixer
• Power adapter
• Cubase AI download information
• Owner's manual
