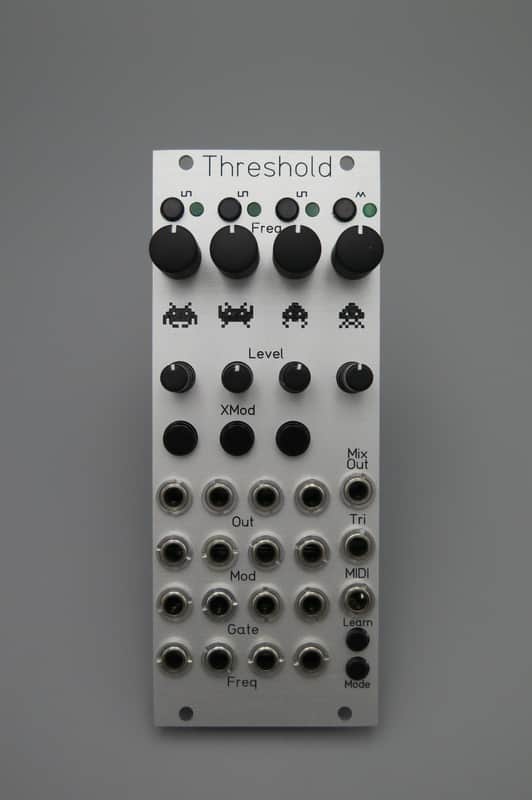

Threshold - 10HP Edges with integrated midi expander - natural aluminum

10HP Edges Clone with integrated midi interface and PSImidi which allows any TRS midi cable to be used.

MIDI Functionality

MIDI Learn: Press this button and send a midi note. The device will use that channel as the base channel

MIDI Mode: This button cycles between two operational modes.
1. 4 single voices trigger on 4 midi channels starting on the base MIDI channel (i.e. base channel is channel 2 so the voices are mapped over channels 2, 3, 4, 5)
2. Simple Poly mode where each voice plays on a different note on the same midi channel

Note about MIDI and Gating: The gate is normalled OPEN by the Gate 1 input. This is by design but will also force the gate open when the device is triggered by midi. Placing a dummy jack will break the open normal the gate will trigger via MIDI normally

Please direct any and all support questions to Mi Synth Works, NOT MUTABLE INSTRUMENTS. This is NOT an Mutable Product and under no circumstance do you need to bother them with anything related to it.

Please Note:
This device uses PSIpower and has NO POLAIRTY on the power header, it can be installed EITHER WAY

 provided by Jakplugg under creative commons  license.

 provided by Mutable Instruments under creative commons  license.
