• Great Mic for modern pop vocals.

• All-Tube triode design utilizes 12AX7 or 7025EH

• -10 dB switchable pad

• Frequency response: 10Hz-30KHz

• Sensitivity: 17mV/Pa

• Noise typically -120dB EIN

• Max SPL: 150dB

• Output Impedance: 250 Ohms

• Weight: 2.25 lbs (mic)

• Size: 4.5" x 9.7" x 4.5" (mic)

• Shipping weight: 15 lbs

POWER SUPPLY

• Universal MANLEY POWER™ Switch Mode Power Supply; works worldwide

• Power Consumption: 8 Watts

• Weight / Dims: 2.35 lbs / 5 x 3.3 x 9.3” (with handle)

• Fuse: 250VAC 2A SLO BLO Ceramic - 5mm x 20mm

• Input Voltage: 90VAC to 250VAC (Universal)

• Mains Frequency: 50~60Hz

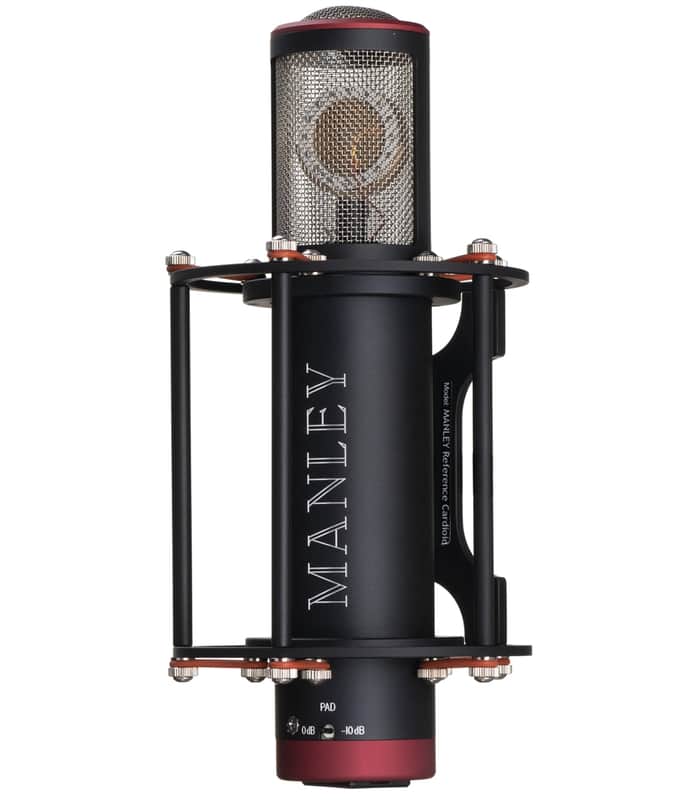

he Manley Labs Reference Cardioid (commonly known as REF-C) is a large-diaphragm tube microphone offering a wide, 10 Hz to 30 kHz frequency response and accurate transient performance without coloration or any perceivable sonic signature. The rich tonal balance and liquid character make this center-fixed cardioid mic an excellent choice for obtaining a very forward, immediate sound when recording acoustic guitars, drum overheads, saxophones, and especially pop vocals and voiceovers—with a "finished" sound right out of the box.

The Reference Cardioid features a 1" gold-sputtered diaphragm that is 6 microns thick based on the vintage U47. It has the ability to withstand sound pressure levels up to 150 dB. The open-weave stainless steel grille allows the capsule to capture signals with zero-loss acoustical transmission, which translates to less dampening of high-frequency content.

The electronics of the Reference Cardioid include two triodes in cascade forming an entire gain-block. The dual-triode 12AX7 tube is easily obtainable and was chosen for its high gain and low noise properties. The audio signal and power connect from the microphone to the filtered B+ power supply via a single 30', 6-pin XLR cable. The audio output exits the power supply via 3-pin XLR through a custom-wound output transformer, which employs nickel laminations and "humbucking" bi-filar windings, all enclosed in mu-metal.

The REF-C features a proprietary suspension system that is attached to the black & red anodized casing. The capsule itself is mounted to a neoprene-rubber shockmount to prevent unwanted vibrations from being picked up by the diaphragm. Handmade in the USA, the microphone ships with a leather capsule cover, locking carrying case, and IEC power cable.

REF-C Modern Tube Vocal Microphone 1" diaphragm Open weave stainless steel grille for zero-loss acoustical transmission Neoprene-rubber shockmount All-tube design with 12AX7 dual triode -10 dB pad 150 dB maximum SPL Filtered B+, regulated heater voltages 30' 6-pin XLR power cable Hand-wound output transformer with nickel laminations and mu-metal casing Precision suspension system Leather capsule protector Locking carrying case
