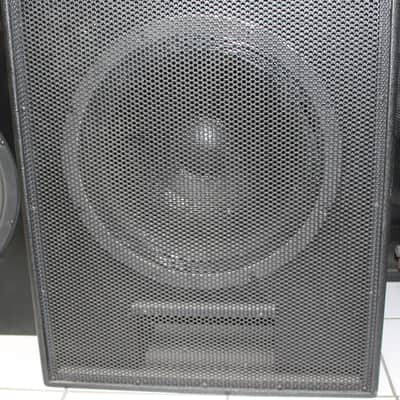

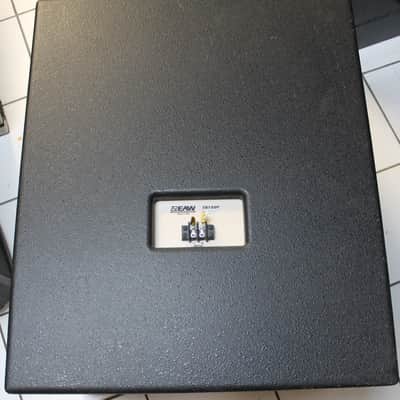

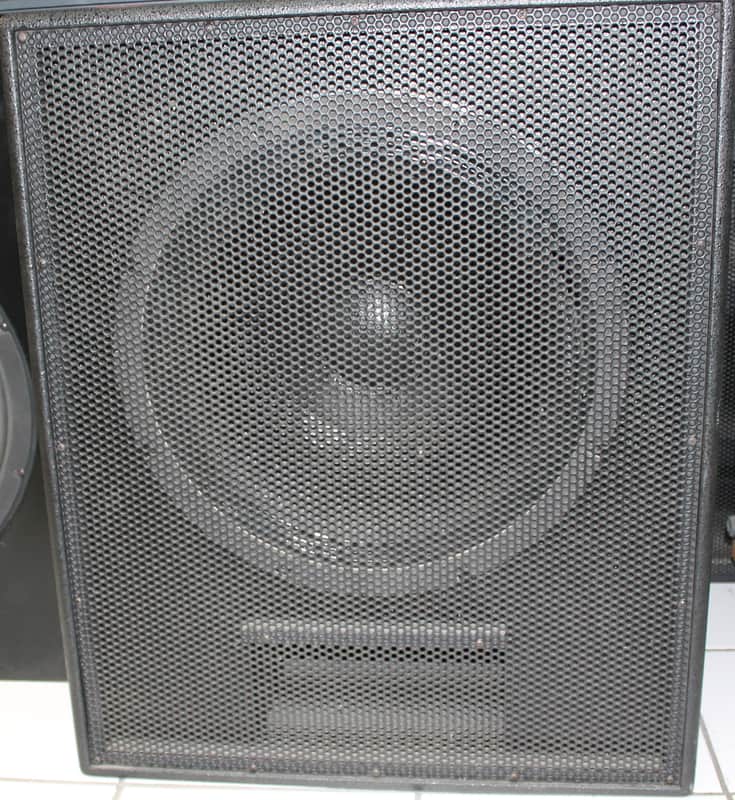

For sale EAW SB 180P 18" subwoofer . Exterior shows signs of wear. Enclosure was tested and is working as it should.
A dedicated subwoofer system with an 18-in transducer in a compact vented rectangular enclosure. Available in a portable version (‘R’ with handles and NL4 connectors) or a permanent installation version (‘P’ with mounting/suspension points). APPLICATIONS The SB180 provides high output sub bass response in a compact enclosure. Tuned enclosure venting extends LF response and minimizes driver strain. MX Series processors extend LF response and safeguard against cone excursion damage. Comprehensive mounting/suspension points. Applications include:
The sub bass loudspeaker systems shall incorporate one 18- in LF transducer mounted in a vented enclosure tuned for optimum low frequency response. System frequency response shall vary no more than ±3 dB from 27 Hz to 250 Hz measured on axis with appropriate signal processing. The loudspeaker shall produce a Sound Pressure Level (SPL) of 96 dB SPL on axis at 1 meter with a power input of 1 Watt, and shall be capable of producing a peak output of 132 SPL on axis at 1 meter. The loudspeaker shall handle 1000 Watts of amplifier power (AES Standard) and shall have a nominal impedance of 8 Ohms. The loudspeaker enclosure shall be rectangular in shape. It shall be constructed of 1/2-in thickness void-free cross-grain laminated Baltic birch plywood and shall employ extensive internal bracing. It shall be finished in black catalyzed polyurethane. Input connectors shall be 2-terminal barrier strip. A total of sixteen 3/8"-16 threaded mounting/suspension points (4 each top, bottom, sides) shall be provided. The front of the loudspeaker shall be covered with a vinyl coated perforated steel grille. The sub bass loudspeaker shall be the EAW model SB180P
WILL SHIP VIA FREIGHT TO NEAREST FREIGHT TERMINAL
A dedicated subwoofer system with an 18-in transducer in a compact vented rectangular enclosure. Available in a portable version (‘R’ with handles and NL4 connectors) or a permanent installation version (‘P’ with mounting/suspension points). APPLICATIONS The SB180 provides high output sub bass response in a compact enclosure. Tuned enclosure venting extends LF response and minimizes driver strain. MX Series processors extend LF response and safeguard against cone excursion damage. Comprehensive mounting/suspension points. Applications include:
- Band PA
- Ballroom Events
- MultiMedia Boardrooms
- Restaurants
- Small Retail Spaces
The sub bass loudspeaker systems shall incorporate one 18- in LF transducer mounted in a vented enclosure tuned for optimum low frequency response. System frequency response shall vary no more than ±3 dB from 27 Hz to 250 Hz measured on axis with appropriate signal processing. The loudspeaker shall produce a Sound Pressure Level (SPL) of 96 dB SPL on axis at 1 meter with a power input of 1 Watt, and shall be capable of producing a peak output of 132 SPL on axis at 1 meter. The loudspeaker shall handle 1000 Watts of amplifier power (AES Standard) and shall have a nominal impedance of 8 Ohms. The loudspeaker enclosure shall be rectangular in shape. It shall be constructed of 1/2-in thickness void-free cross-grain laminated Baltic birch plywood and shall employ extensive internal bracing. It shall be finished in black catalyzed polyurethane. Input connectors shall be 2-terminal barrier strip. A total of sixteen 3/8"-16 threaded mounting/suspension points (4 each top, bottom, sides) shall be provided. The front of the loudspeaker shall be covered with a vinyl coated perforated steel grille. The sub bass loudspeaker shall be the EAW model SB180P
WILL SHIP VIA FREIGHT TO NEAREST FREIGHT TERMINAL
| Listed | 9 years ago |
|---|---|
| Condition | Very Good (Used) Very Good items may show a few slight marks or scratches but are fully functional and in overall great shape.Learn more |
| Brand | |
| Model |
|
| Categories | |
| Made In |
|
