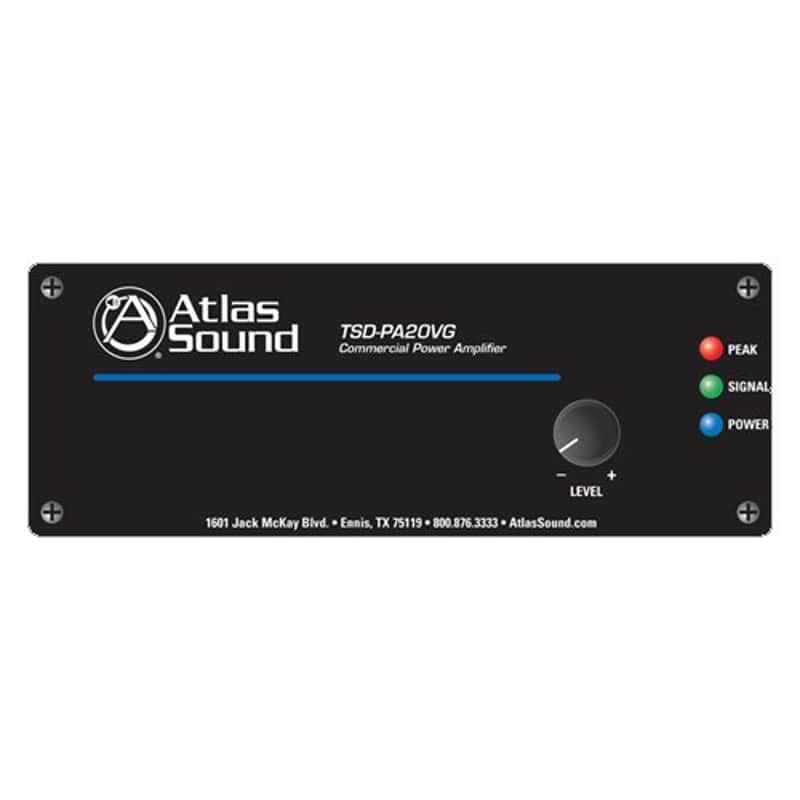

Atlas IED TSD-PA20VG-RST-01 Mono Amplifier, 20W
This listing has ended
See similar gear from other Reverb sellers
Our users rate Reverb
The TSD-PA20VG is a cost effective mono amplifier for 4O and distributed constant voltage speaker systems. Applications include hallways and classrooms. The TSD-PA20VG is also a cost effective alternative for small projector systems as it can be used with as many as (16) 25/70/100V ceiling speakers (tapped at 1W each), plus the extremely small footprint allows for easy mounting. For sound masking applications the TSD-PA20VG has the capacity to drive up to 34 masking speakers tapped at .5W each on a 70.7V line. Output is gain controlled from a potentiometer on the front panel with removable knob.
This is a Restock item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.
Atlas Sound TSD-PA20VG Features:- 4O/25V/70.7V/100V Output
- One (1) Balanced Input
- Removable Level Control with Set-It-And-Forget-It Security Cover
- Input Signal and Peak Indicator LEDs
- Cable Management System
- Removable Phoenix Style I/O Connectors
- Meets Most Energy Standards
- Compact Chassis Design
- Power Output:
- 20W @ 4O
- 10W @8O
- 20W @ 25V/70V/100V Loads
- Line Input Level: 500mV (-6dBV) Balanced
- Frequency Response: 40Hz - 20kHz (+/-3dB)
- Signal to Noise Ratio: 78dBV
- Dimensions:
- Height 1.5" (3.81 cm)
- Width 4" (10.16 cm)
- Depth 5.2" (13.2 cm)
- Power Requirments: 24VDC
- Idle Current: 50mA
- Average Current: 160mA
- Max Current: 490mA
| Condition | B-Stock (Used) B-Stock items are sold by an authorized dealer or original builder, but have been opened, blemished, or used in some manner.Learn more |
|---|---|
