ZETHUS-118S210X4 | ZETHUS Series Line Array Speaker System w/ 1 x 18" Subwoofer, 4 x Dual 10” Loudspeaker, Black for Live Sound, Clubs, Bars, Churches and Schools

The Sound Town ZETHUS Series ZETHUS-118S210X4 combo set includes:

• (1) 18" passive line array subwoofer
• (4) dual 10" passive line array PA speakers
• (1) flying frame

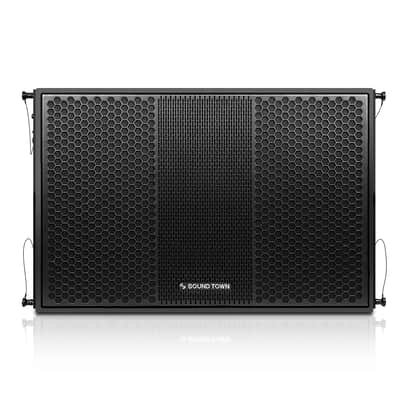

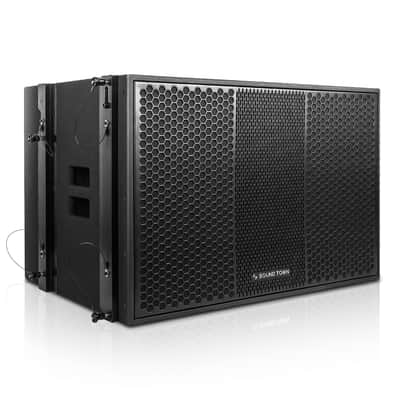

The ZETHUS-118S is a 18" passive subwoofer with extraordinary 800W RMS, 1600W peak (8-ohm) power handling capability and delivers rich and solid low-frequency reinforcement. The ZETHUS-210B is a lightweight and compact passive line array speaker which delivers superior sound quality with two 10" woofers, two 1.4" titanium compression drivers and 550W RMS, 1100W program (16-Ohm) power handling capability.

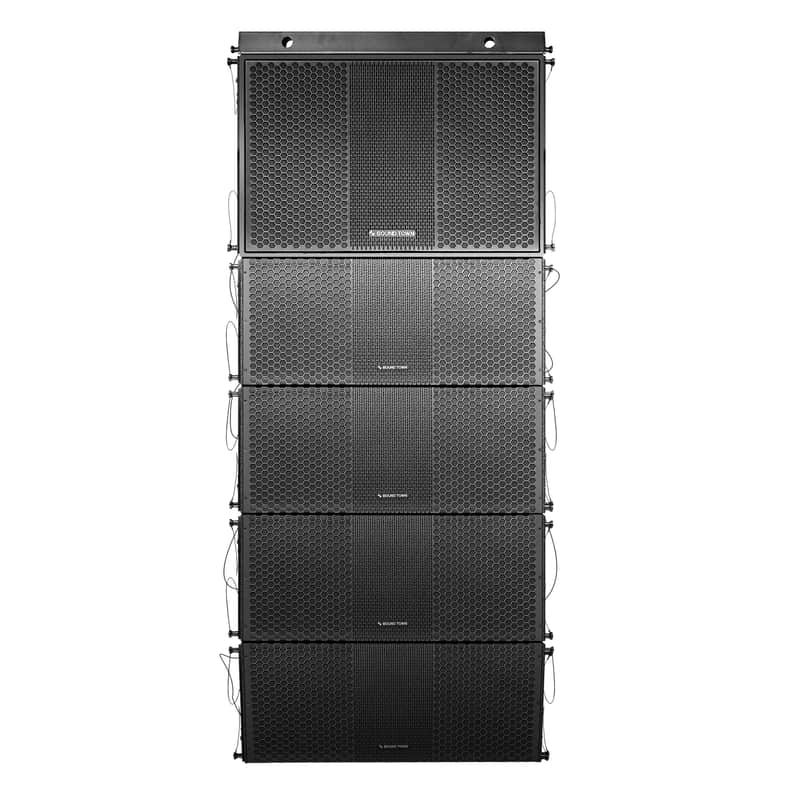

Four ZETHUS-210B line array speakers can be quickly stacked and mounted to the ZETHUS-118S subwoofer and secured with attached mounting points and heavy-duty metal handles on the rear panels. Combined together, they deliver accurate and immersive sound performance at earth shaking volume. With the mounting frame, the speaker system can be flown for optimum coverage. Ideal for a wide range of installation applications ranging from live entertainment, clubs to churches or other venues where a line array speaker system is desired.

FEATURES

• This speaker system includes 1 x ZETHUS-118S passive line array subwoofer and 4 x ZETHUS-210B passive line array speakers and 1 x ZETHUS-210FF flying frame
• The ZETHUS-118S is a 18" passive subwoofer with extraordinary 800W RMS, 1600W peak (8-ohm) power handling capability and delivers rich and solid low-frequency reinforcement
• The ZETHUS-210B is a lightweight and compact passive line array speaker which delivers superior sound quality with two 10" woofers, two 1.4" titanium compression drivers and 550W RMS, 2200W peak (16-Ohm) power handling capability
• Four ZETHUS-210B line array speakers can be quickly stacked and mounted to the ZETHUS-118S subwoofer and secured with attached mounting points and heavy-duty metal handles on the rear panels. Altogether they deliver accurate and immersive sound performance at earth shaking volume
• With the mounting frame, the speaker system can be flown for optimum coverage. Ideal for a wide range of installation applications ranging from live entertainment, clubs to churches or other venues where a line array speaker system is desired

SPECIFICATIONS

Specifications

Model   Active/Passive Passive Passive Frequency Range 32 Hz - 180 Hz 52 Hz - 19 kHz Frequency Response 35 Hz - 180 Hz 58 Hz - 19 kHz Sensitivity 102 dB (Passive) 103 dB (Passive) SPL Max 131 dB 130 dB Dispersion -- 120º x 15º (H x V) Configuration 18" passive line array subwoofer Compact dual 10" passive full-range line array loudspeaker Transducer LF: 1 x 18" woofer LF: 2 x 10", HF: 2 x 1.4" diaphragm Voice Coil 4.5" 2.5" Magnet 173 oz 50 oz Impedance 8Ω Nominal 16Ω Nominal (Bi-Amp) Power Handling 800W RMS / 1600W Peak 550W RMS / 2200W Peak Input / Output
2 x 4 Pin Speakon 2 x 4 Pin Speakon Cabinet Construction High-grade 100% birch plywood High-grade 100% birch plywood Flying/Mounting Bracket ZETHUS-210FF, compact line array aluminum hardware / flying frame ZETHUS-210FF, compact line array aluminum hardware / flying frame Finish Texture coating Texture coating Grill & Rigging Component Steel with anti-corrosion coat Steel with anti-corrosion coat Crossover Parts# -- High Frequency Driver Parts# -- Low Frequency Woofer Parts#

Dimension & Weight

Model
Product Width (in.) 30.3" 30.3" 30.3" Product Height (in.) 21.7" 12.6" 3.7" Product Depth (in.) 21.7" 16.5" 24.8" Product Weight (lb.) 108.0 lbs 65.0 lbs 41.8 lbs Package Width (in.) 33.1" 37.6" 31.7" Package Height (in.) 23.2" 16.3" 4.3" Package Depth (in.) 24.4" 19.6" 26.2" Package Weight (lb.) 114.8 lbs 69.0 lbs 44.9 lbs

Warranty/Certifications

Manufacturer Warranty 1 Year

FAQ

What processor and amp should I use to pair with the ZETHUS-118S210X4?

For ZETHUS-118S210X4, it is recommended to use:
• Processor:
• Amplifier: 2 x : 1 x ZETHUS-118S subwoofer per channel, 2 x ZETHUS-210B loudspeakers per channel.
