WAVEFORMS

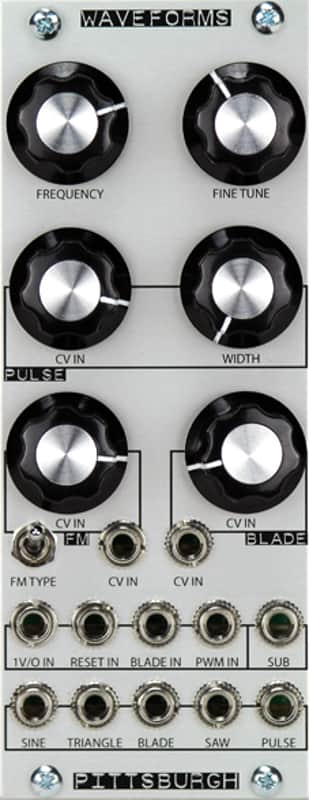

Complex Analog Oscillator The Waveforms module offers a full complement of standard waveforms including sine, triangle, saw, and pulse waves in addition to a sub octave generator and a unique modulatable blade wave. The oscillator offers 5 octaves of 1 volt per octave tracking, and a frequency range starting as low as 7 seconds per cycle, allowing it to double as an LFO. Additional features include oscillator reset for hard syncing, attenuated linear or exponential FM input, pulse width, and pulse width CV input.

• Excellent Logarithmic Conformance
• Temperature Compensated 1 Volt Per Octave Operation
• Multiple Simultaneous Waveform Outputs
• Sawtooth Wave Based Oscillator Circuit
• Unique Modulatable Blade Waveform
• Modulatable Square Wave Sub Oscillator
• Linear and Exponential Frequency Modulation
• PWM Input: 5% to 95%
• Hard Sync Input
• LFO Below Audio Frequency Operation

Specs:

• power: 70 mA +12V, 65 mA -12V, 0 mA 5V
• depth: 37 mm
• width: 10HP
