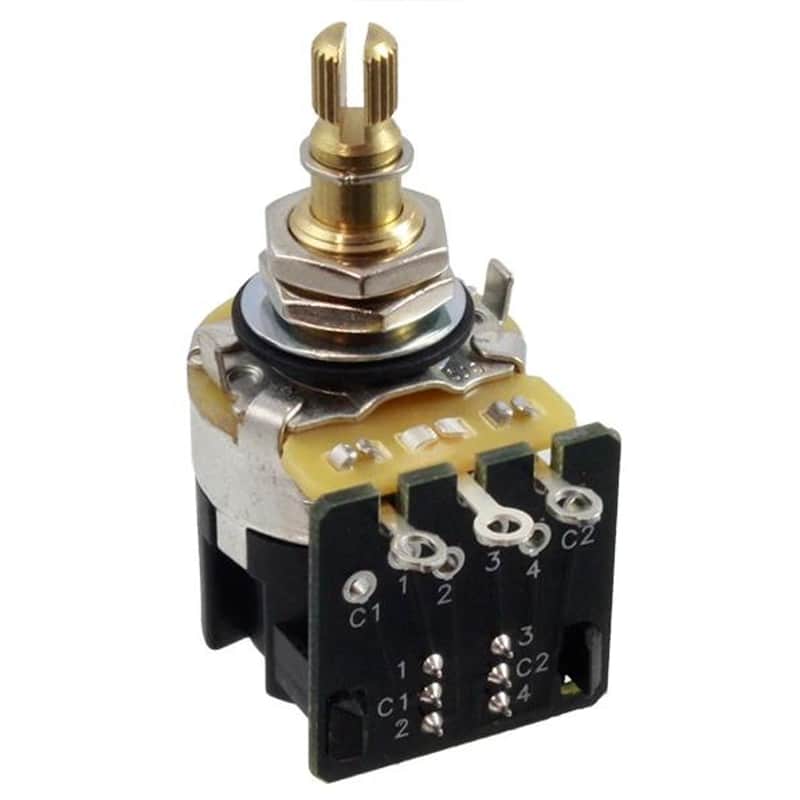

CTS 500K Push Pull Pot DPDT Short Shaft 3/8" Shaft Audio Taper
This is a CTS Push Pull pot, double-pole/double-throw (DPDT) for coil tapping, phase switching, and series-parallel switching - if you need to do it to a set of pickup coils, this will enable it. These are 3/8" short shaft for thin top solid bodies or through pickguards. requires a 3/8" diameter hole. Basically the same size as a CTS short shaft pot, with an extra 20mm added on to the bottom for the switch mechanism.
Electronically equivalent to commonly available 2-rows-of-3 terminal DPDT push-pulls, but that's where the similarities end. These are heavy duty, completely sealed, use a unique circuit board layout in lieu of fragile terminals, and have rugged brass shafts. These are for US spec knobs with 7/32" holes.
CTS are the de-facto standard in guitar pots, best quality out there.
This is a CTS Push Pull pot, double-pole/double-throw (DPDT) for coil tapping, phase switching, and series-parallel switching - if you need to do it to a set of pickup coils, this will enable it. These are 3/8" short shaft for thin top solid bodies or through pickguards. requires a 3/8" diameter hole. Basically the same size as a CTS short shaft pot, with an extra 20mm added on to the bottom for the switch mechanism.
Electronically equivalent to commonly available 2-rows-of-3 terminal DPDT push-pulls, but that's where the similarities end. These are heavy duty, completely sealed, use a unique circuit board layout in lieu of fragile terminals, and have rugged brass shafts. These are for US spec knobs with 7/32" holes.
CTS are the de-facto standard in guitar pots, best quality out there.
This item is sold As-Described
This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.
| Condition | Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more |
|---|---|
| Brand | |
| Model |
|
| Finish |
|
