Violet Design VIN 27

VIN-series vintage standard mount changeable capsule heads for "The Global Pre" You can also use VIN-heads with CVM563, RFT CM7151 and other bottle type microphones.

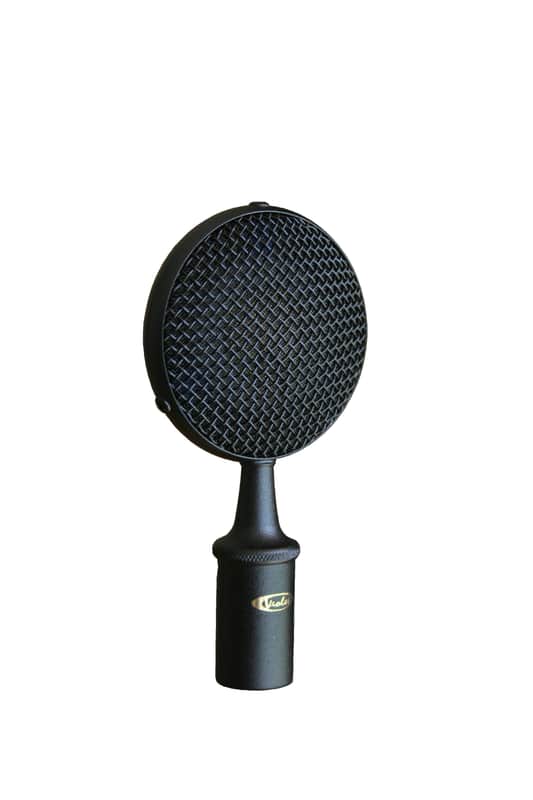

VIN27 Cardioid, natural sounding, large diaphragm capsule head.

Specifications

Transducer type

electrostatic

Frequency range

20 Hz to 20 kHz

 Directional of polar pattern

depends of capsule

Output impedance

50 ohms

Rated load impedance

1000 ohms

Suggested load impedance

>250 ohms

Dynamic range of the internal preamplifier

130 dB

Phantom powering voltage on pins #2 & #3 of XLR

+48 V (+/-4 V)

Current consumption

<2 mA

Output connector

3-pin XLR male, gold plated contacts

Dimensions

60 mm height, 60 mm diameter, weight 250 g
